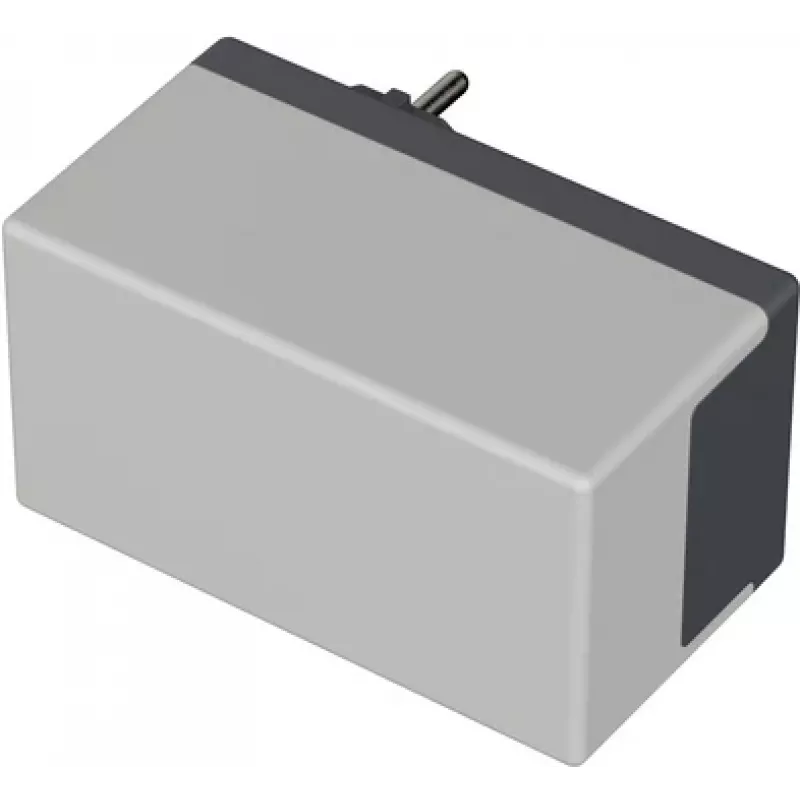

Carcasa electrónica Bopla Combi-Case CC 120 x 65 x 66 mm ABS gris claro/gris oscuro 43435004

The Bopla Combi-Case CC enclosure offers a two-tone light grey body and dark grey lid, providing a distinct visual contrast that simplifies device identification in multi-unit installations. Its 120 x 65 x 66 mm footprint accommodates compact electronics while the ABS construction keeps weight low without sacrificing rigidity.

Highlights

• Two-tone design: light grey base (RAL 7035) and dark grey lid (RAL 7016)
• ABS material for impact resistance and easy machining
• Recessed lid area for membrane keypads or labels
• Integrated PCB mounting bosses for secure board placement
• Four self-tapping screws for reliable lid fastening

In daily use

The enclosure suits control units, measurement technology, and IoT devices. The recessed lid surface protects membrane keypads from accidental activation while allowing custom labeling. Internal bosses simplify PCB mounting, reducing assembly time. The IP40 rating provides basic protection against solid objects, suitable for indoor environments.

Full specifications

• External dimensions: 120 mm (L) x 65 mm (W) x 66 mm (H)
• Material: ABS (UL 94 HB flammability rating)
• Colours: light grey body, dark grey lid
• Protection class: IP40
• Operating temperature: -20 °C to +80 °C
• Lid fastening: 4 self-tapping screws
• Number of components: 2 (base, lid)

Final note

A practical enclosure for compact electronic projects, offering a professional appearance and straightforward assembly.
