Cargador Ansmann APS 1500 Universal Negro

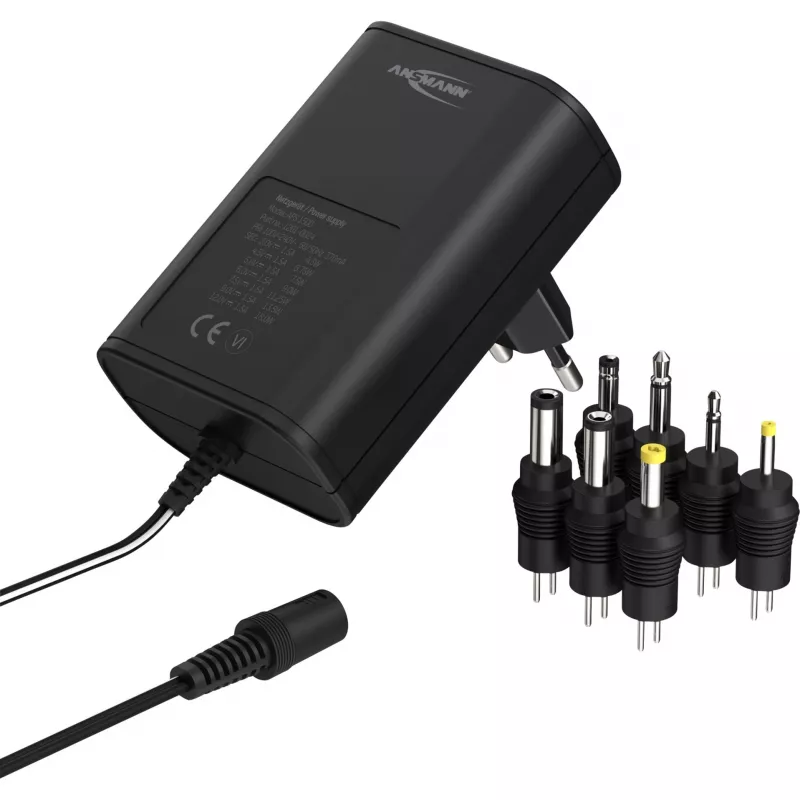

The Ansmann APS 1500 Universal Black is a 3–12 V DC universal power supply designed to power many small electrical devices. It accepts 100–240 V AC input for use in different regions and comes with a seven-part interchangeable plug set including common jacks and barrel connectors to ensure compatibility with handheld computers, digital cameras, measuring devices, MP3 players, CD players and similar electronics. The unit is voltage-stabilized, short-circuit proof and delivers up to 1.5 A (18 W).

Advantages

The APS 1500 offers adjustable output voltage via a rotary switch for fine tuning between 3 and 12 V, a compact black indoor design suited to home or office environments, and a comprehensive set of interchangeable plugs to match a wide range of device inputs. Built-in short-circuit protection and voltage stabilization provide safe and consistent power delivery within the specified 18 W limit.

Suitable for

• Handheld computers and PDAs
• Digital cameras and camcorders
• Measuring instruments and test equipment
• Portable audio devices (MP3 players, CD players)
• Other small DC-powered electronics that accept 3–12 V input

Key specifications

• Input voltage: 100–240 V AC
• Output voltage: adjustable 3–12 V DC
• Maximum current: 1.5 A
• Maximum power: 18 W
• Colour: Black

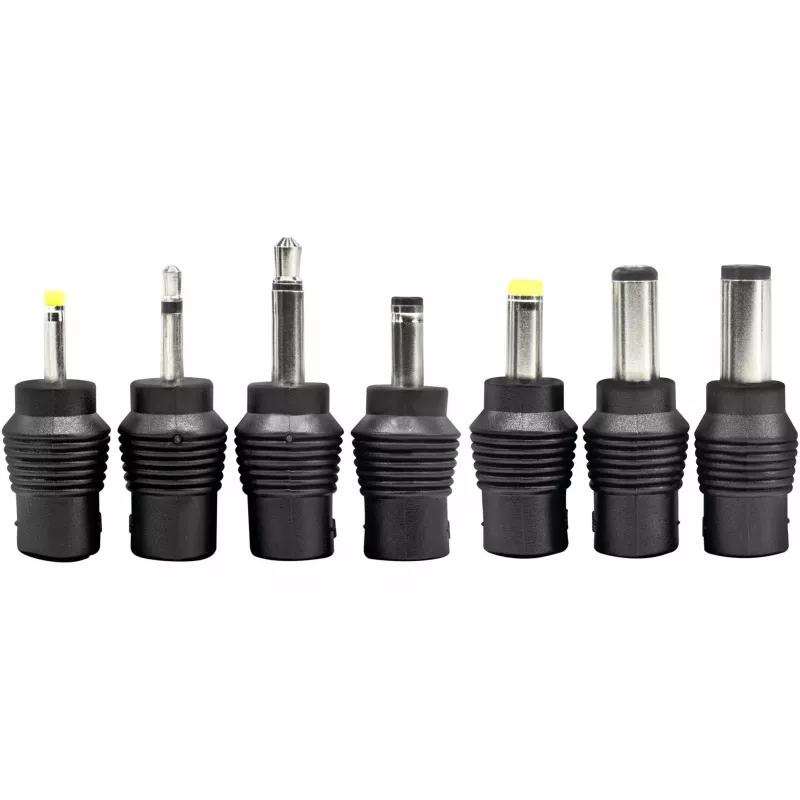

• Included: seven-part interchangeable plug set (various jacks and barrel connectors)

How to use

Select the plug tip from the included set that matches the device's input connector and attach it to the power supply lead. Plug the device connector into the device, connect the adapter to the AC mains (100–240 V), and set the required DC output voltage with the rotary switch on the back. Verify polarity and voltage required by the device before powering on. The APS 1500 will supply stabilized DC power up to its 18 W rating; if a device draws more than 1.5 A, do not use this adapter.

Recommendations

Use the APS 1500 indoors only and keep it in a dry, well-ventilated location. Confirm device voltage and polarity before connecting. Replace lost or damaged adapter tips only with compatible parts to maintain safe operation.
