Fuente de alimentación Ansmann APS 2250L interior negra

The Ansmann APS 2250L is a universal indoor power adapter that delivers an adjustable DC output between 5 and 15 V to operate a wide range of small electronic devices. It includes a set of seven interchangeable input plugs and common barrel connectors for broad compatibility. The adapter features a rotary switch for selecting the output voltage and provides short-circuit protection and stabilized voltage for reliable use with devices drawing up to 2.25 A (27 W).

Advantages

The APS 2250L supports a wide output range (5–15 V) and comes with multiple interchangeable plugs to ensure compatibility with many handheld computers, digital cameras, measuring instruments, MP3 and CD players, and other small electronics. The rotary voltage selector simplifies switching between voltages. Built-in short-circuit protection and voltage stabilization enhance device safety during operation.

Suitable for

• Handheld computers and PDAs
• Digital cameras and camcorders
• Measuring instruments and meters
• MP3 players and CD players
• Other small electronic devices requiring 5–15 V DC (≤2.25 A / 27 W)

Key specifications

• Output voltage: adjustable 5–15 V DC
• Maximum output current: 2.25 A
• Maximum output power: 27 W
• Input voltage: 100–240 V AC
• Includes seven-part interchangeable plug set and common barrel connectors
• Colour: Black
• Short-circuit proof and voltage-stabilized

How to use

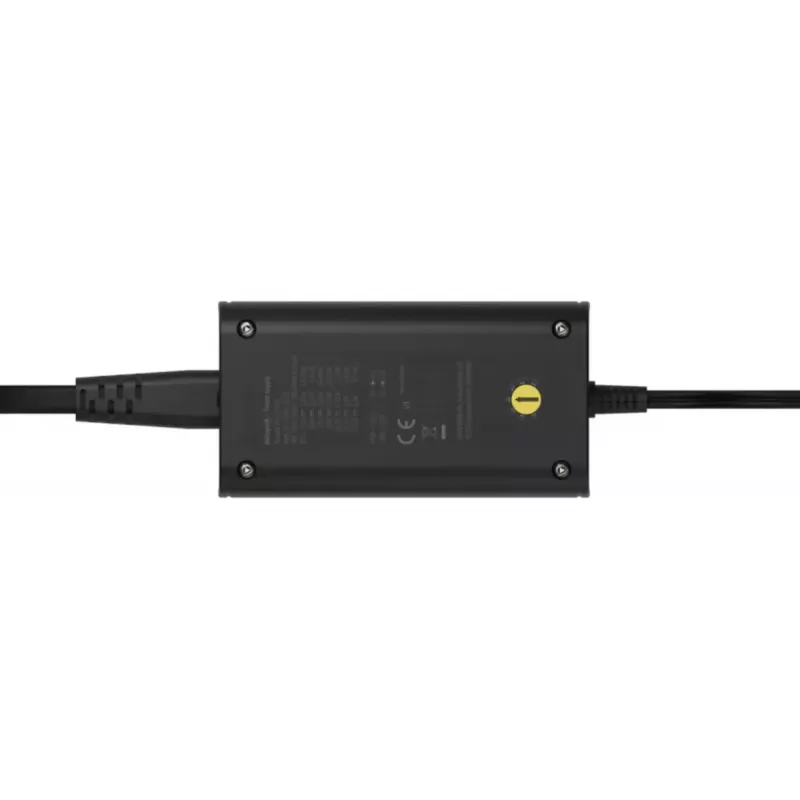

Select and attach the appropriate interchangeable plug or barrel connector that matches your device's input. Plug the adapter into an AC mains outlet (100–240 V). Use the rotary switch on the back of the APS 2250L to set the required DC output voltage between 5 and 15 V. Connect the adapter output to your device and verify correct polarity and voltage before powering on. Do not exceed the maximum load of 2.25 A (27 W).

Recommendations

Before each use, confirm the device's required voltage and polarity. Avoid operating the adapter beyond its rated current and power. If the connector does not fit securely, stop use and select a different included plug to prevent poor contact. Use indoors and keep the unit dry and well ventilated during operation.
