Casete de empalme de fibra óptica Tecline con 12x pigtails OM3 LC/UPC, 2,0 m, multicolor, pack de 12 20500030

This Tecline splice cassette integrates twelve 2.0 m OM3 multimode pigtails with LC/UPC connectors, delivering 2000 MHz·km effective modal bandwidth at 850 nm for high-speed fiber networks.

Overview

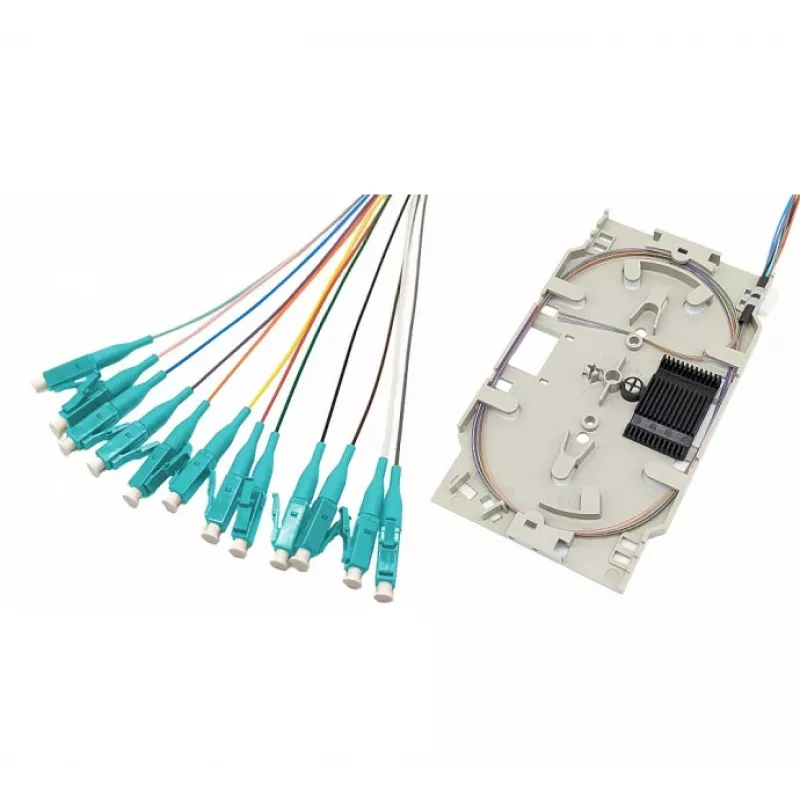

The Tecline 20500030 is a fiber optic splice cassette pre-loaded with 12 colour-coded OM3 pigtails, each terminated with LC/UPC connectors. The pigtails are 2.0 m long and feature 50/125 µm core/cladding diameter with LSZH jackets, suitable for fusion or mechanical splicing in distribution frames and splice boxes.

What stands out

• 12 OM3 pigtails with LC/UPC connectors for high-density splicing
• Colour-coded pigtails per EIA/TIA-598-C for easy identification
• Supports 850 nm and 1300 nm wavelengths with high modal bandwidth
• LSZH jacket material for low smoke and zero halogen emissions

Technical details

• Fiber type: Multimode OM3, 50/125 µm
• Number of pigtails: 12
• Connector: LC/UPC
• Pigtail length: 2.0 m
• Effective modal bandwidth at 850 nm: 2000 MHz·km
• Overfilled launch bandwidth at 850 nm: 1500 MHz·km
• Overfilled launch bandwidth at 1300 nm: 500 MHz·km
• Jacket material: LSZH
• Compatibility: Standard fiber optic distribution frames and splice boxes

Our verdict

A reliable splice cassette for OM3 multimode installations, offering colour-coded pigtails and high bandwidth performance in a compact form factor.
