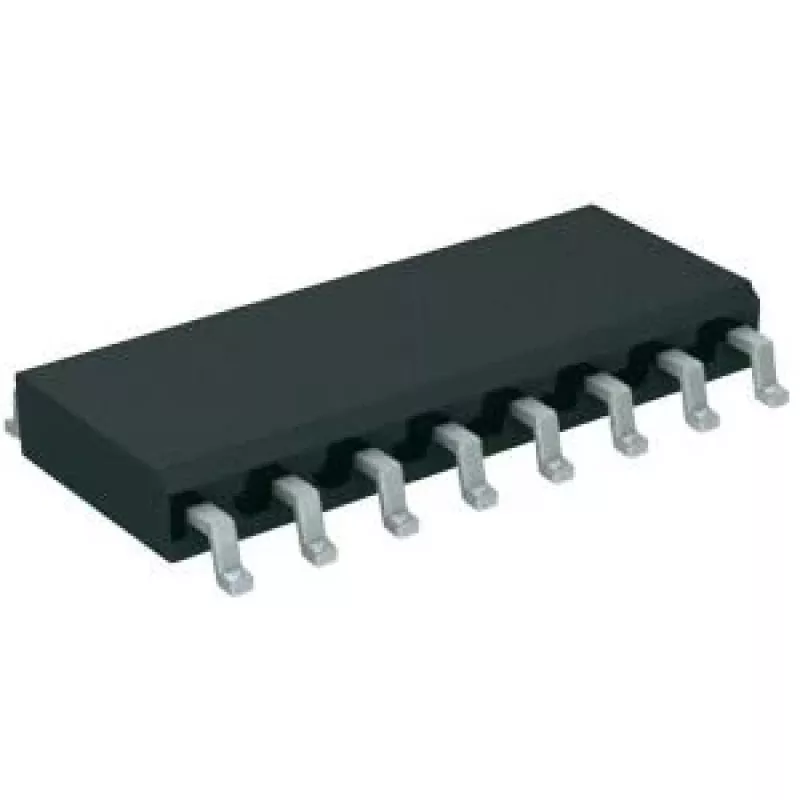

CI amplificador de instrumentación/operacional Texas Instruments INA103KU — carcasa SOIC-16, amplificador de instrumentación de precisión

Texas Instruments INA103KU is a precision instrumentation/operational amplifier in an SOIC-16 package designed to provide accurate differential signal amplification with matched input stages and low offset. The device is intended for use where reliable, low-drift amplification of small sensor or transducer signals is required, offering a predictable front-end for data acquisition and precision measurement circuits in industrial and laboratory environments.

Advantages

The INA103KU offers precise differential amplification with well-matched input stages to minimize common-mode errors and deliver consistent gain. Its low input offset and stable performance over temperature make it suitable for measurement tasks requiring high accuracy. The SOIC-16 package supports straightforward PCB assembly and reliable mechanical mounting in conventional surface-mount designs.

Key specifications

• Topology: precision instrumentation amplifier with matched input stages
• Package type: SOIC-16 surface-mount package
• Performance: low input offset voltage for accurate measurements
• Application areas: sensor signal conditioning, data acquisition front-ends, precision amplification
• Typical operating environments: industrial and laboratory measurement systems

How to use

Place the INA103KU on the PCB following recommended footprint guidelines for SOIC-16 packages and provide appropriate power supply decoupling close to the device. Configure the amplifier as an instrumentation stage according to the required gain and common-mode range, using external resistors as specified in standard instrumentation amplifier topologies. Route input traces carefully to minimize noise and ensure the inputs are referenced correctly to the measurement source. Verify thermal conditions and ensure the device operates within its specified supply and temperature ranges for stable performance.

Recommendations

For optimal measurement accuracy, use low-noise precision resistors for any external gain-setting network, implement local supply bypass capacitors, and keep input wiring short and shielded where possible. Validate gain and offset in-circuit and calibrate the front-end in the final system if tight accuracy is required.
