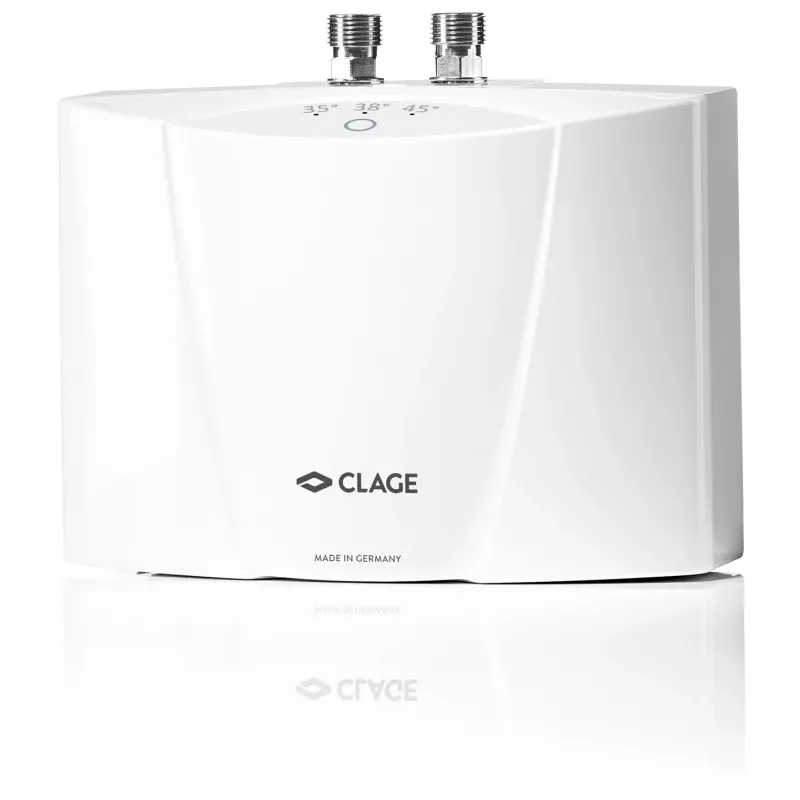

CLAGE MCX 7 Calentador de agua instantáneo - horizontal - sistema solo boiler - interior - blanco

The CLAGE MCX 7 is a compact, horizontal instantaneous water heater designed for under-sink installation. It provides on-demand hot water for hand wash basins and kitchen sinks, featuring a bare wire heating system for efficient performance. This model operates as a solo boiler system without a tank, ensuring immediate hot water supply.

Advantages

Energy-efficient with class A rating, electronic control for precise temperature settings, and a compact horizontal design that fits easily under sinks. The LED display and safety features like overheat protection provide user-friendly operation and peace of mind.

Suitable for

• Hand wash basins in bathrooms
• Kitchen sinks with limited hot water demand
• Under-sink installations requiring a pressure-resistant unit

Key specifications

• Power Output: 6.5 kW
• Voltage: 230 V
• Rated Current: 28.3 A
• Energy Efficiency Class: A
• Temperature Settings: 35°C, 38°C, 45°C, Comfort
• Max Flow Rate: 5 L/min
• Installation Type: Under-sink, Pressure-resistant
• Control Type: Electronic
• Water Connection: G 3/8"
• Protection Class: IP24
• Heating System: Bare wire heating system
• Color: White
• Mounting Orientation: Horizontal
• Minimum Water Pressure: 0.2 MPa (2 bar)
• Maximum Water Pressure: 1 MPa (10 bar)
• Display Type: LED
• Safety Features: Electronic safety cut-off

Recommendations

For optimal performance, ensure the water pressure is between 2 and 10 bar. This unit is ideal for point-of-use hot water needs in residential or light commercial settings.
