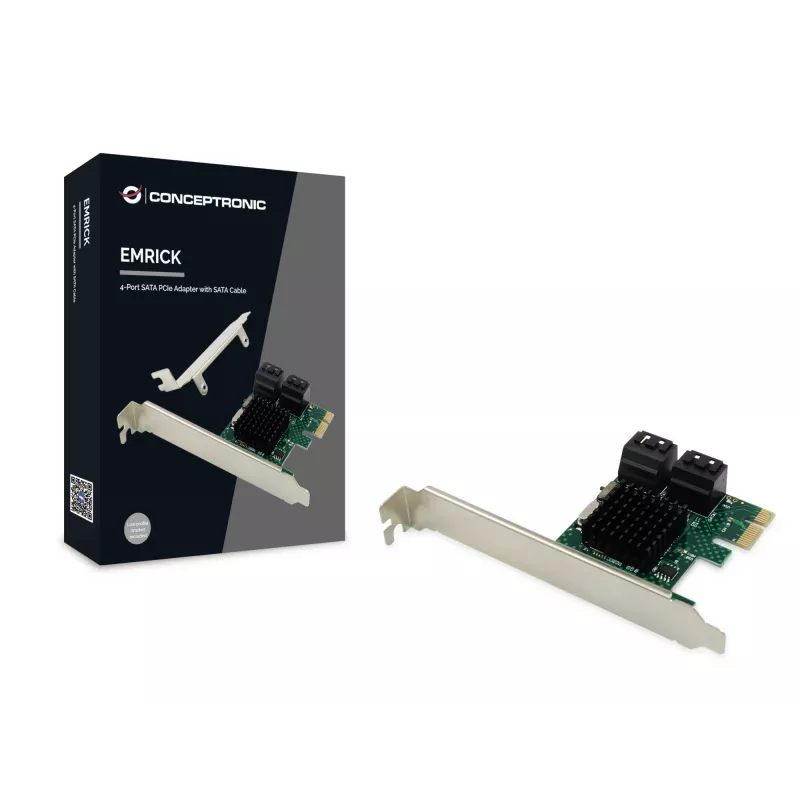

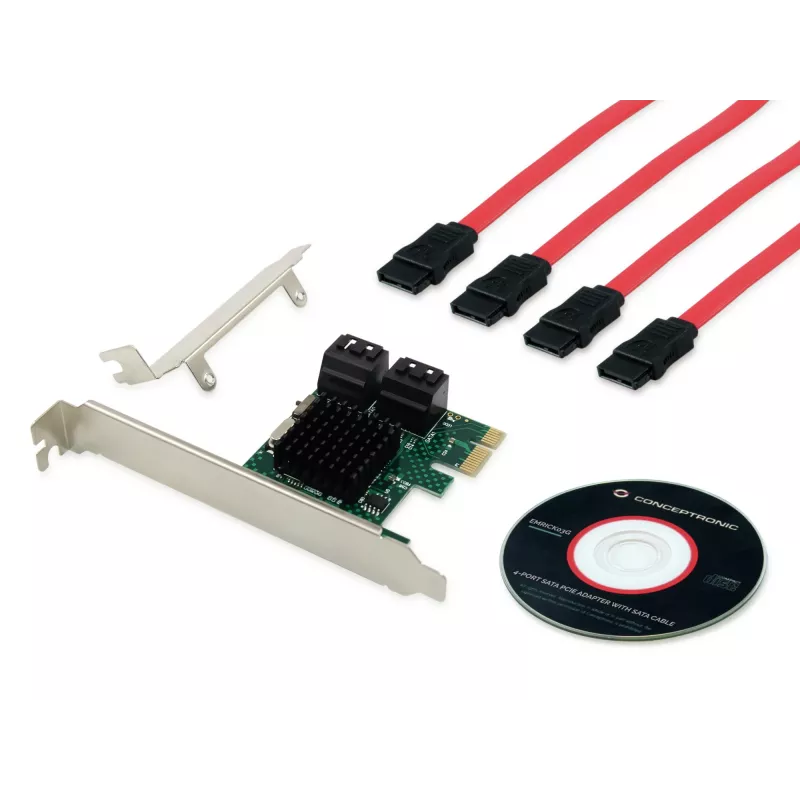

Conceptronic EMRICK adaptador SATA PCIe de 4 puertos con cable SATA

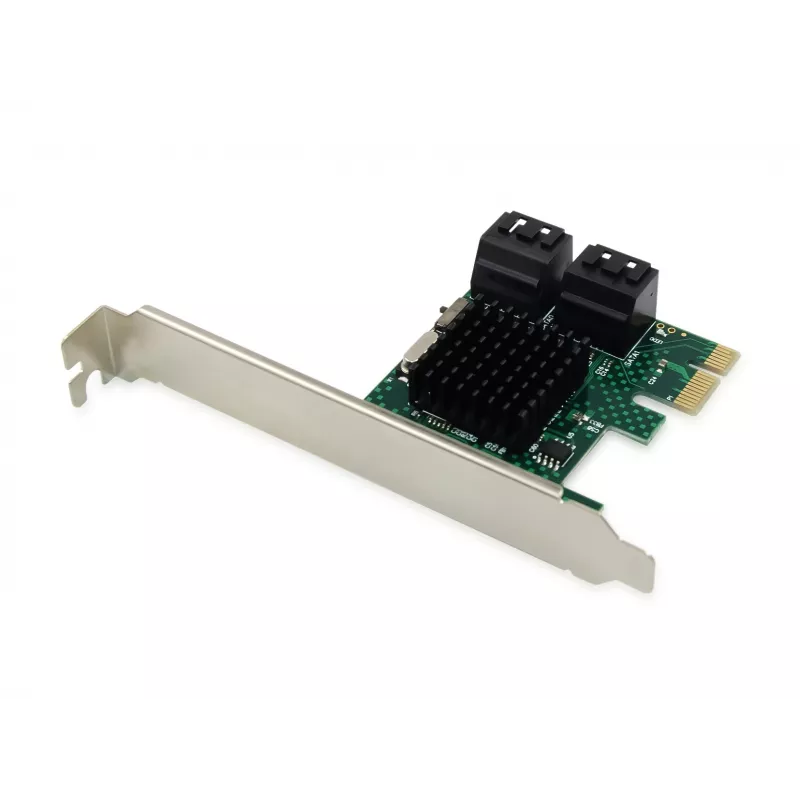

The Conceptronic EMRICK 4-Port SATA PCIe Adapter expands a desktop system with four additional SATA ports using ASMedia high-performance controllers (ASM1061 + ASM1093). Each SATA port supports transfer rates up to 6 Gbit/s and is backward compatible with SATA 3 Gbit/s and 1.5 Gbit/s devices. The card connects via a PCIe host interface and provides Mode switching to operate in IDE or AHCI modes.

Advantages

This compact adapter delivers four internal SATA outputs on a PCIe 2.0 interface, enabling straightforward storage expansion without replacing the motherboard. The ASMedia chipset ensures support for modern 6 Gbit/s drives while retaining compatibility with older SATA drives. Mode switching offers flexibility for legacy systems and different operating environments.

Suitable for

• Adding extra internal SATA drives to a desktop PC
• Upgrading a system to support 6 Gbit/s SATA SSDs or HDDs
• Systems requiring IDE or AHCI mode compatibility
• Small-form installations where a compact PCIe adapter is needed

Key specifications

• Brand: CONCEPTRONIC
• Model: EMRICK03G
• Interface: PCIe (host)
• Controller: ASMedia (ASM1061 + ASM1093)
• Number of SATA ports: 4 internal SATA
• Max transfer rate: 6 Gbit/s per port (backward compatible with 3 Gbit/s and 1.5 Gbit/s)
• Dimensions (W x D x H): 43 x 65 x 18 mm
• Weight: 0.041 kg
• Internal/External: Internal
• EAN: 4015867221976

How to use

Power down the computer and unplug it from the mains. Insert the adapter into an available PCIe slot on the motherboard, secure it in the chassis, and connect internal SATA cables from the adapter to your drives. Connect the drives to the system power supply. Re-power the computer, enter BIOS/UEFI if needed to configure the adapter mode, and install any required drivers for your operating system.

Recommendations

Install the adapter in a free PCIe 2.0 (or compatible) slot and ensure adequate airflow around installed drives. When adding multiple drives, use the AHCI mode for modern operating systems and SSDs; switch to IDE mode only for legacy OS compatibility. Verify driver availability for your OS before installation.
