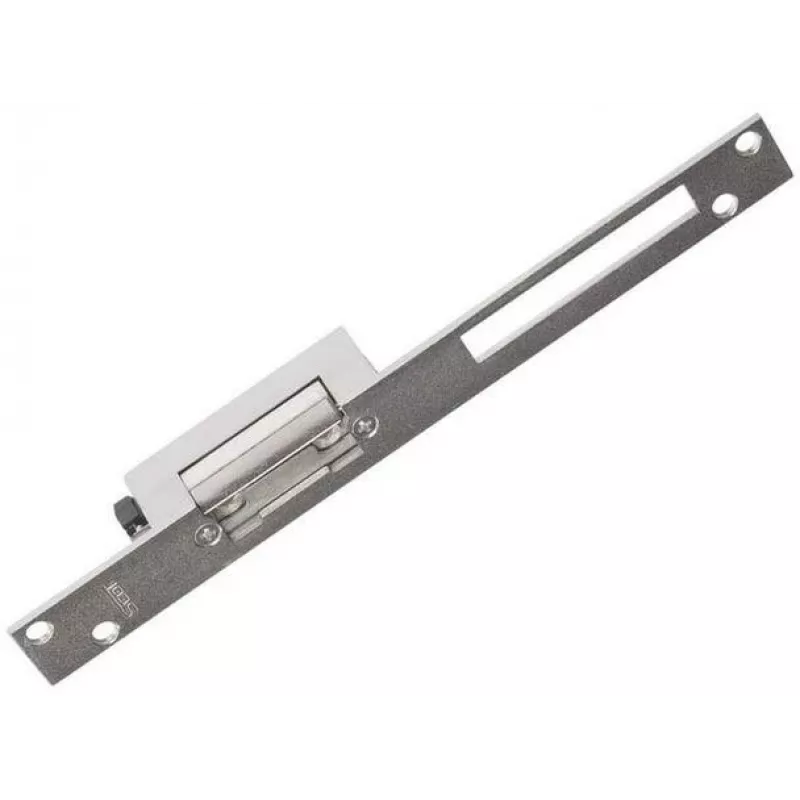

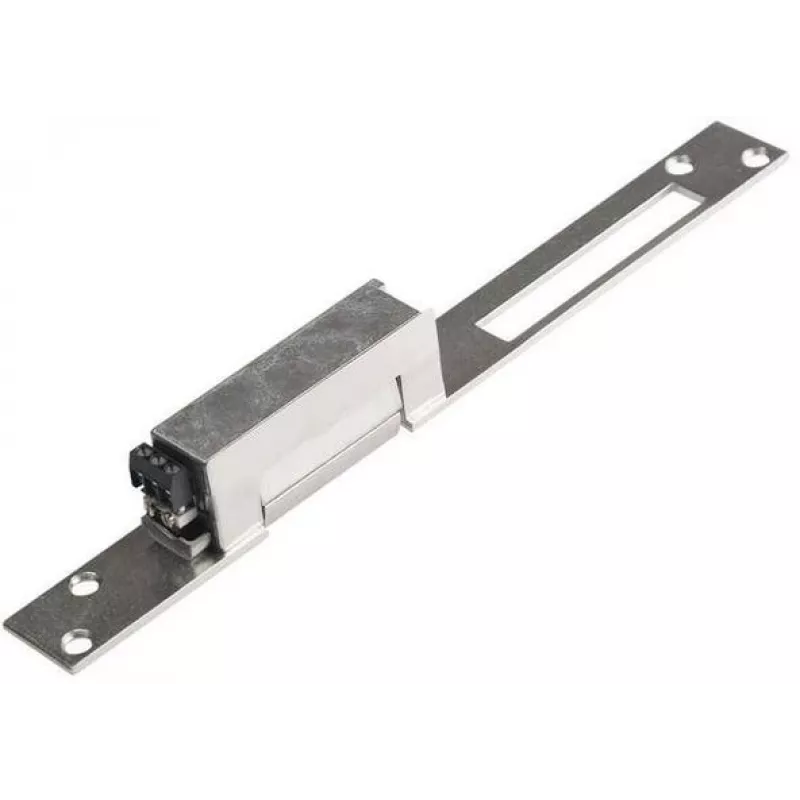

SCOT ES-S12DC-RS PROFI Abrepuertas eléctrico simétrico reversible con señalización, 12V DC

The SCOT ES-S12DC-RS PROFI is a professional-grade symmetrical reversible electric strike designed for access control systems. It features integrated signalization via a NO/NC microswitch, providing real-time door status feedback. Operating at 12V DC with a holding force of 3000 N, this strike is suitable for high-security applications.

Advantages

Reversible operation allows fail-safe or fail-secure configuration. The integrated microswitch enables seamless integration with alarm systems and access controllers. Durable zinc alloy body and stainless steel latch ensure long-lasting performance.

Suitable for

• Access control systems in commercial buildings
• High-security doors requiring status monitoring
• Reversible electric strikes for left/right handed doors

Key specifications

• Supply Voltage: 12V DC
• Current Draw: 250 mA
• Holding Strength: 3000 N (approx. 300 kg)
• Operation Type: Reversible (Fail-Safe / Fail-Secure Selectable)
• Feedback Contact: Integrated NO/NC Microswitch
• Body Material: Zinc Alloy
• Latch Material: Stainless Steel
• Mounting: Mortise
• Connection: Screw Terminals
• Mechanical Endurance: 300,000 Cycles
• Operating Temperature: -20°C to +50°C

Recommendations

For optimal performance, pair with a compatible 12V DC power supply and access control panel. Ensure proper alignment during installation to maximize holding force.
