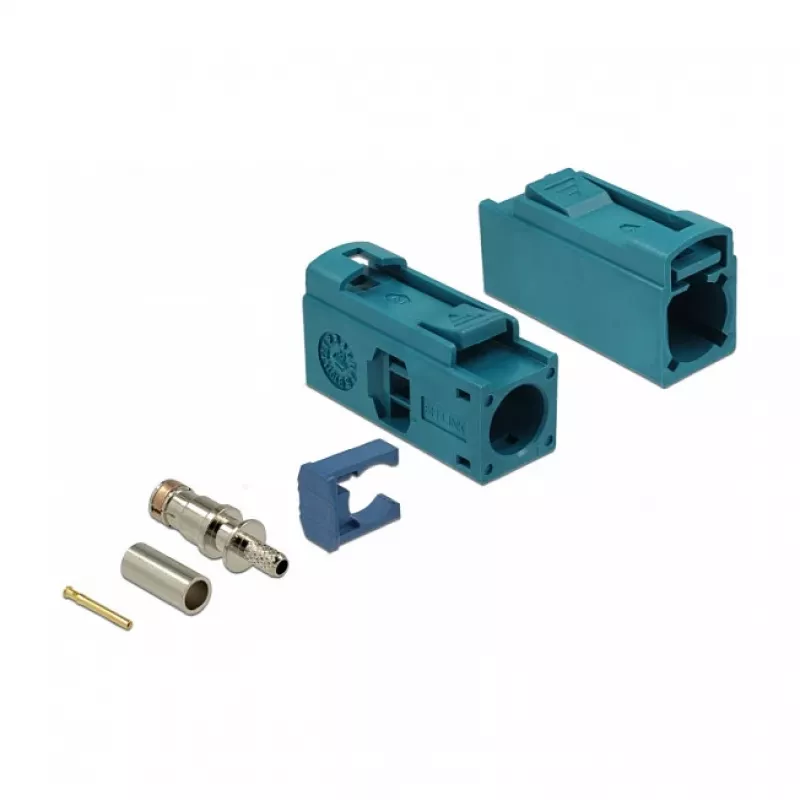

Conector coaxial DeLOCK 89695

The DeLOCK 89695 coaxial connector is a FAKRA Z male jack with gold-plated contacts designed for reliable connection of radio frequency components. Measuring 13.8 mm wide, 25 mm deep and 9.5 mm high, the connector is supplied individually in a polybag and is intended for use where compact, conductive RF connections are required.

Advantages

Gold-plated contacts provide improved conductivity and corrosion resistance. The FAKRA Z male form factor ensures compatibility with matching FAKRA Z sockets used in automotive and RF systems. Its compact dimensions make it suitable for installations with limited space.

Suitable for

• Connecting RF components in automotive applications
• Radio frequency signal connections in telecommunications equipment
• Replacement or custom cabling projects requiring FAKRA Z male connectors

Key specifications

• Connector type: Coaxial FAKRA Z male
• Contacts: Gold-plated
• Dimensions (W x D x H): 13.8 mm x 25 mm x 9.5 mm
• Packaging: Single unit in polybag
• Manufacturer: DELOCK, MPN: 89695, EAN: 4043619896950

How to use

Align the DeLOCK 89695 FAKRA Z male connector with the corresponding FAKRA Z female socket and push until it clicks or seats securely according to the mating connector’s retention mechanism. Ensure contacts are clean and undamaged before mating. For cable assembly, follow the cable manufacturer’s instructions for proper crimping or soldering techniques compatible with FAKRA connectors.

Recommendations

Use the connector in environments and systems that require FAKRA Z compatibility; avoid excessive mechanical stress and exposure to corrosive substances. Verify mating keying and locking to prevent improper connections and ensure reliable RF performance.
