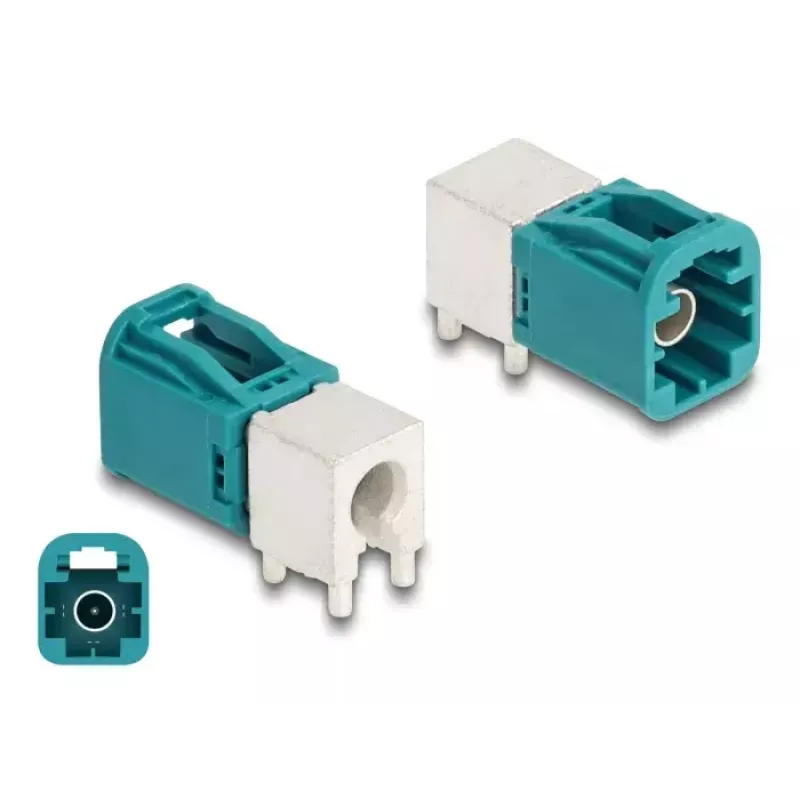

Adaptador coaxial Mini-FAKRA DeLOCK 90112 50 Ω

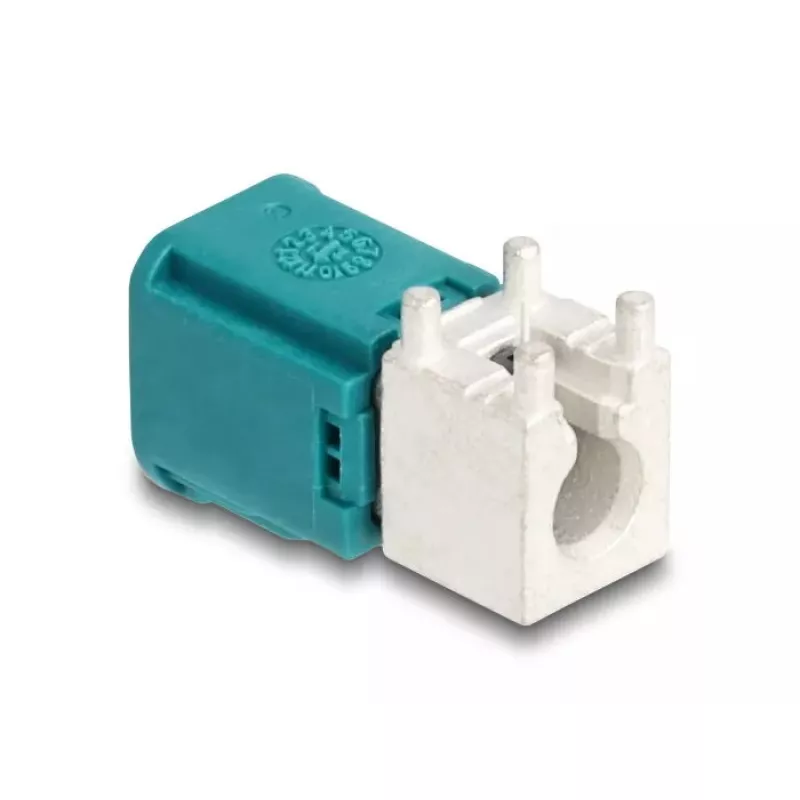

The DeLOCK 90112 Mini FAKRA Coaxial Connector 50 Ω is a compact inline adapter designed for 50 ohm coaxial connections in automotive and electronic applications. It features Mini FAKRA Z connectors on both ends and comes individually packed in a polybag. With overall dimensions of 8 mm (W) x 21 mm (D) x 10 mm (H), the adapter is intended for installations where space is limited and reliable RF connections are required.

Advantages

Due to the reduced housing size compared to standard FAKRA connectors, the Mini FAKRA design enables up to 80% space savings at higher data rates. The compact form factor allows several modules or connectors to be placed within a smaller installation area while maintaining a 50 Ω impedance for stable signal transmission. The adapter’s simple inline construction supports easy integration into existing coaxial cabling.

Suitable for

Key specifications

How to use

Align the Mini FAKRA Z connectors on the adapter with the corresponding Mini FAKRA Z sockets on the cable or device and press until the connector latch engages. Ensure correct orientation to avoid damage to the connector pins. For disconnection, depress the latch and pull the connector straight out. Install the adapter in locations that allow access for plugging and unplugging while keeping bends and mechanical stress on the cable to a minimum.

Recommendations

Use the adapter only with compatible 50 Ω Mini FAKRA Z interfaces. Avoid excessive bending or tensile stress on the coaxial cable near the connector and perform connections in a clean environment to reduce the risk of signal degradation.
