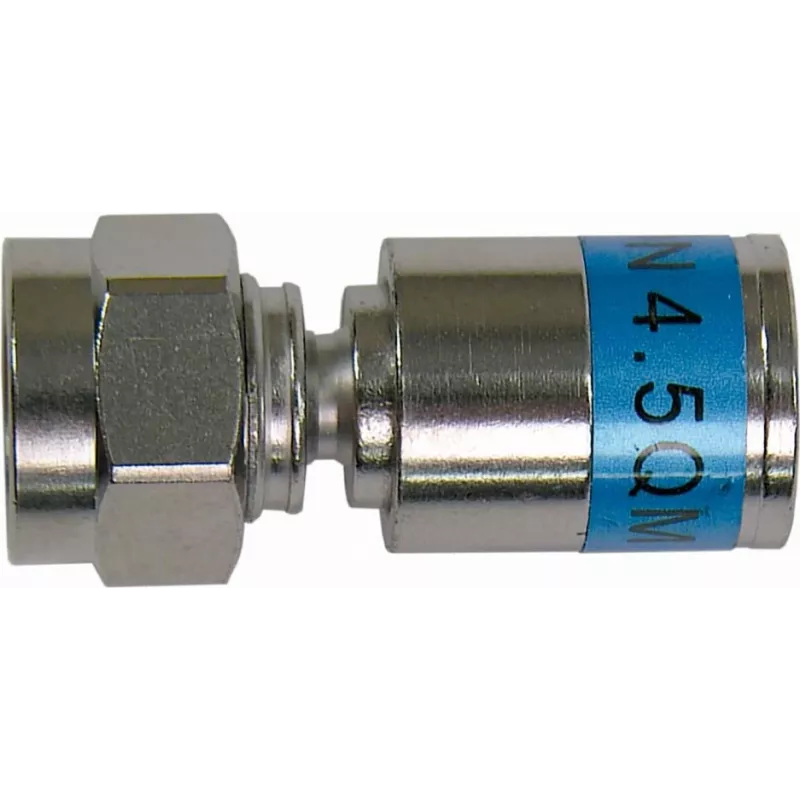

Conector coaxial tipo F Televes FUP0729

The Televes FUP0729 Coaxial Connector F-type is a compact threaded connector designed for reliable coaxial cable connections in television, satellite and broadband installations. Supplied in a box of 50 pieces, this connector is intended for repeated use on projects where consistent RF performance and mechanical stability are required. The Televes design focuses on simple assembly, good contact with the conductor and shielding continuity to maintain signal integrity across the connection.

Advantages

These F-type coaxial connectors offer solid mechanical engagement and consistent electrical contact, reducing insertion loss and reflections when installed correctly. Their construction uses corrosion-resistant materials and precise threading to ensure long-term durability and stable signal transmission. The pack quantity of 50 makes them practical for multi-point installations and spare inventory for installers and system integrators.

Suitable for

• TV antenna and terrestrial RF distribution systems
• Satellite LNB and receiver connections
• Cable and IPTV set-top box installations
• Indoor or sheltered outdoor junctions where F-type terminations are required

Key specifications

• Connector type: F-type threaded coaxial connector
• Package quantity: 50 pieces
• Contact: center conductor contact suitable for standard coaxial cable cores
• Material characteristics: corrosion-resistant metal shell with conductive plating for shielding continuity
• Frequency range: suitable for VHF/UHF and satellite frequency bands typical for F-type connectors
• Mounting: screw-on/hand-tighten installation on prepared coaxial cable or pigtail
• Usage environment: indoor and sheltered outdoor applications

How to use

Prepare the coaxial cable by stripping the outer jacket, trimming the braid and dielectric to expose the center conductor according to the connector’s required dimensions. Slide the connector onto the cable and engage the thread, ensuring the center conductor seats correctly in the contact. Tighten by hand and, if recommended, complete final tightening with an appropriate wrench or tool to secure the mechanical and electrical connection. When multiple connectors are used in a distribution system, check impedance continuity and signal level after installation.

Recommendations

Use connectors with compatible cable types and maintain correct strip lengths to avoid shorts between the braid and center conductor. For critical RF links, verify signal levels and SWR where applicable and replace connectors showing signs of corrosion or mechanical wear.
