Conector macho coaxial DeLOCK 89759

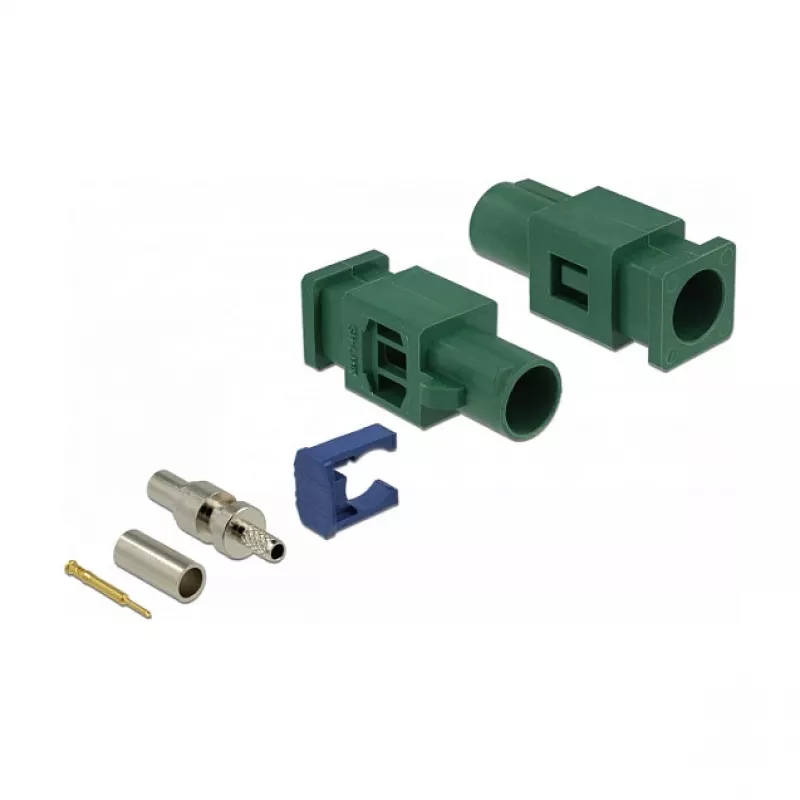

The DeLOCK 89759 coaxial connector is a compact FAKRA E male connector designed for radio frequency applications in automotive and telecommunications systems. It features gold-plated contacts and a stainless-steel body with green coding, offering reliable electrical contact and corrosion resistance in a small form factor (9.4 mm × 25.6 mm × 7.4 mm). The connector is supplied in a polybag.

Advantages

Gold-plated contacts improve signal transmission and reduce contact resistance. The stainless-steel construction provides mechanical strength and corrosion resistance. Compact dimensions make the connector suitable for installations with limited space, while the FAKRA E coding ensures compatibility with standardized RF cable systems.

Suitable for

Key specifications

How to use

Align the FAKRA E male connector with the corresponding female counterpart, ensuring the green coding matches the mating connector. Press the connector straight into the socket until it engages securely; avoid excessive force. Verify the mechanical lock and electrical continuity before final installation into the system.

Recommendations

Use the connector in environments and installations that comply with automotive or telecommunications standards. Avoid exposure to aggressive chemicals and prolonged immersion; ensure proper strain relief on the cable to prevent mechanical stress on the connector.
