Conector de cable D-Sub de 37 pines DeLOCK 66715

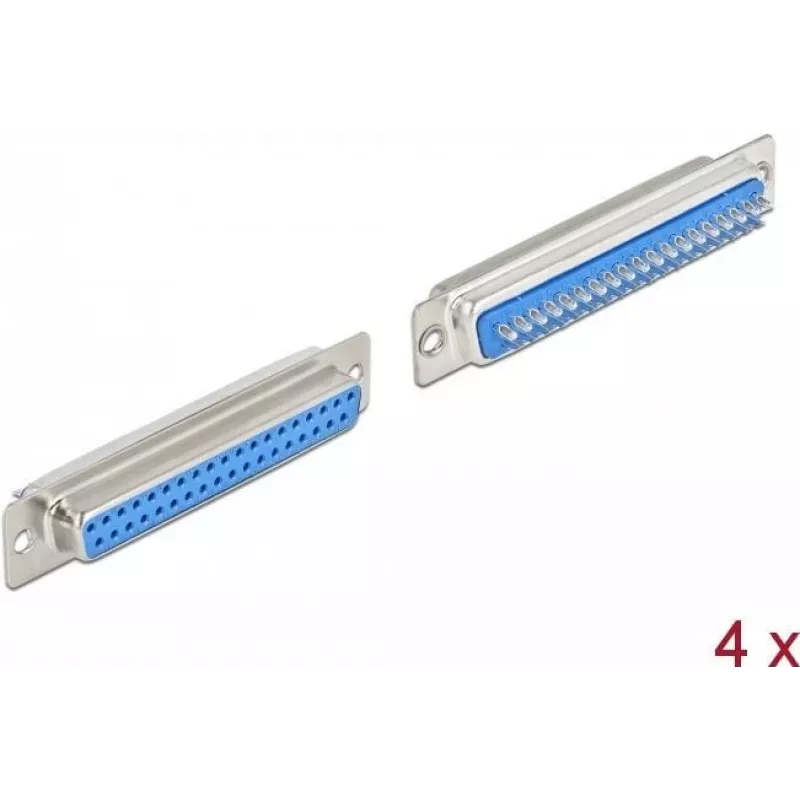

The DeLOCK 66715 wire connector is a D-Sub 37 pin female connector designed for compact electronic and industrial applications. Finished in blue and silver, the connector measures 12.5 mm in width, 69.3 mm in depth and 10.7 mm in height. Supplied in a polybag with four pieces per pack, this component provides a space-efficient solution for wiring and signal connections where a 37-pin D-Sub female interface is required.

Advantages

The connector’s D-Sub 37 pin female layout supports multi-conductor signal routing in a single compact housing. Its small form factor and specified dimensions enable installation in confined panels or housings. The blue and silver coloration aids quick visual identification during assembly. Packaging in sets of four simplifies procurement for batch wiring tasks and reduces handling time for repetitive installations.

Key specifications

• Connector type: D-Sub 37 pin, female configuration
• Colour: Blue and silver finish
• Dimensions (W x D x H): 12.5 mm x 69.3 mm x 10.7 mm
• Packaging: Polybag, 4 pieces per pack
• Country of manufacture: China

How to use

Mount the connector into the panel or mating housing aligned to the corresponding male D-Sub 37 connector. Ensure secure mechanical fastening according to the equipment’s design and verify pin alignment before applying power or signals. When wiring to the connector, follow the circuit schematic and terminate conductors to the appropriate contacts using the recommended soldering or crimping method for your cable type. Inspect each connection visually and electrically prior to commissioning.

Recommendations

For reliable performance, use the connector within the mechanical clearances indicated by its dimensions and avoid excessive mechanical stress on the cable assembly. Store unused connectors in their original packaging to prevent contamination. When used in critical systems, perform continuity and insulation tests after installation.
