Conector de cable DeLOCK 67133 D-Sub de 15 pines plateado hembra

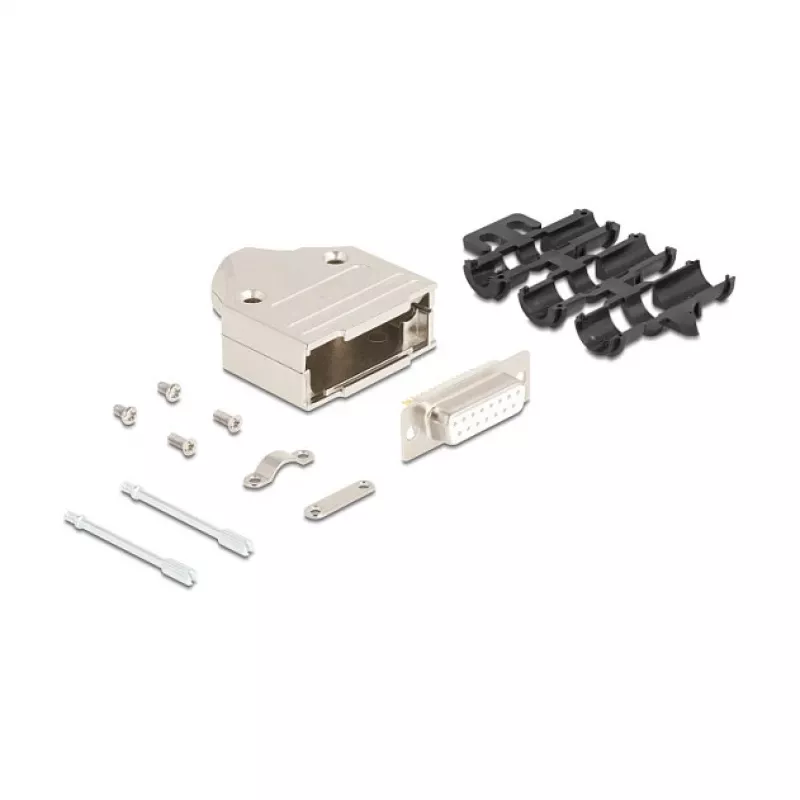

The DeLOCK 67133 wire connector is a D-Sub 15-pin female connector with a silver finish designed for reliable signal connections in electronic equipment. With compact external dimensions of 40.2 mm width, 47 mm depth and 15.6 mm height, this connector suits installations where space is limited and a standard 15-pin D-Sub female interface is required.

Advantages

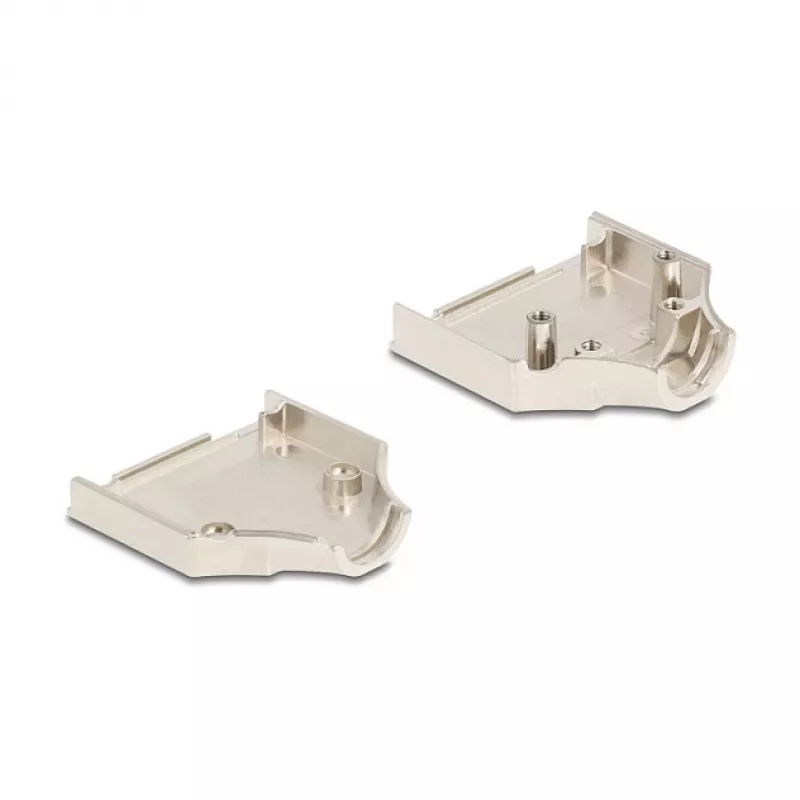

The connector offers a standard D-Sub 15-pin female configuration in a durable silver-coloured housing, providing consistent electrical contact and straightforward mating with compatible male counterparts. Its compact footprint and clearly defined dimensions make planning and integration into panels, enclosures or cable assemblies predictable and straightforward.

Suitable for

• Connecting VGA or other 15-pin D-Sub compatible devices where a female interface is needed
• Panel- or chassis-mounted adapter solutions in electronic equipment
• Custom cable assemblies and repair of devices that use 15-pin D-Sub connections
• Prototyping and small-scale production requiring a compact 15-pin connector

Key specifications

• Connector type: D-Sub 15-pin, female
• External dimensions: 40.2 mm (width) × 47 mm (depth) × 15.6 mm (height)
• Colour: Silver
• Application: Signal connector for 15-pin D-Sub interfaces

How to use

Prepare the mating cable or panel opening to match the connector's dimensions and pin arrangement. Align the female D-Sub 15-pin connector with the corresponding male connector and engage gently until secure. When integrating into a panel or enclosure, verify clearance for the stated depth and height measurements and fasten according to the enclosure's mounting method. Ensure proper grounding and cable shielding as required by the specific application.

Recommendations

For reliable long-term connections, use compatible male D-Sub 15-pin connectors and observe correct mechanical mounting and strain relief. Inspect contacts before assembly and avoid excessive force when mating or unmating to preserve contact integrity.
