Conector de cables DeLOCK 66713 D-Sub HD 26 pines negro plata

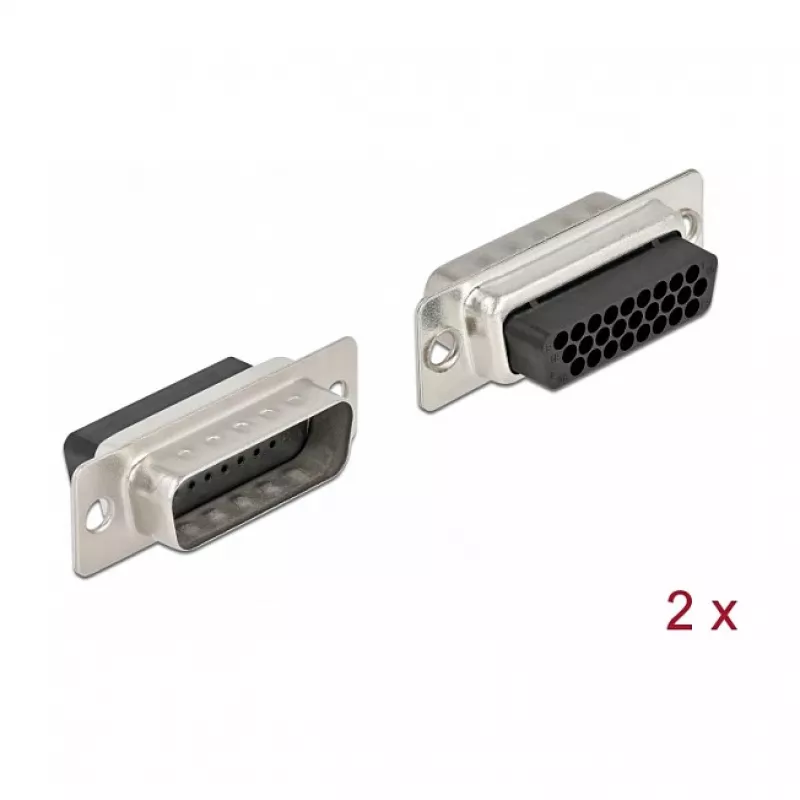

The DeLOCK 66713 D-Sub HD 26 pin wire connector provides a compact, reliable connection point for electronic devices that require a high-density D-Sub interface. Featuring a female connector gender and a two-tone black and silver appearance, this connector is designed for applications where space-saving and stable signal contact are important. The small form factor with dimensions of 17.5 mm (width) × 39.1 mm (depth) × 12.5 mm (height) makes it suitable for integration into enclosures, panels, or custom harnesses. Supplied as a single piece in a polybag and manufactured to standard mechanical tolerances, it serves as a practical component in cable interface and gender adapter applications.

Advantages

The connector combines a high-density 26-pin layout with a compact housing that reduces space requirements while maintaining reliable contact alignment. Its female contact configuration simplifies mating with corresponding male D-Sub HD connectors. The black and silver finish provides clear visual differentiation and a neutral aesthetic suitable for industrial and consumer equipment. Lightweight construction and standardized dimensions make the connector easy to install and integrate into existing wiring systems.

Suitable for

• Connecting high-density D-Sub signals in compact electronic devices
• Panel-mounted or chassis-mounted cable terminations in control equipment
• Custom cable assemblies and repair of gender adapters
• Prototyping and small-scale production of electronic interfaces

Key specifications

• Connector type: D-Sub HD, female
• Number of pins: 26
• Housing colour: black and silver
• Width: 17.5 mm
• Depth: 39.1 mm
• Height: 12.5 mm
• Packaging: single piece in polybag
• Country of manufacture: China
