Conector DeLOCK 86489 1x RJ-45 gris

This RJ45 plug by DELOCK (model 86489) provides a single RJ‑45 male connector in grey for connecting network cables. It accepts cables with an inner diameter of approximately 8.5 mm and is supplied in a polybag. The compact body with a width of 33.2 mm and depth of 63.4 mm supports reliable, space‑saving cable connections in various network installations.

Advantages

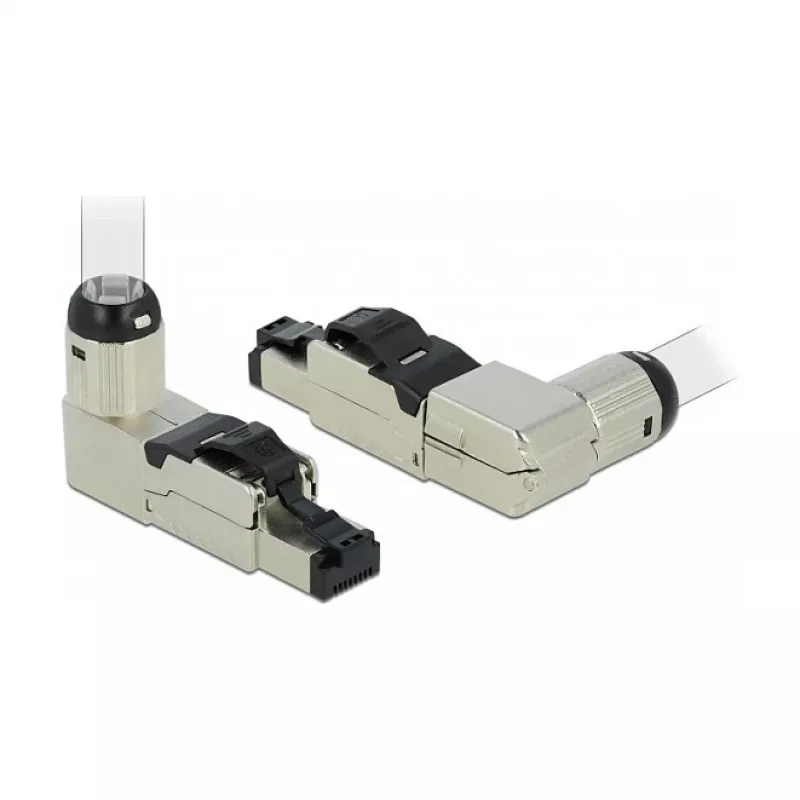

The tool‑free design allows quick and easy installation on multiple cable types without special equipment. The detachable angled cap can be rotated and fixed in four different directions to accommodate angled mounting, while the cap can be removed to lead the cable straight out the back when a straight exit is required. The grey finish provides a neutral appearance for professional cabling.

Suitable for

• Network patch cables and field terminations
• Installations requiring angled or straight cable exit
• Small network boxes, patch panels, and custom cabling projects

Key specifications

• Brand: DELOCK
• Model / MPN: 86489
• Connector: 1 × RJ‑45 male
• Colour: Grey
• Inner diameter (cable): approx. 8.5 mm
• Width: 33.2 mm
• Depth: 63.4 mm
• Packaging: Polybag
• EAN: 4043619864898

How to use

Prepare the network cable to the appropriate length and insert it into the connector body until the conductors reach the contact area. Snap the connector closed according to the product design; no tool is required. Rotate the angled cap to one of the four positions if an angled exit is needed, or remove the cap to route the cable straight out the back.

Recommendations

Use this DELOCK RJ‑45 plug with cables matching the specified inner diameter and check conductor alignment before final assembly to ensure reliable contacts. For permanent or high‑load professional installations, verify compatibility with your patch panels and test the connection after termination.
