Conector Ethernet Lapp ED-IE-90-6A-B-20-FC acodado (MPN 21700637)

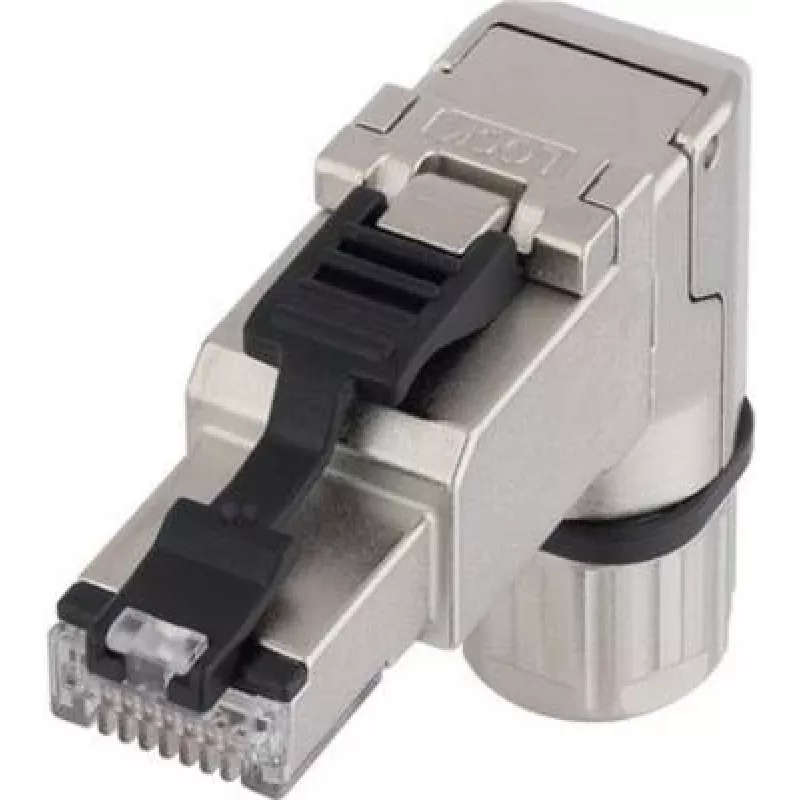

Angled Ethernet connector Lapp ED-IE-90-6A-B-20-FC (MPN 21700637, EAN 4044776949657) is a factory-made RJ-style termination intended for reliable network cabling. The connector provides a 90° orientation to simplify installations in confined spaces and is suitable for industrial and commercial Ethernet applications where a compact, durable plug is required.

Advantages

The Lapp ED-IE-90-6A-B-20-FC offers a space-saving angled design that eases cable routing in tight enclosures. As a factory-made connector, it ensures consistent assembly quality and reliable electrical contact. The construction is intended for standard Ethernet installations and supports straightforward integration into existing cabling systems.

Suitable for

Key specifications

How to use

Strip and prepare the Ethernet cable according to the cable and connector instructions, insert conductors into the connector following the required pinout, and assemble the factory-made plug as specified by Lapp. Mount the angled connector into the available space, ensuring the 90° orientation aligns with the routing path. Verify secure mechanical fit and electrical continuity before putting the network into service.

Recommendations

Use this connector where a right-angle termination reduces stress on the cable or when space constraints prevent a straight plug. Confirm compatibility with your cable category and the system's shielding requirements before installation.
