Conector hembra XLR Kindermann 7444000412

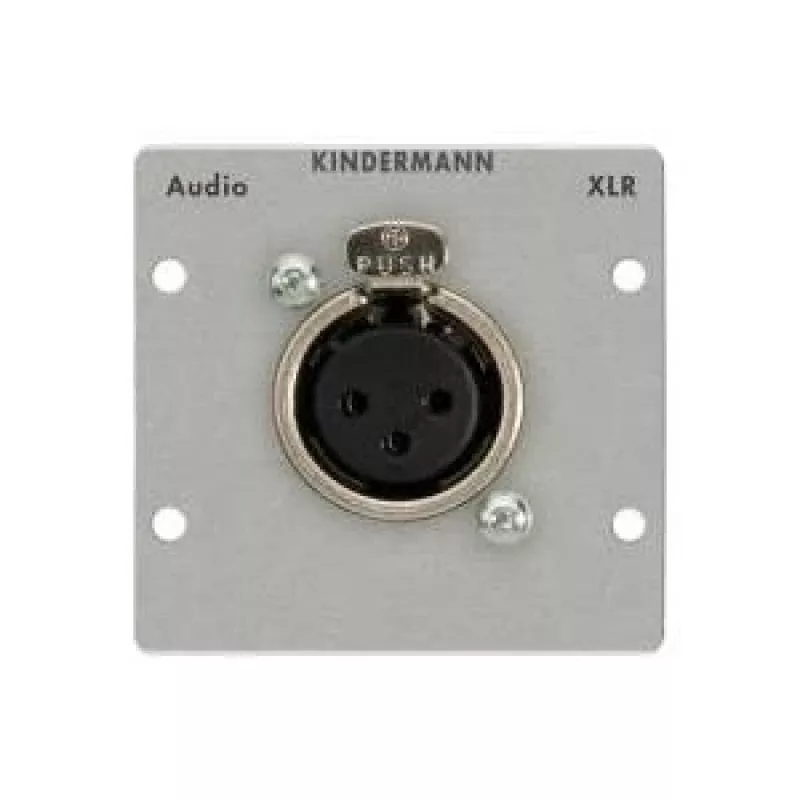

The Kindermann 7444000412 Socket outlet is a full-size XLR 3-pin female panel connector with solder terminals, designed for professional audio installations. Housed in an anodized aluminium plate, the unit offers a compact footprint (50 mm width, min. 32 mm depth) and fits one module for integration into studio racks, wall plates or custom panels.

Advantages

Constructed with an anodized aluminium plate for mechanical strength and corrosion resistance, the XLR socket provides solder connection terminals for secure wiring. Its full-size XLR design ensures compatibility with standard XLR plugs used in professional audio environments. The compact dimensions allow installation in confined spaces while maintaining robust front-panel appearance.

Suitable for

Key specifications

How to use

Mount the plate into the chosen cutout or module frame, secure it according to the panel system in use, and solder the audio conductors to the designated terminals on the rear of the XLR socket. Observe correct pin assignments (pin 1 = ground, pin 2 = hot, pin 3 = cold) and ensure solder joints are clean and mechanically supported to prevent strain on the connections.

Recommendations

For reliable audio performance, use quality solder and check continuity after wiring. Avoid excessive mechanical strain on cables by providing strain relief and verify that the plate is grounded when used in grounded panel systems.
