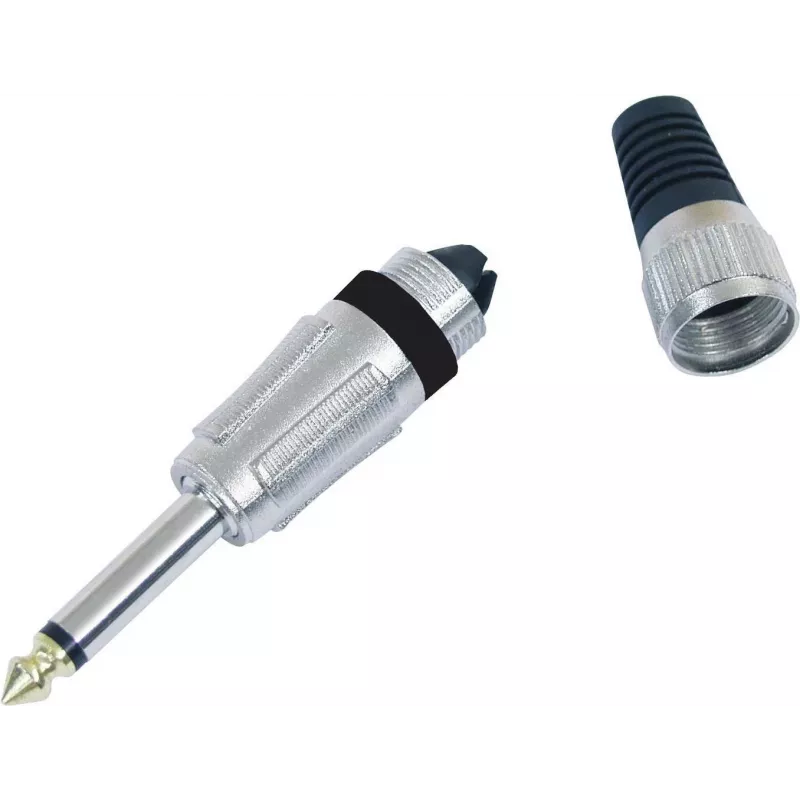

Conector jack mono de 6,3 mm Omnitronic, modelo 30200694, conector de audio niquelado

Omnitronic 6.3 mm mono plug model 30200694 is a single-channel audio connector designed for use with instruments, amplifiers and professional audio equipment that require a standard 6.3 mm mono jack. The nickel-plated housing and contact ensure consistent signal transfer and improved resistance to corrosion, making the connector suitable for live and studio environments where reliable mechanical and electrical contact is important.

Advantages

The nickel-plated contact and housing provide durable corrosion resistance and stable conductivity over repeated insertions. The standard 6.3 mm mono format ensures compatibility with a wide range of instruments, amplifiers, patch bays and audio equipment. Compact construction allows straightforward integration into instrument cables and replacement leads while maintaining a secure mechanical fit.

Suitable for

Key specifications

How to use

Solder the cable conductors to the tip and sleeve contacts following standard wiring conventions: the tip for the signal conductor and the sleeve for ground/shield. Ensure the cable is seated correctly inside the housing before tightening any clamps or screws to provide strain relief. After assembly, test continuity with a multimeter and verify that the plug inserts and locks smoothly into the target jack without excessive play.

Recommendations

For reliable long-term performance, use appropriate cable diameters and perform secure solder joints. Avoid excessive bending at the plug entry and periodically inspect the contact surface for oxidation; if needed, clean with contact cleaner designed for audio connectors.
