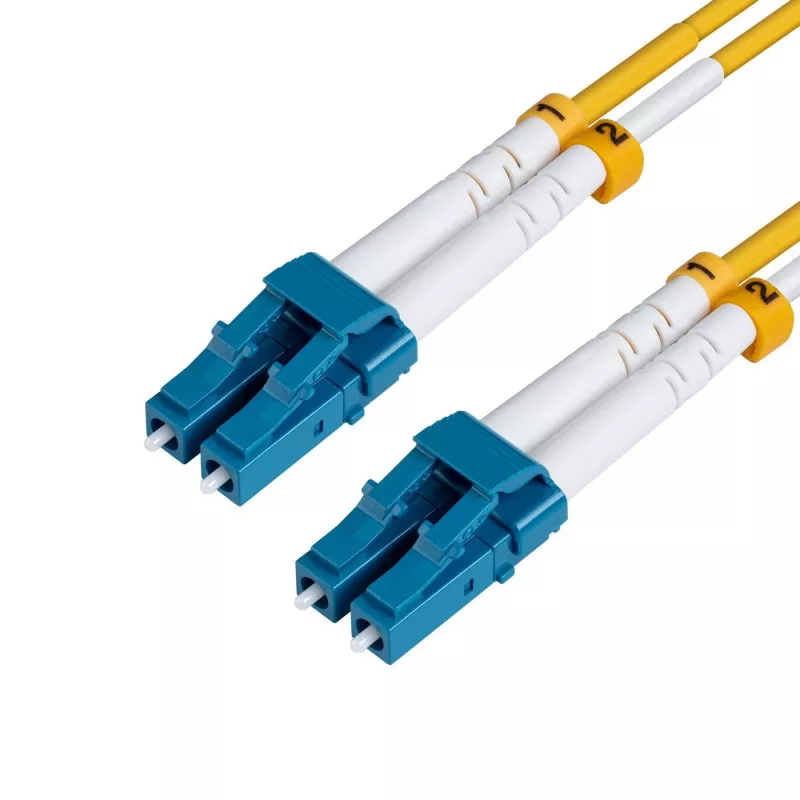

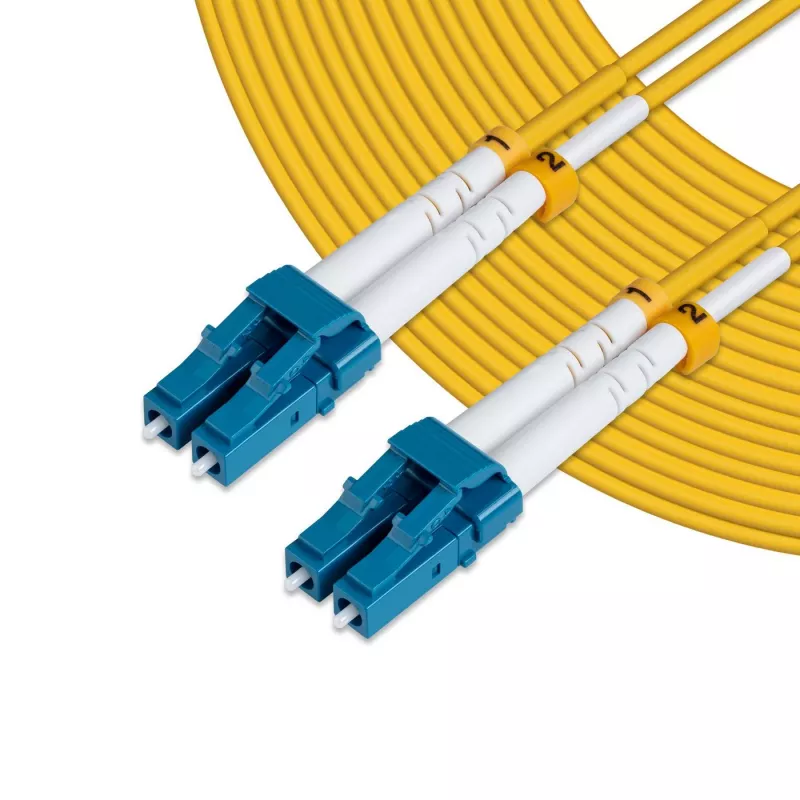

Microconnect FIB441005 cable InfiniBand/fibra óptica 5 m LC amarillo

The Microconnect FIB441005 is a 5 m single-mode fibre optic patch cable with LC connectors at both ends and OS2 fibre. With a 9 µm core diameter and a yellow LSZH jacket, this cable is designed for high-speed, low-loss transmission in enterprise networks, telecom rooms, server farms and cloud storage networks. It supports 1G/10G/40G/100G Ethernet links and can carry signals up to 10 km at 1310 nm or up to 40 km at 1550 nm.

Advantages

This LC–LC OS2 single-mode patch cord provides low attenuation and stable signal quality over long distances. The LSZH (low-smoke zero-halogen) outer jacket reduces toxic fumes in case of fire and meets common IEC, EIA/TIA and Telcordia standards. The 5 m length and yellow colour enable easy identification and practical routing in racks and cable trays.

Suitable for

• Enterprise network backbone connections
• Telecom and data centre patch panels
• Server farms and cloud storage interconnects
• High-speed Ethernet links (1G/10G/40G/100G)

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB441005
• Length: 5 m
• Connectors: LC — LC
• Fibre type: OS2 (single-mode), core 9 µm
• Jacket: LSZH, colour Yellow
• Weight: 0.06 kg
• EAN: 7331990076922

How to use

Route the LC–LC fibre patch cord between corresponding LC ports on patch panels, transceivers or network devices. Avoid tight bends and sharp edges; maintain the recommended bend radius for single-mode fibre. Secure the cable in trays or organisers to prevent strain on the connectors. When connecting to transceivers, ensure connectors are clean and dust-free before insertion.

Recommendations

For reliable long-distance performance, use the cable within specified wavelength ranges (1310 nm up to 10 km, 1550 nm up to 40 km). Store and handle the LSZH jacketed fibre carefully and use appropriate cleaning tools for LC connectors to minimise loss and maintain link quality.
