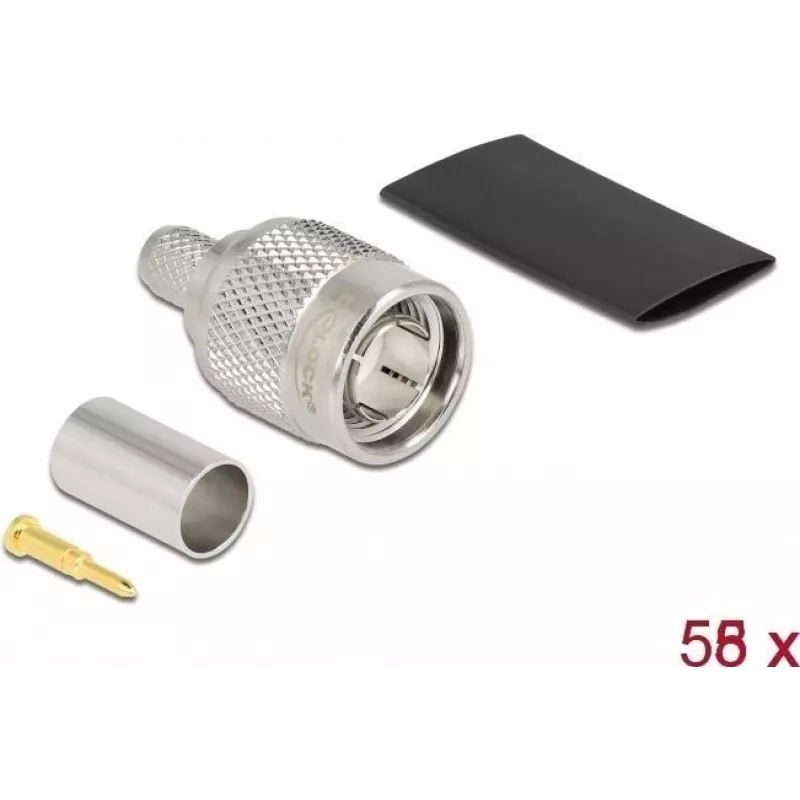

Conector macho TNC para crimpar RG-59 DeLOCK 90030

The DeLOCK TNC plug for crimping RG-59 cables is intended for reliable connections in radio frequency systems. It has a characteristic impedance of 75 Ω and nickel-plated contacts. The set includes matching shrink tubes to secure and insulate the connection. Each pack contains five connectors. Dimensions: 14.5 mm (W) × 25.5 mm (D) × 14.5 mm (H).

Advantages

The TNC plug is made for RG-59 cable termination and provides consistent 75 Ω impedance for RF applications. Nickel-plated contacts offer corrosion resistance and stable signal transmission. Inclusion of shrink tubes simplifies installation and improves mechanical and environmental protection of the crimped joint. Pack of five connectors offers several terminations per purchase.

Suitable for

Key specifications

How to use

Prepare the RG-59 cable by stripping the outer jacket, braid and dielectric to the required lengths for this TNC crimp connector. Slide the shrink tube onto the cable before fitting the connector. Insert the conductor and inner dielectric into the plug, then crimp the connector ferrule according to recommended crimp dimensions. After crimping, position the shrink tube over the joint and apply heat evenly until it contracts and seals the connection.

Recommendations

For reliable RF performance, ensure correct stripping lengths and use the appropriate crimp tool and die for RG-59. Verify continuity and impedance if used in critical signal paths. Store connectors in a dry environment to prevent oxidation prior to installation.
