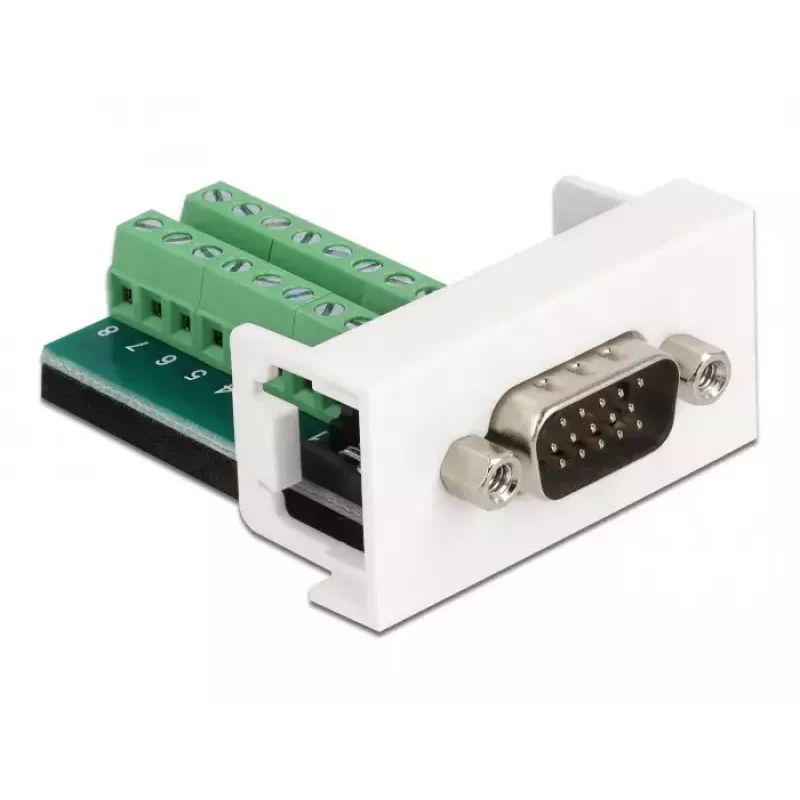

Conector macho VGA a módulo de regletas DeLOCK Easy 45

The DeLOCK Easy 45 module provides a VGA male port in a compact modular housing. It uses a snap-in mechanism for secure mounting and simple removal, and is compatible with standard Easy 45 module holders and cable ducts. With a width of 45 mm, depth of 22.5 mm and height of 55 mm, this module creates a reliable interface for VGA connections between electrical or network installations and peripheral devices such as monitors, TVs, laptops and projectors.

Advantages

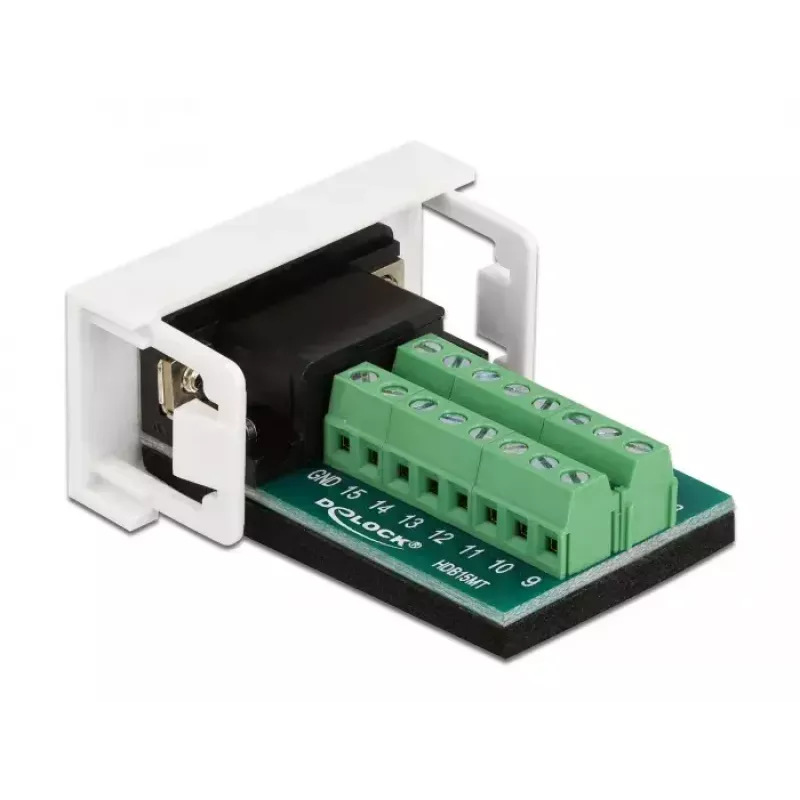

The module converts a VGA connection to a terminal block format, enabling easy wiring and installation in professional environments. Its snap-in mounting ensures firm placement while allowing quick replacement or reconfiguration. The compact dimensions make it suitable for standardized Easy 45 systems and space-constrained installations. The module is produced to Delock's specifications and is available in green and white colour accents.

Suitable for

• Connecting VGA-equipped devices (monitors, projectors, TVs) to terminal block wiring
• Installation in Easy 45 module holders and cable ducts
• AV and control installations in conference rooms, classrooms and digital signage

Key specifications

• Connector type: VGA male to terminal block
• Module system: DeLOCK Easy 45
• Dimensions: 45 mm (W) x 22.5 mm (D) x 55 mm (H)
• Product colour: Green, White
• Manufacturer part number (MPN): 81347
• EAN: 4043619813476
• Country of origin: China

How to use

Insert the module into a compatible Easy 45 holder or cable duct until the snap-in mechanism clicks to secure it. Connect the VGA cable to the male VGA port and terminate the corresponding signal wires on the terminal block according to your wiring scheme. To remove or replace the module, release the snap-in latch and pull the module out of the holder.

Recommendations

For reliable signal transmission, use properly shielded VGA cables and ensure correct grounding. Follow standard VGA pin assignments when wiring the terminal block. Install the module in compliant Easy 45 frames or ducts and avoid applying excessive force when snapping the module in or out.
