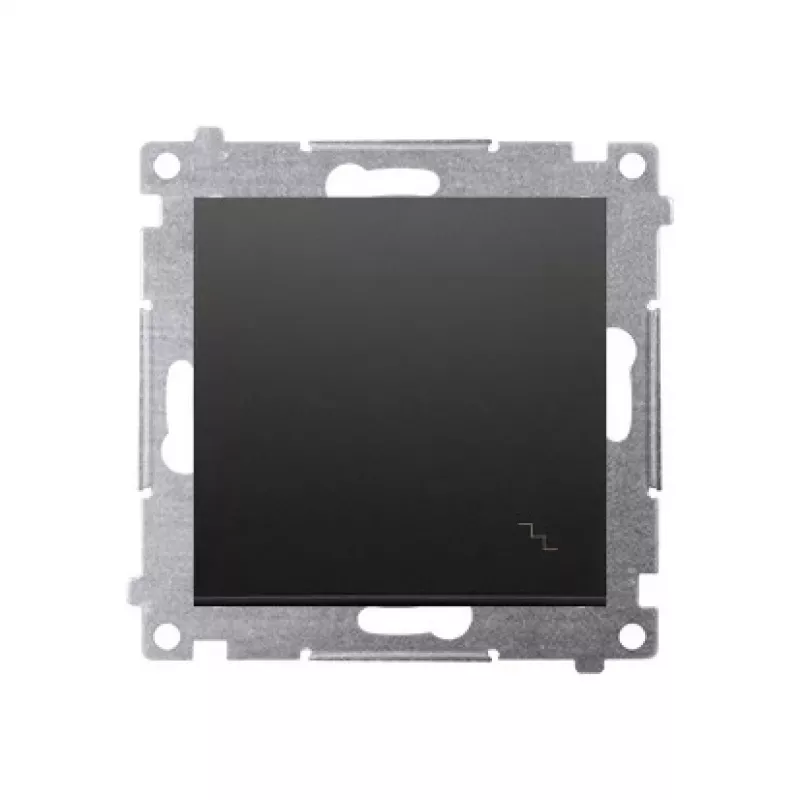

Conmutador de escalera KONTAK-SIMON Simon 54, 1 módulo, negro mate, bornes de resorte, 10AX 250V

Unlike standard light switches that limit control to a single location, the KONTAK-SIMON Simon 54 stair switch enables convenient two-way operation for staircases, hallways, and large rooms. Its matt black finish and compact 1-module design blend seamlessly into modern interiors, while spring clamp terminals make installation quick and tool-free. Built from high-quality thermoplastic and rated for 10AX at 250V AC, this switch delivers reliable performance for multi-point lighting control.

Highlights

• Two-way stair switch for controlling lights from two locations
• Spring clamp terminals for fast, secure wiring without screws
• Matt black colour with a smooth, modern finish
• Fits standard flush-mounted boxes, 1 module (22.5 mm) width
• Rated 10AX, 250V AC – suitable for resistive and inductive loads
• CE marked and compliant with relevant safety standards

In daily use

The Simon 54 stair switch offers a tactile rocker actuation that feels solid and responsive. Its single-pole design handles typical lighting circuits, and the spring clamps accept rigid conductors up to 2 x 2.5 mm², reducing installation time. With an IP20 rating, it is intended for indoor use in dry environments, operating reliably between -5°C and +35°C. The switch requires no indicator light, keeping the front clean and unobtrusive.

Full specifications

• Brand: KONTAK-SIMON
• Model: DW6.01/49
• MPN: DW6.01/49
• EAN: 5902787870294
• Series: Simon 54
• Switch type: Stair switch (2-way)
• Number of poles: 1
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Connection terminals: Spring clamps
• Module width: 1 module (22.5 mm)
• Product colour: Black
• Finish type: Matt
• Housing material: High-quality thermoplastic
• Mounting type: Flush mount
• IP rating: IP20
• Operating temperature range: -5 to +35 °C
• Max conductor size: 2 x 2.5 mm² (rigid)
• Compliance: CE marked
• Actuation mechanism: Rocker
• Indicator light: No
• Application: Multi-point lighting control
• Installation depth: ~30 mm

Final note

For electricians and homeowners seeking a dependable, easy-to-install stair switch with a contemporary matt black look, the KONTAK-SIMON Simon 54 is an excellent choice that combines functionality with understated style.
