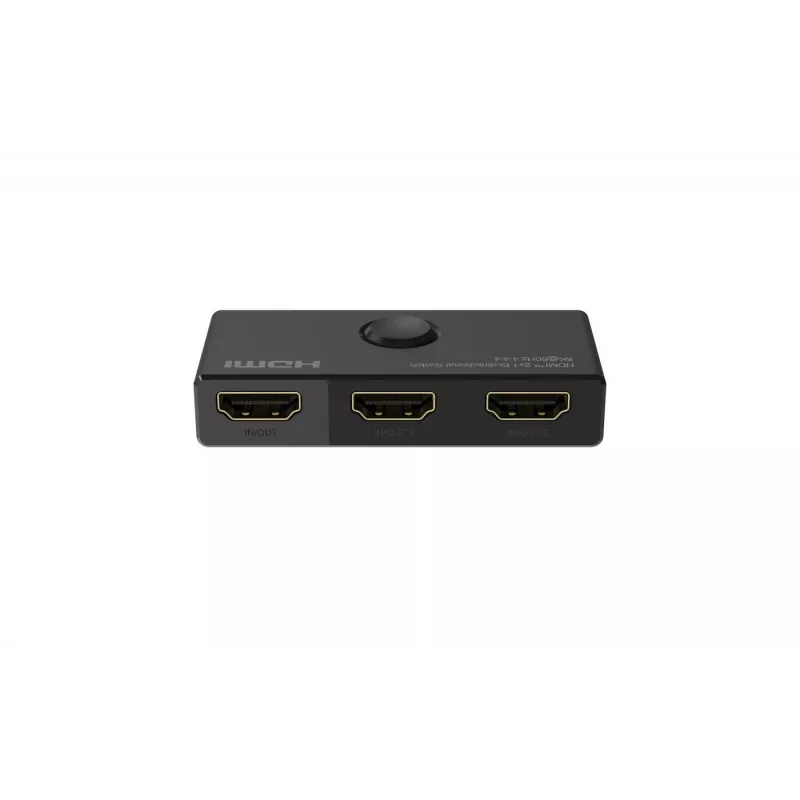

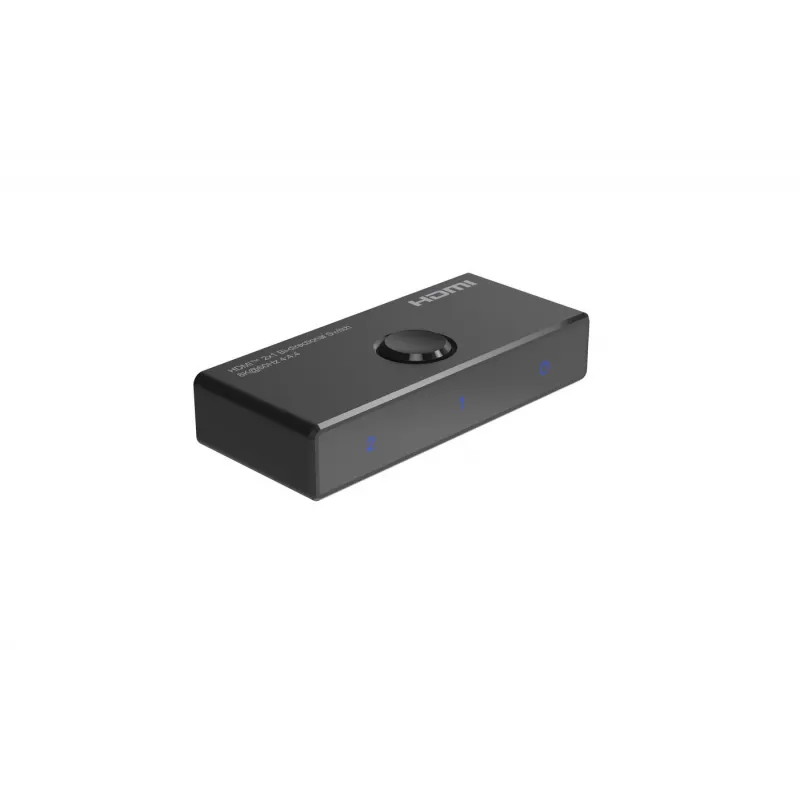

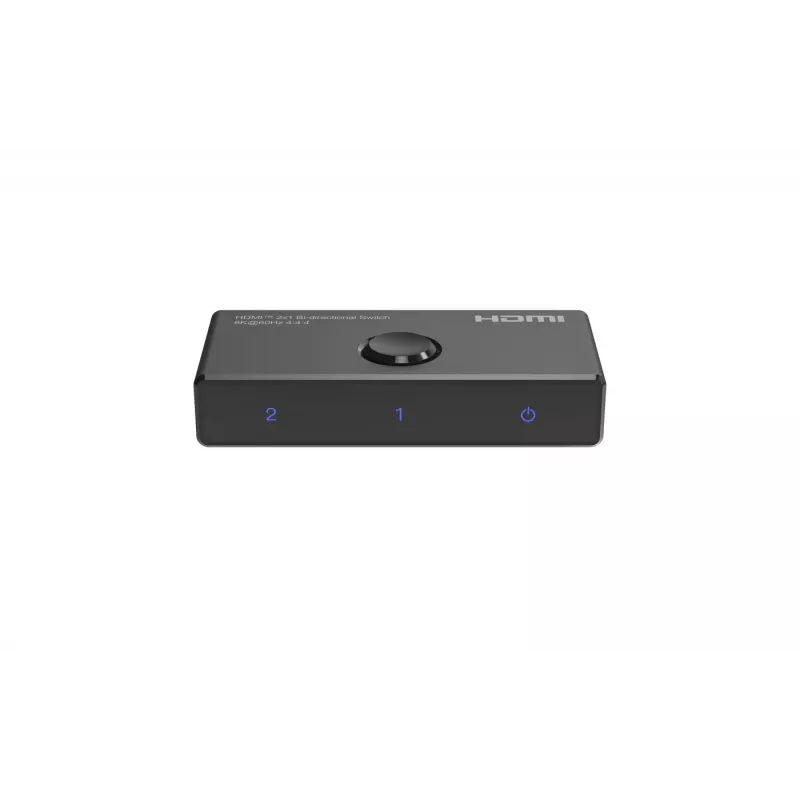

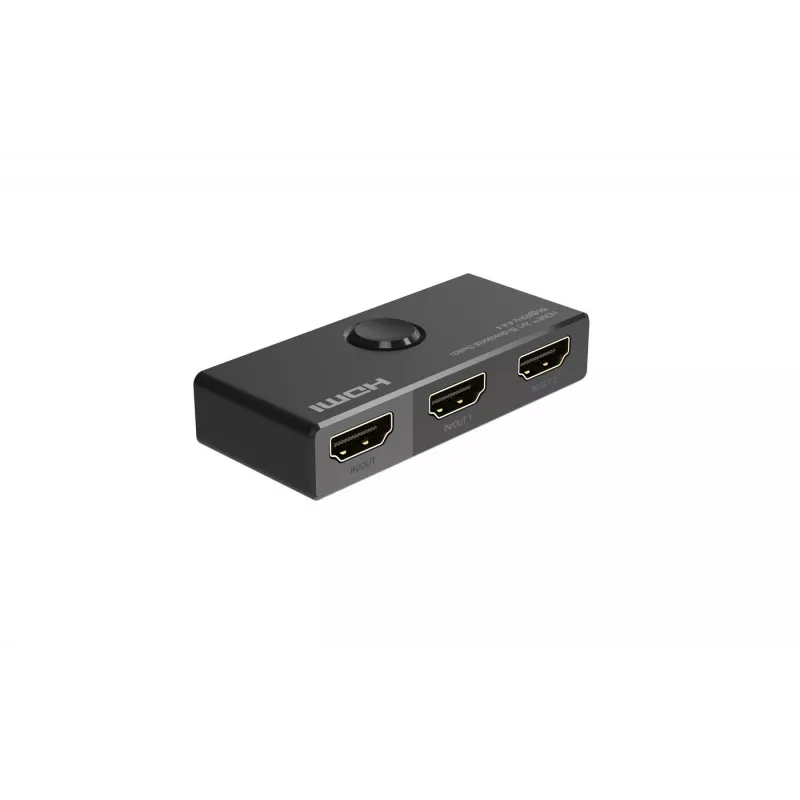

Conmutador de vídeo HDMI Microconnect MC-HDMISWITCH-8K-MINI 8K 60Hz

The Microconnect MC-HDMISWITCH-8K-MINI is a compact bi-directional HDMI video switch that supports up to 8K resolution at 60 Hz with 4:4:4 HDR color. Housed in a durable ABS enclosure and finished in black, the switch offers flexible signal routing for small home or office multimedia setups without requiring cables to be unplugged or adapters to be swapped.

Advantages

This HDMI switch provides bi-directional operation, allowing either multiple HDMI sources to feed a single display or a single source to be sent to multiple displays by switching outputs. It supports high-resolution 8K at 60 Hz and full 4:4:4 HDR color for accurate, detailed images. The unit is compact and lightweight (73.6 × 32 × 15 mm, 0.027 kg), made from ABS, and carries CE, RoHS and FCC certifications for regulatory compliance.

Suitable for

• Connecting multiple HDMI devices (game consoles, media players, PCs) to one display
• Switching one HDMI source between two displays or projectors
• Small home theatre and office AV setups requiring 8K/60 Hz support

Key specifications

• Model: Microconnect MC-HDMISWITCH-8K-MINI (MPN: MC-HDMISWITCH-8K-MINI)
• Supported resolution: up to 8K at 60 Hz with 4:4:4 HDR
• Port type: HDMI
• Product colour: Black
• Material: ABS
• Dimensions: 73.6 × 32 × 15 mm
• Weight: 0.027 kg
• Certifications: CE, RoHS, FCC
• EAN: 5715063148860

How to use

Place the MC-HDMISWITCH-8K-MINI near your devices and connect HDMI cables to the available HDMI ports according to the intended direction (source-to-display or display-to-source). Use the built-in switch or device controls to toggle the active connection. Ensure connected devices are powered on and set to compatible resolution and HDR settings. No additional drivers are required; the device operates as an inline HDMI switcher.

Recommendations

For reliable 8K/60 Hz performance, use high-quality HDMI cables rated for 8K bandwidth and keep cable runs as short as practical. Verify that connected devices and displays support 8K and HDR formats to achieve the specified image quality.
