Conmutador UBIQUITI NanoSwitch Gigabit Ethernet PoE, 4x Gigabit RJ-45, 4x puertos PoE, presupuesto 36 W, 24 V DC

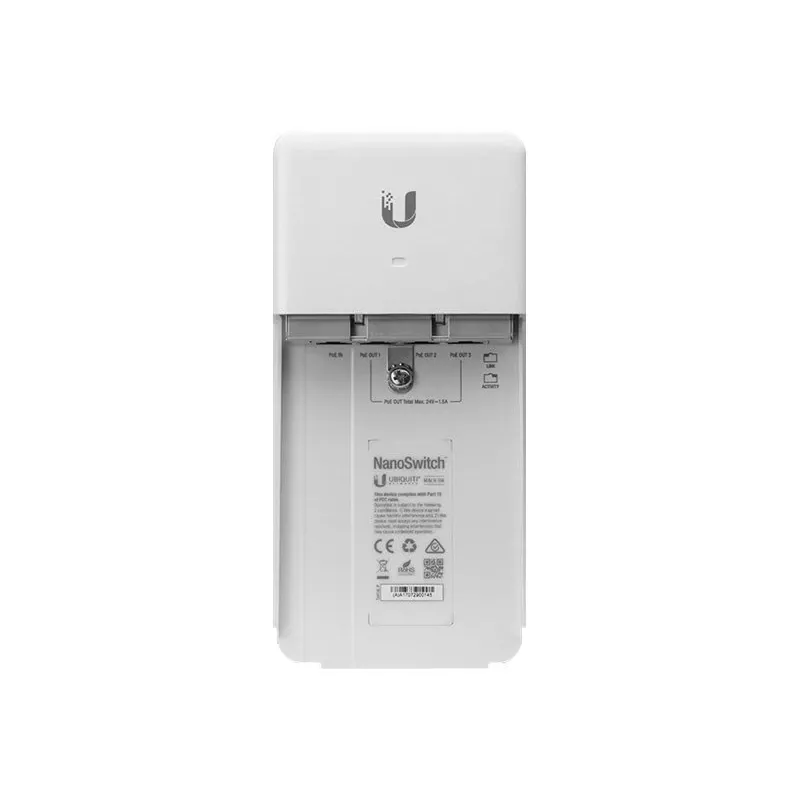

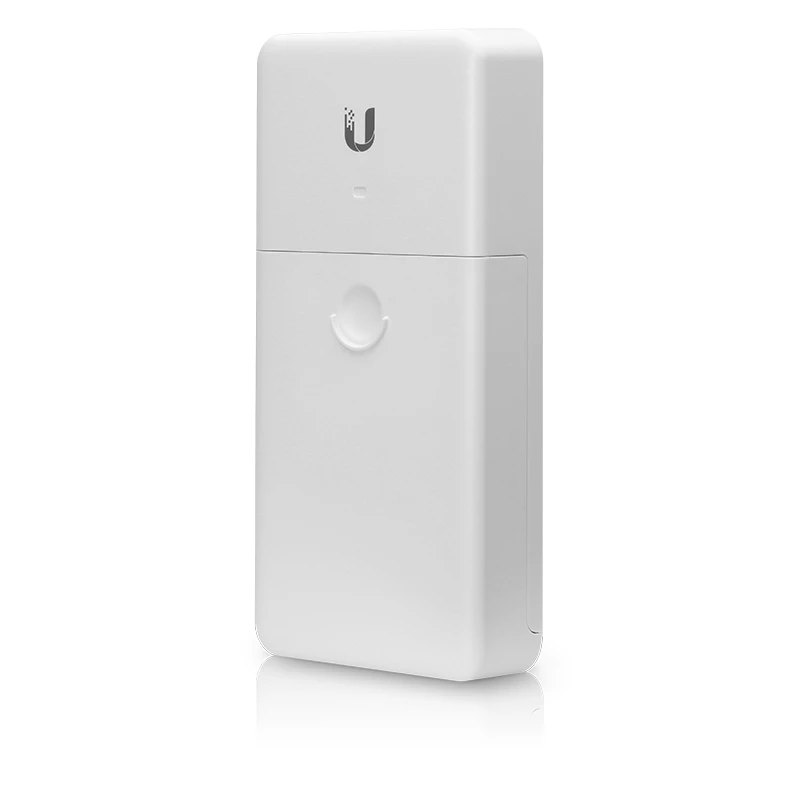

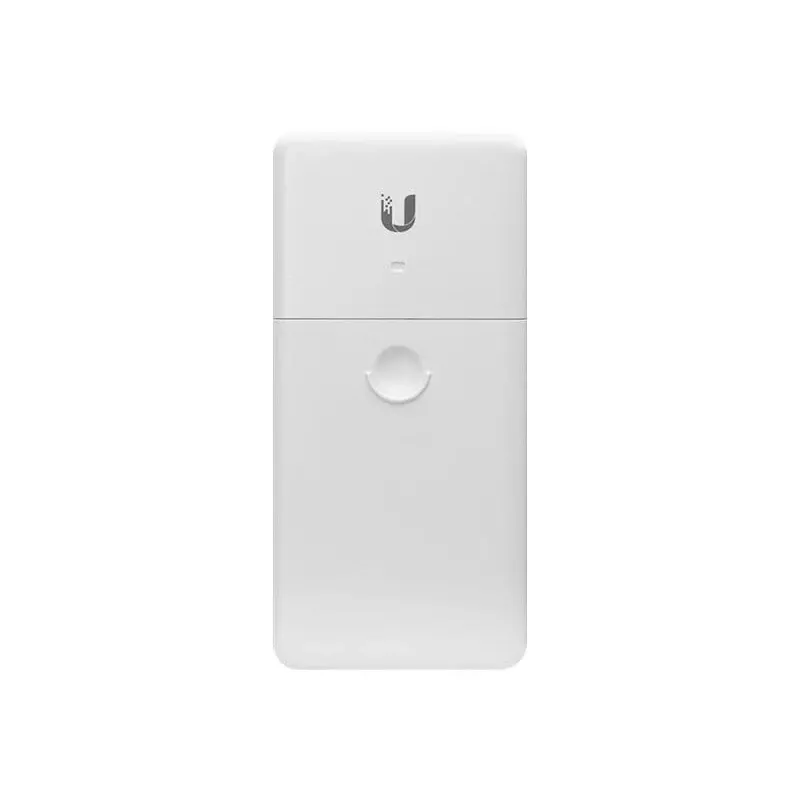

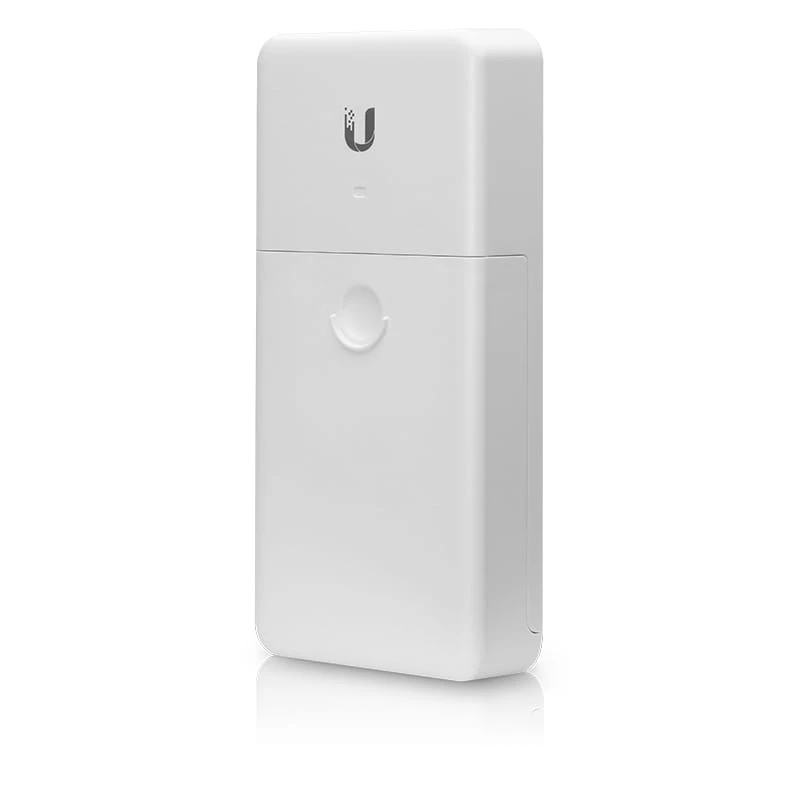

The Ubiquiti NanoSwitch is a compact outdoor Gigabit Ethernet switch with four RJ-45 ports and PoE pass-through. Powered by 24 V passive PoE, the NanoSwitch supplies up to 24 W across three PoE output ports and delivers a non-blocking switching capacity of up to 4 Gbit/s. Its weather-resistant design and small form factor make it suitable for outdoor network extensions where powered devices need to be connected and supplied over Ethernet.

Advantages

The NanoSwitch provides four Gigabit Ethernet ports in a small, weather-resistant housing and supports PoE pass-through to power compatible devices without additional power injectors. With a 24 V DC input and up to 24 W available on three PoE out ports, it enables simplified cabling and reliable data throughput at line rate up to 4 Gbit/s. The white enclosure and compact weight make it easy to mount in outdoor installations.

Suitable for

• Connecting and powering outdoor access points
• Small outdoor camera installations with PoE-powered cameras
• Extending Ethernet to remote outdoor network devices

Key specifications

• Brand: UBIQUITI
• Model: N-SW

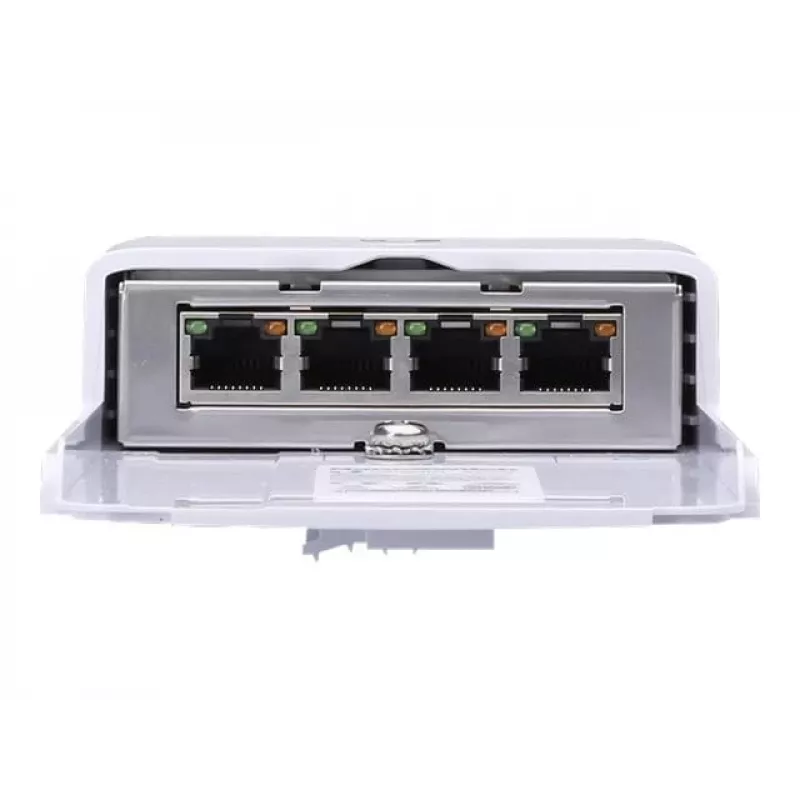

• Ports: 4 × RJ-45 Gigabit Ethernet (10/100/1000)
• PoE: 24 V Passive PoE input; PoE pass-through with up to 24 W available on three PoE out ports
• Switching capacity: 4 Gbit/s (non-blocking)
• Color: White
• Weight: 0.269 kg

How to use

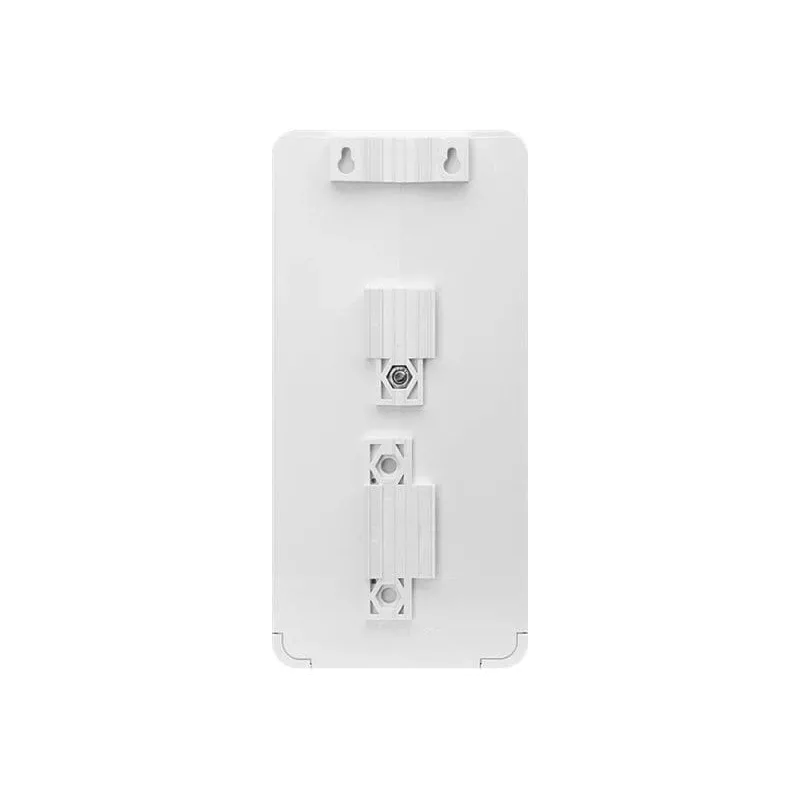

Mount the NanoSwitch in a suitable outdoor location following standard safety and grounding practices. Connect a 24 V passive PoE power source to the device’s power input. Plug network devices into the RJ-45 ports; PoE-capable devices will receive power via the three PoE out ports up to the available 24 W budget. Use standard Ethernet cables rated for outdoor use where required.

Recommendations

For reliable outdoor operation, install the NanoSwitch in a protected position to minimize direct exposure to extreme weather, use shielded outdoor-rated Ethernet cabling, and verify that connected PoE devices do not exceed the 24 W combined power budget for the PoE output ports.
