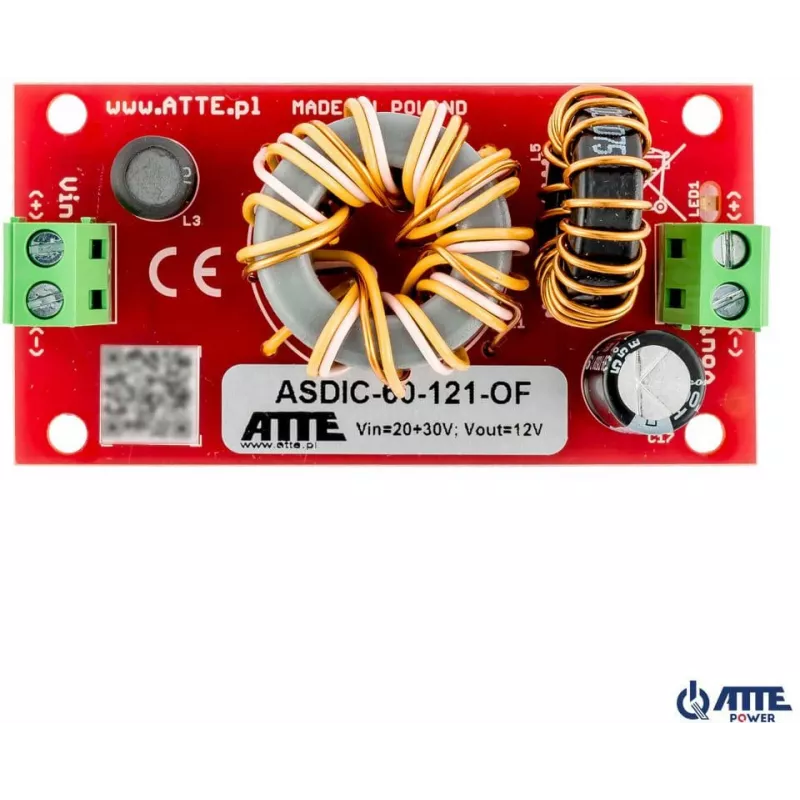

Convertidor DC/DC ATTE ASDIC-60-121-OF

The ATTE ASDIC-60-121-OF is a DC/DC converter module with galvanic isolation between input and output, providing a stable 12VDC output. It is designed for use in industrial television systems and other applications requiring galvanic isolation to eliminate interference in non-isolated DC power systems. The open frame construction allows installation in any enclosure, with dedicated ABOX series enclosures and mounting plates available.

Key features

• Galvanic isolation between input and output
• Stable 12VDC output voltage
• Eliminates interference in non-isolated DC power systems
• Compact module size
• Open frame (OF) construction for flexible installation
• Mounting via snap-on distance pins and mounting holes with 10.8 mm grid

Specifications

• Brand: ATTE
• MPN: ASDIC-60-121-OF
• Output voltage: 12VDC ±2%
• Input voltage: 20...30VDC
• Output power: 60 W @24V
• Efficiency: 90% @50W
• Isolation: 1.5kV
• Housing construction: None - module for installation
• Mounting: Snap-on distance pins, mounting holes in 10.8 mm grid
• Operating temperature: -20...+40°C
• Dimensions: 75 x 39 x 30 mm
• Weight: 0.051 kg
