Convertidor de medios de red Lanview LVN-MED-SFP+-10GB-X 10Gbps

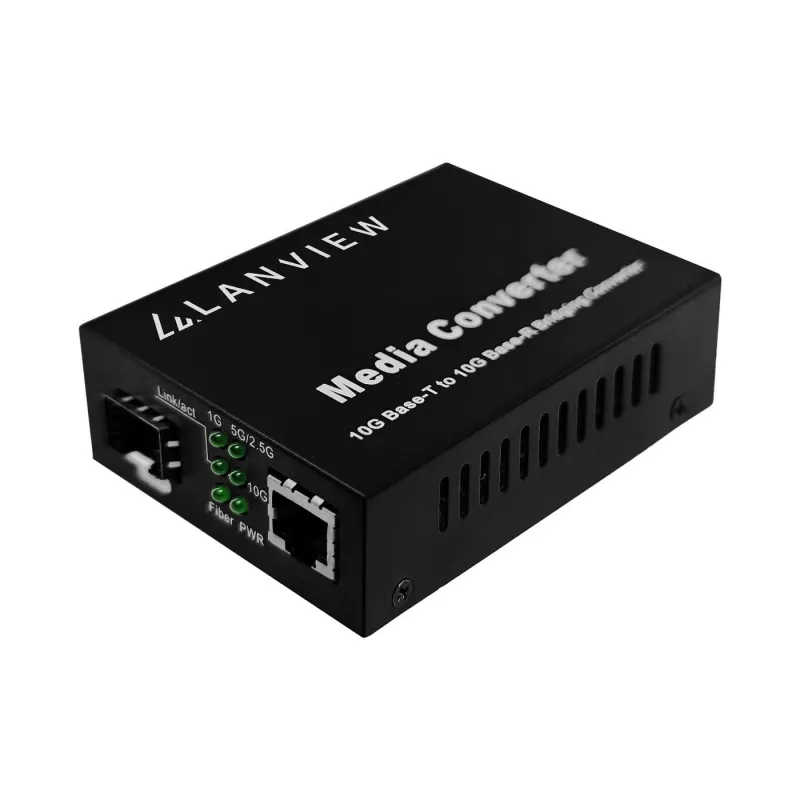

The Lanview LVN-MED-SFP+-10GB-X is a 10Gbps network media converter that enables Ethernet conversion between SFP+ fiber modules and UTP copper. It supports LC-type SFP+ transceivers for 850nm multimode, 1310nm single-mode and WDM fiber links, allowing data transmission over distances from short multimode links up to 0.55 km and long single-mode or WDM links up to 100 km. The device is suitable for standalone use or as part of module card installations to integrate fiber and copper segments at 10G speeds.

Advantages

The Lanview media converter provides straightforward, high-speed media conversion at 10Gbps with broad SFP+ compatibility, supporting common multimode, single-mode and WDM optics with LC connectors. It simplifies network design by enabling direct conversion between copper UTP and fiber SFP+ interfaces and supports both short- and long-distance fiber deployments depending on the transceiver used.

Suitable for

• Extending 10Gbps Ethernet links between copper and fiber segments
• Data centers and server rooms requiring SFP+ to UTP conversion
• Enterprise campus backbones using multimode or single-mode fiber
• Long-distance fiber links using single-mode or WDM SFP+ modules

Key specifications

• Speed: 10Gbps Ethernet media conversion
• Interfaces: SFP+ (LC-type) to UTP (copper)
• Optics supported: 850nm multimode, 1310nm single-mode, WDM SFP+
• Maximum fiber reach: up to 0.55 km (multimode) or up to 100 km (single-mode/WDM), depending on module
• Form factor: standalone converter or module card compatible
• Manufacturer: Lanview, MPN: LVN-MED-SFP+-10GB-X, EAN: 5715063521069

How to use

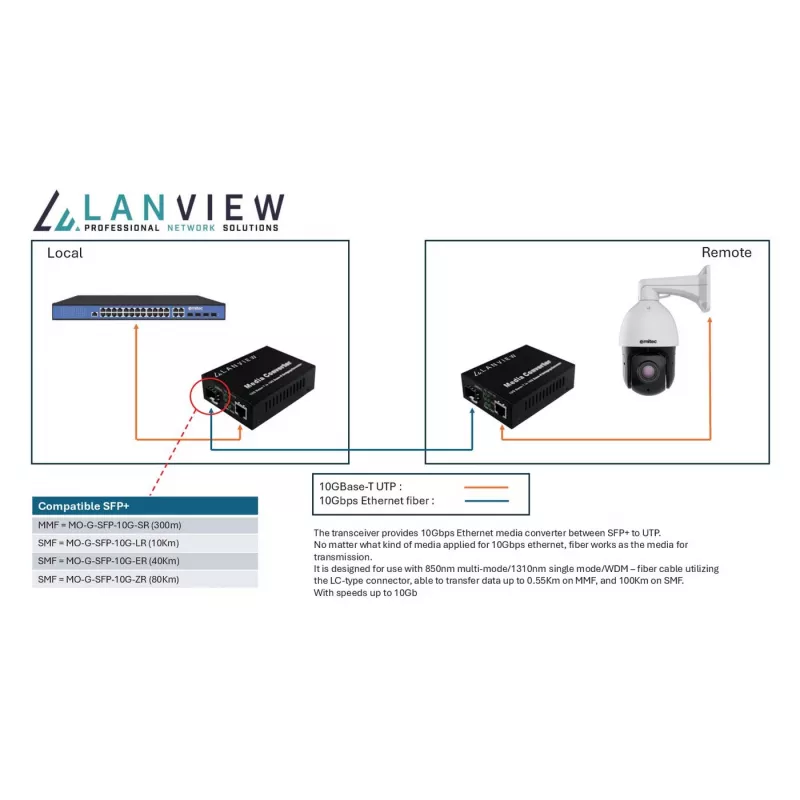

Install an appropriate SFP+ transceiver (850nm multimode, 1310nm single-mode or WDM) into the SFP+ slot of the Lanview LVN-MED-SFP+-10GB-X, then connect the fiber cable to the LC connector. Connect the copper UTP cable to the Ethernet port on the converter. Power the unit and verify link/activity LEDs to confirm a successful 10Gbps link. Choose the transceiver type that matches the required distance and fiber type for the link.

Recommendations

Use certified SFP+ modules matched to the fiber type and distance requirements, maintain clean LC connectors, and follow static-safe handling when installing transceivers. Verify compatibility with connected switches and network equipment that support 10Gbps SFP+ interfaces.
