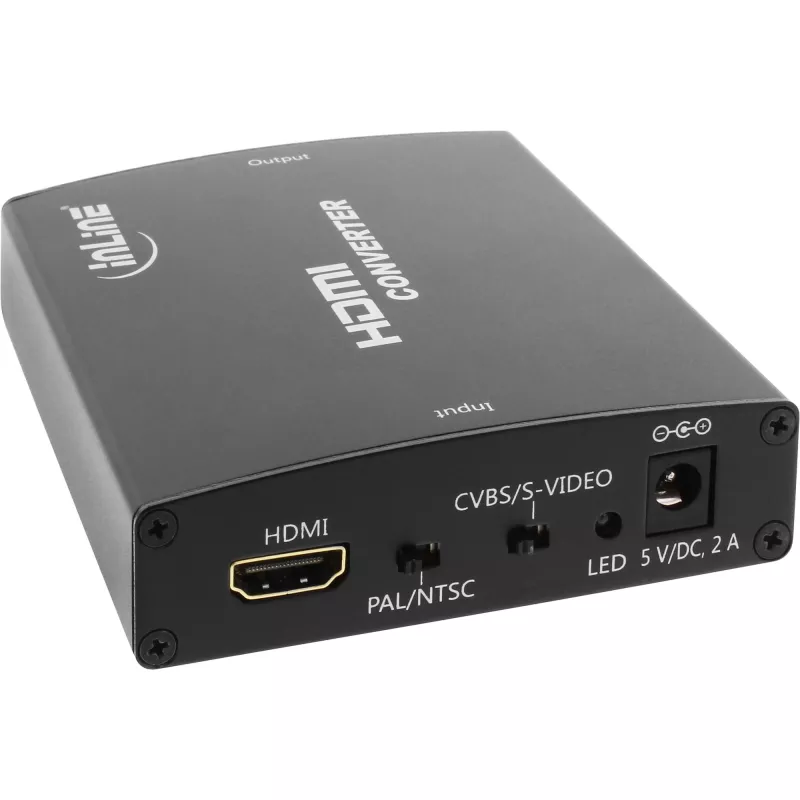

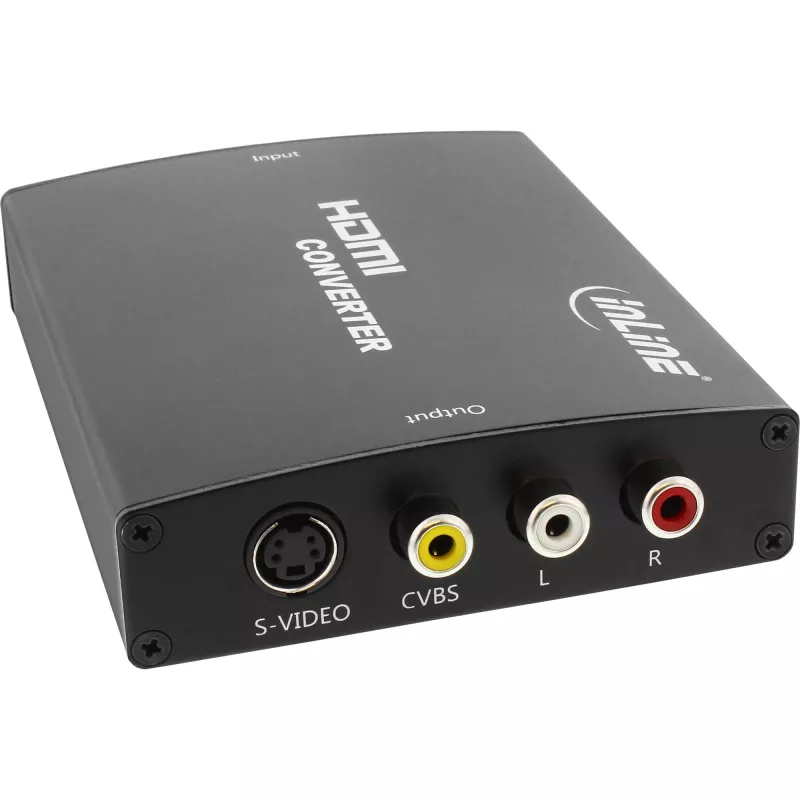

Convertidor InLine HDMI a S-Video + convertidor de audio RCA

HDMI to Composite and S-Video Converter with PAL/NTSC Switching

Flexible signal conversion:Reliably converts digital HDMI signals into analogue composite and S-Video signals as well as stereo audio, enabling the continued use of existing analogue infrastructure.
High format compatibility:Supports HDMI input resolutions up to 1080p at 50 Hz and 60 Hz and allows switching between PAL and NTSC for international applications.
Stable signal transmission:A defined video output impedance of 75 ohms ensures standard-compliant integration into existing video cabling.
Industrial-grade temperature range:Operational at ambient temperatures of -25 °C to 75 °C, making it suitable for demanding installation environments.
Compact design:A robust metal housing measuring 110 x 88 x 25 mm enables space-saving integration into racks or equipment cabinets.

In existing installations, analogue video transmissions such as composite or S-Video are often still in use. The HDMI-to-analogue audio/video converter enables the integration of modern HDMI sources into such environments without having to replace the existing cabling structure.
In retrofit projects, current HDMI output devices can be integrated into existing CVBS or S-Video infrastructures. The switchable PAL and NTSC output allows for flexible use in various video systems.
In technical testing or service environments, it may be necessary to convert digital HDMI signals into analogue formats. The defined output impedance of 75 ohms facilitates standard-compliant integration into existing video systems. Power is supplied via 5 V DC. HDCP-protected content is not converted.

HDMI 1.3 compatible
HDMI input resolution: 480p (60 Hz), 576p (50 Hz), 720p, 1080i, 1080p (50 Hz / 60 Hz)
Video output: PAL/NTSC selectable
Video output impedance: 75 ohms
Composite video output: 1.0 Vpp
S-video output: Y 1.0 Vpp, C 0.3 Vpp
Power supply: DC 5V
Dimensions: 110 x 25 mm (L x W x H)

InLine HDMI to S-Video Converter + RCA Audio Converter. Supported video modes: 1080i, 1080p, 480p, 576p, 720p, Product colour: Black. Weight: 372 g, Width: 82 mm, Depth: 118 mm. Package width: 178 mm, Package depth: 240 mm, Package height: 57 mm. Dimensions (WxDxH): 82 x 118 x 27 mm

How to use

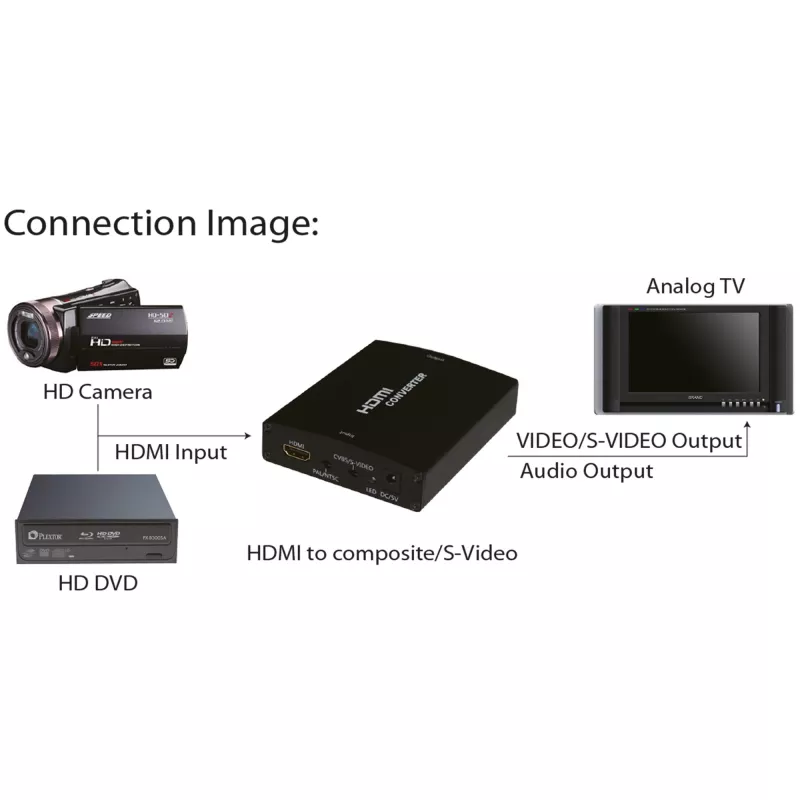

Connect the HDMI source device to the converter's HDMI input using a standard HDMI cable. Use the composite (RCA) or S-Video output to connect to the target display or recording device; connect RCA audio outputs to speakers or an audio input if required. Power the converter as instructed by the manufacturer (use the provided adapter or specified power source). Select the appropriate video input on the display and the correct NTSC or PAL format if your display requires manual selection.

Recommendations

For best results, use high-quality HDMI and analog cables and verify the target display supports the chosen video system (NTSC or PAL). When connecting devices with HDCP-protected content, playback may be restricted; test compatibility before deployment.
