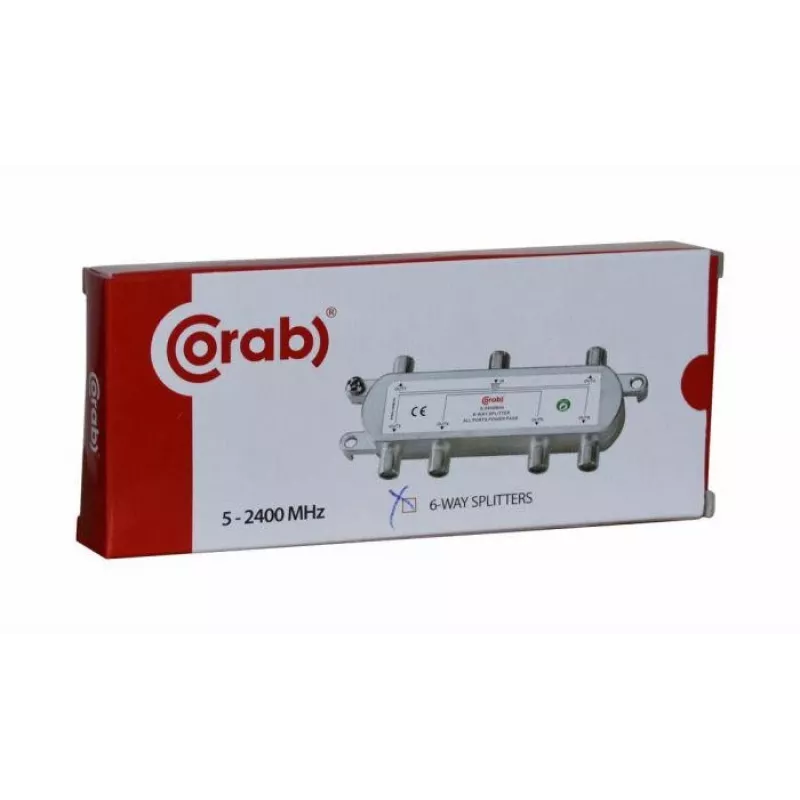

CORAB Distribuidor de señal TV/SAT de 6 vías 5-2400 MHz con paso DC

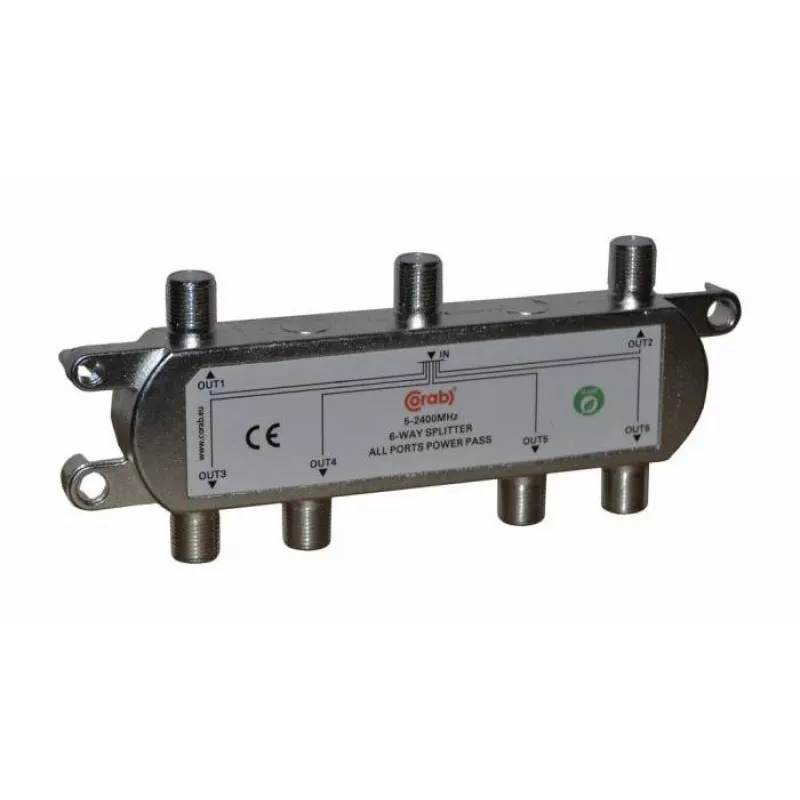

The CORAB Y_SPL0004 is a high-performance 6-way TV/SAT signal splitter designed for distributing satellite and terrestrial television signals. With a wide frequency range of 5-2400 MHz, it supports DVB-T, DVB-S, DVB-C, FM, and DAB applications. The splitter features a DC power pass function, allowing power to be supplied from one output to the input, making it ideal for setups with active antennas or LNBs.

Advantages

This splitter ensures minimal signal loss and high isolation between outputs, guaranteeing reliable signal distribution for multiple devices. Its die-cast zinc housing provides durability and effective shielding against interference.

Suitable for

• Distributing TV and SAT signals to up to 6 devices
• Home entertainment systems with multiple receivers
• Professional installations requiring reliable signal splitting

Key specifications

• Frequency range: 5-2400 MHz
• Number of outputs: 6
• Impedance: 75 Ohm
• Connector type: F-type female
• Insertion loss: 11.5-15 dB depending on frequency
• Isolation: >15-20 dB depending on frequency
• DC power pass: Yes (max 500 mA, 24 V)
• Housing material: Die-cast zinc

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper cable termination. This splitter is not suitable for HDMI signals.
