DIGITUS Splitter HDMI 1x2 4K/60Hz HDCP 2.2 Control EDID

The DIGITUS 4K HDMI Splitter (1x2) duplicates an HDMI source to two displays — TVs, monitors or projectors — supporting up to 3840 x 2160 (4K) at 60 Hz with HDMI 2.0 capability. The compact metal-cased device provides 18 Gbps video bandwidth, HDR and HDCP 2.2 support, and accepts power via the included Micro USB cable. EDID management offers Auto, Copy and Downscaler modes; the Downscaler allows 4K content to be output to Full HD screens and the splitter can drive a 4K and a Full HD display simultaneously.

Advantages

The splitter mirrors one HDMI input to two outputs without manual configuration thanks to Auto-EDID, and supports high-quality video features such as HDR, Deep Color (36-bit) and HDCP 2.2. With EDID modes (Auto/Copy/Downscaler) it ensures compatibility across mixed-resolution displays. The metal housing and compact dimensions (approx. 90 × 44 × 14 mm) make it suitable for installation in conference and AV setups, and power via Micro USB increases installation flexibility.

Suitable for

• Presentations in meeting rooms and conference halls
• Duplicating video signals to two TVs or monitors
• Connecting one media player or laptop to two displays simultaneously
• Situations requiring 4K output or downscaling to Full HD

Key specifications

• Model: DIGITUS 4K HDMI Splitter 1x2 (DS-55336)
• Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
• HDMI version: HDMI 2.0
• Video bandwidth: 18 Gbps
• HDR support and Deep Color (36-bit)
• HDCP 2.2 support
• EDID modes: Auto / Copy / Downscaler
• Power supply: Micro USB cable (included), typical consumption ~5 W
• Product colour: Grey; weight: 0.09 kg; housing: metal

How to use

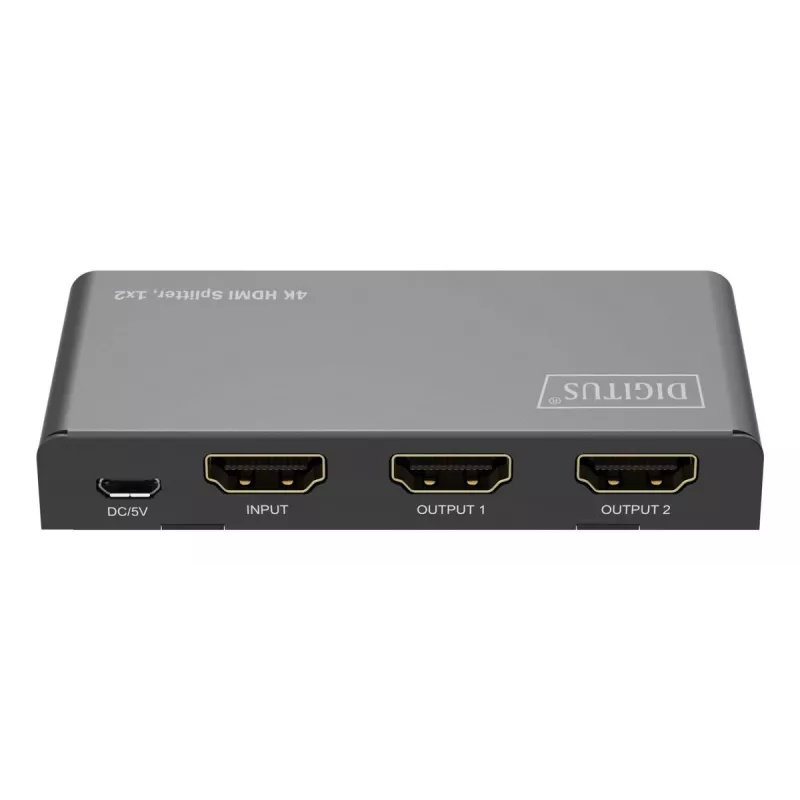

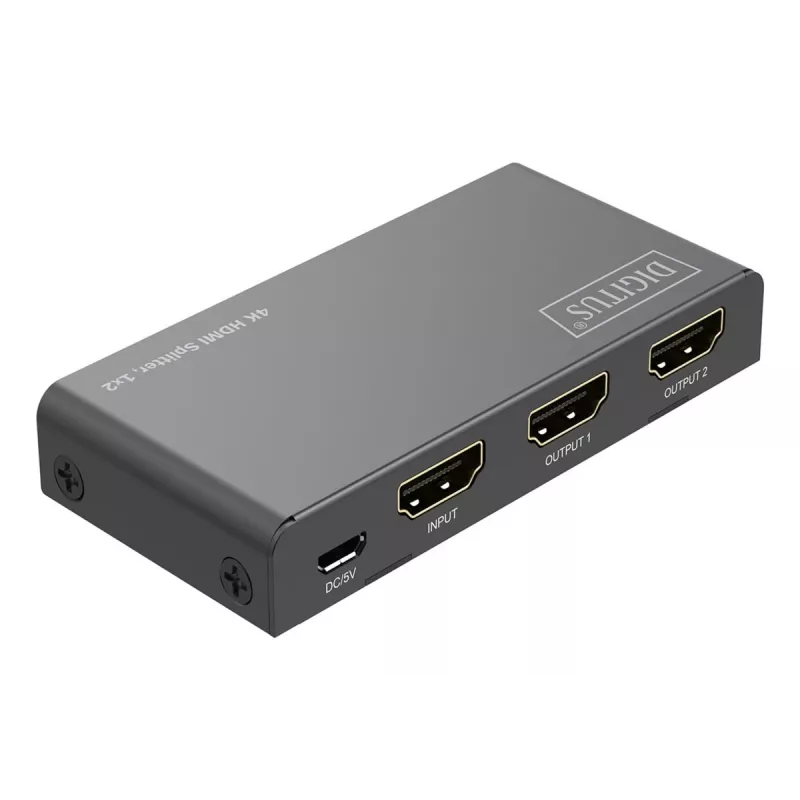

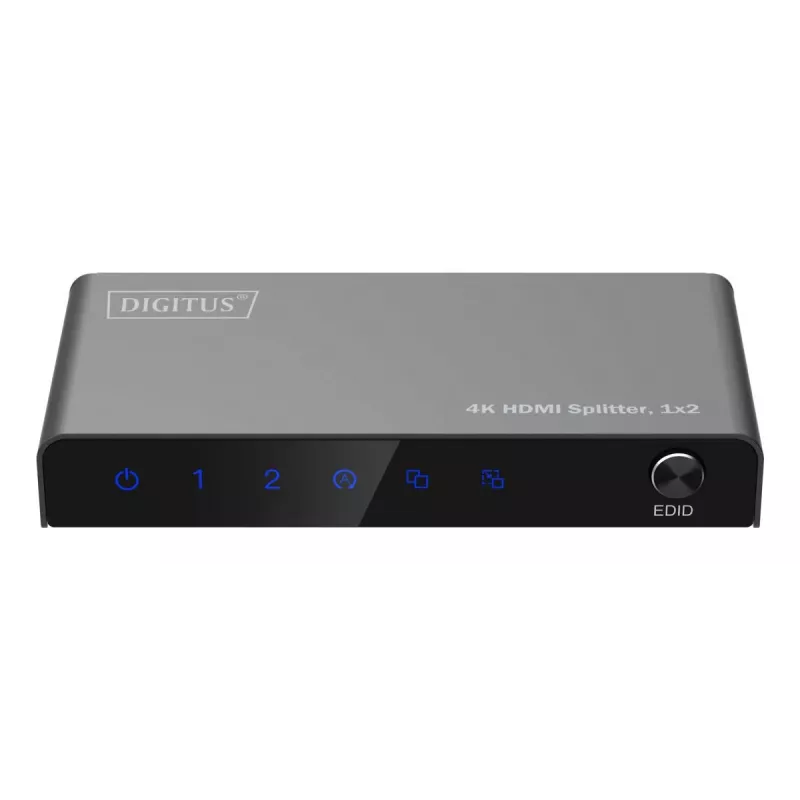

Connect your HDMI source (e.g., laptop, Blu-ray player or media box) to the splitter's input, then connect up to two HDMI displays to the outputs. Supply power to the unit using the included Micro USB cable connected to a USB port or USB power adapter. The device will try Auto-EDID by default; if needed, change the EDID mode to Copy or Downscaler to match display capabilities or to downscale 4K to Full HD.

Recommendations

For stable 4K@60Hz performance use high-quality HDMI 2.0 cables and ensure the source device and displays support the intended formats. When operating mixed-resolution displays, select the Downscaler EDID mode if Full HD outputs are required.
