CORAB USL-48/300AL Soporte de pared en esquina para antena parabólica, aluminio, tubo de 48 mm, brazo de 300 mm

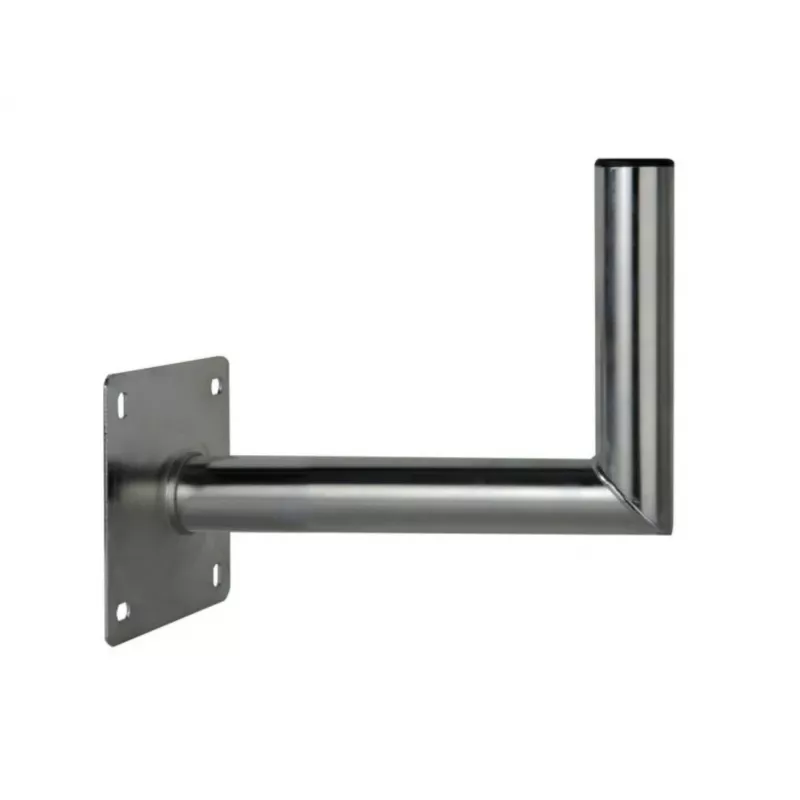

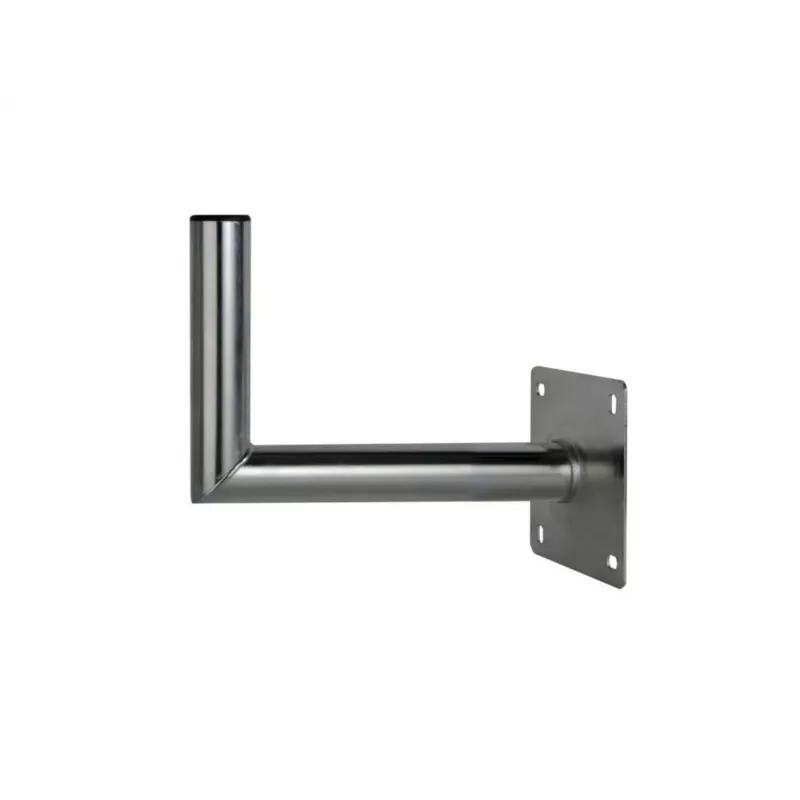

The CORAB USL-48/300AL is a robust corner wall mount bracket designed for secure installation of satellite dishes, terrestrial TV antennas, and internet antennas. Crafted from high-quality aluminum, this bracket offers excellent corrosion resistance and durability for outdoor use. With a 48 mm pipe diameter and 300 mm arm length, it provides a stable mounting solution for dishes up to 90 cm in size.

Advantages

Made from lightweight yet strong aluminum, the USL-48/300AL ensures long-lasting performance in harsh weather conditions. Its corner wall mount design allows for optimal positioning, maximizing signal reception. The welded construction adds extra strength, while the natural aluminum finish blends seamlessly with outdoor environments.

Suitable for

• Satellite dishes up to 90 cm
• Terrestrial TV antennas
• Internet antennas
• Outdoor installations requiring a corner wall mount

Key specifications

• Mounting Type: Corner Wall Mount
• Material: Aluminum
• Pipe Diameter: 48 mm
• Arm Length (Offset from Corner): 300 mm

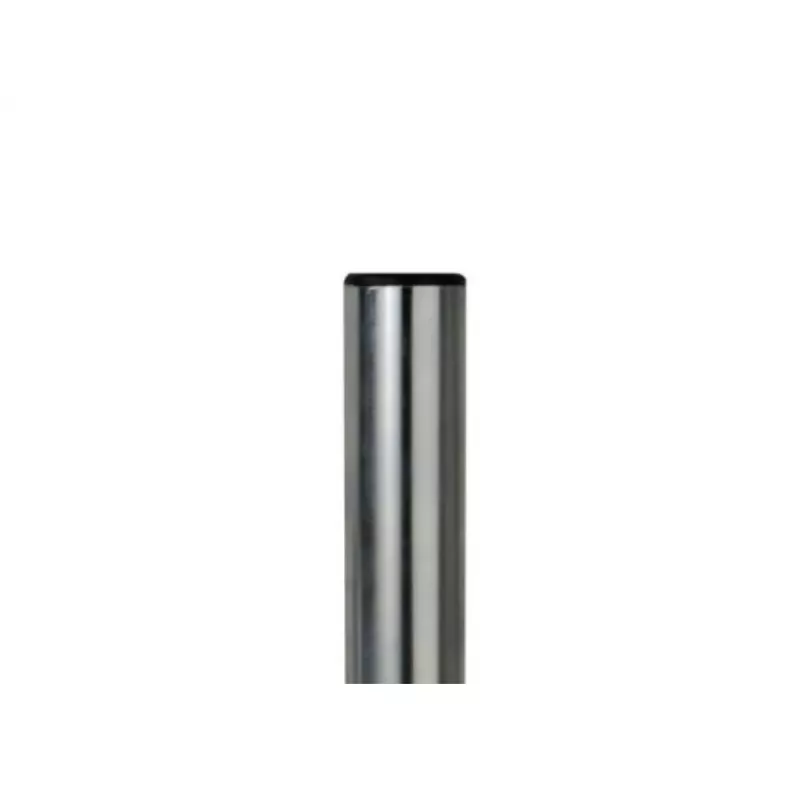

• Vertical Pipe Height: 300 mm

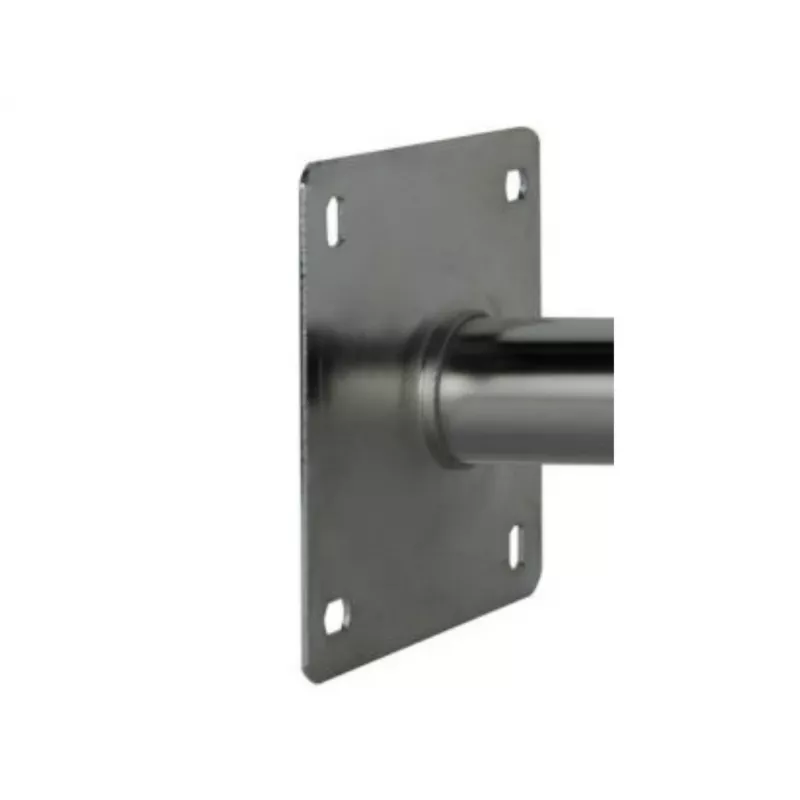

• Base Plate Dimensions: 200 x 200 mm (L-shaped)
• Number of Wall Mounting Points: 4
• Corrosion Resistance: High
• Recommended Dish Size: Up to 90 cm
• Finish: Natural Aluminum
• Installation Environment: Outdoor

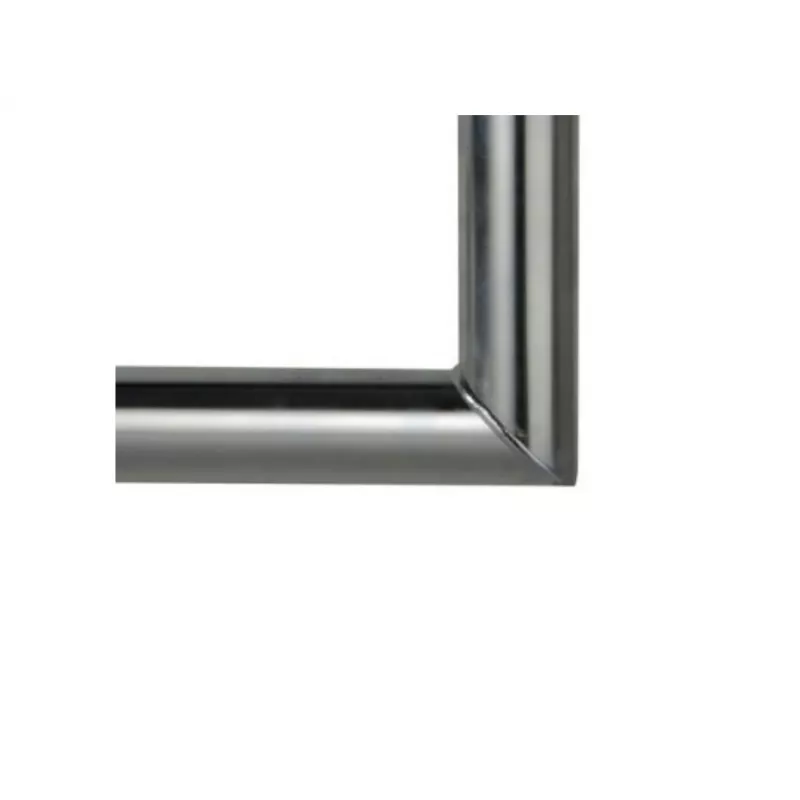

• Construction Method: Welded
• Mounting Hardware Included: No

Recommendations

For optimal performance, ensure the mounting surface is solid and capable of supporting the weight of the dish and bracket. Use appropriate hardware (not included) for installation. Regularly inspect the bracket for signs of wear or corrosion, especially in coastal areas.
