Cuadro eléctrico AC EMITER hermético IP65 con protector contra sobretensiones AC Noark tipo 2, 40A trifásico, RCD tipo A 63A/300mA

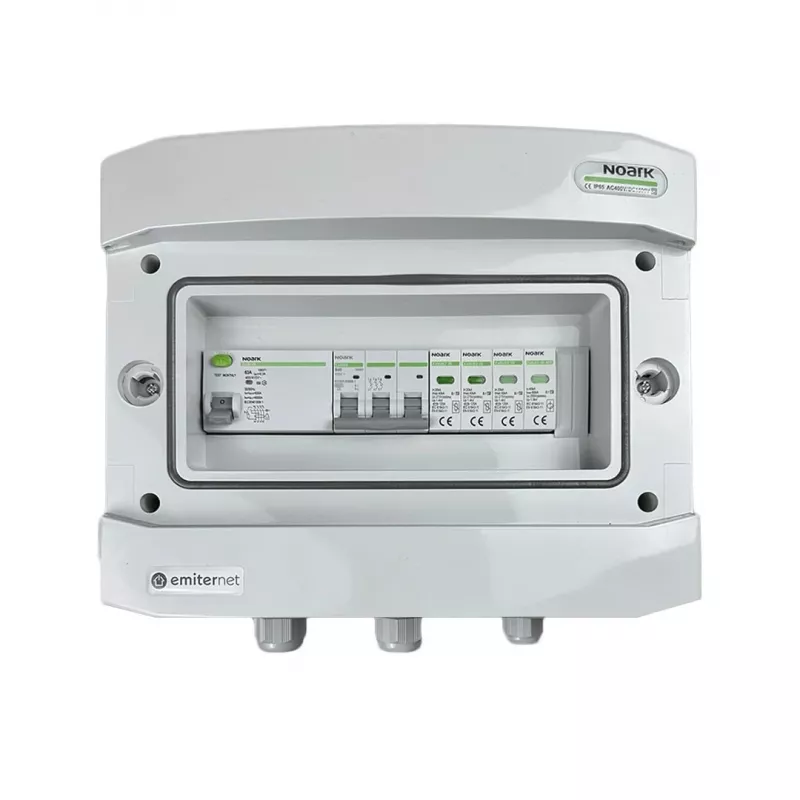

The EMITER Switchgear Attached AC Hermetic IP65 is a combined electrical protection unit designed for outdoor and industrial environments. It integrates a 40A 3-phase main switch, a Type 2 surge protective device (SPD) from Noark, and a Type A residual current device (RCD) rated at 63A/300mA, all housed in a robust IP65 enclosure. This pre-wired unit ensures reliable protection against overvoltage, earth faults, and overcurrent, making it ideal for harsh conditions.

Advantages

This all-in-one solution simplifies installation and reduces space requirements. The IP65 rating provides dust-tight and water-jet protection, while the UV-resistant thermoplastic enclosure ensures long-term durability outdoors. The integrated surge arrester and RCD offer comprehensive safety for personnel and equipment.

Suitable for

• Outdoor power distribution
• Industrial installations
• Construction sites
• Agricultural facilities
• Temporary power supplies

Key specifications

• Product Type: Combined Electrical Protection Unit
• Enclosure IP Rating: IP65
• Enclosure Material: UV-resistant Thermoplastic
• Input Voltage: 230/400V AC
• Number of Phases: 3-Phase
• Main Circuit Breaker/Switch Rating: 40A
• Surge Protective Device (SPD) Type: Type 2
• Residual Current Device (RCD) Type: Type A
• RCD Rated Current: 63A
• RCD Rated Residual Operating Current (IΔn): 300mA
• RCD Poles: 4-Pole
• Mounting Type: Surface Mount
• Operating Temperature Range: -25°C to +55°C
• Protection Features: Overvoltage, Earth Fault, Overcurrent
• Internal Wiring: Pre-wired
• Terminal Type: Screw Terminals
• Standards Compliance: IEC/EN 61439-3, IEC/EN 61008-1, IEC/EN 61643-11
• Certifications: CE
• Application Environment: Outdoor, Industrial, Harsh Environments

Recommendations

For optimal protection, ensure installation by a qualified electrician. Regularly test the RCD function as per local regulations. This unit is designed for fixed installations and should not be used in mobile applications.
