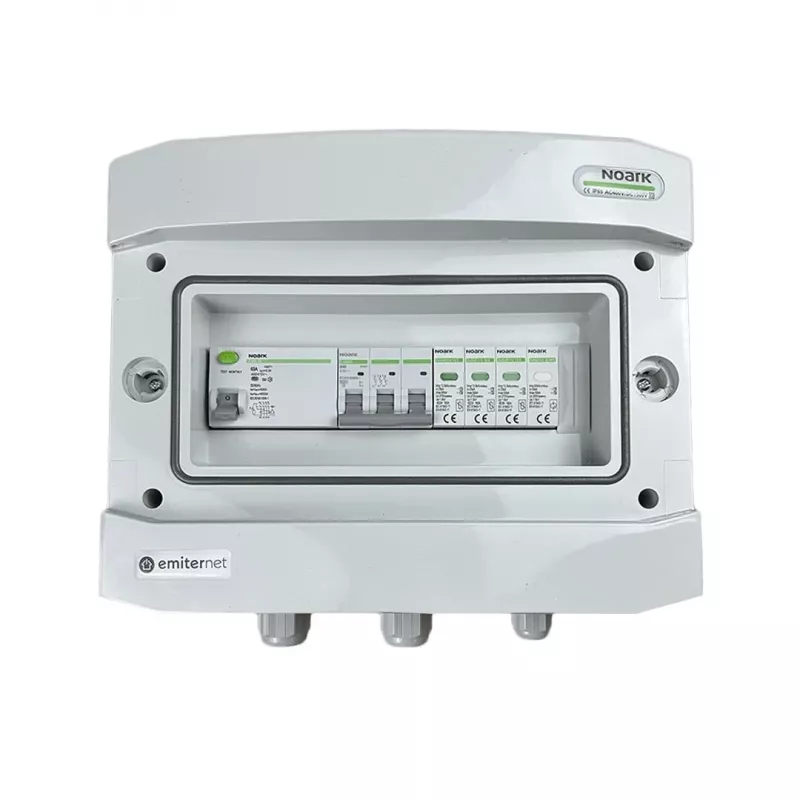

EMITER Cuadro eléctrico conectado AC Hermetic IP65 EMITTER con protector contra sobretensiones AC Noark Tipo 1+2, 40A trifásico, RCD Tipo A 63A/300mA

The EMITER Switchgear Attached AC Hermetic IP65 EMITTER is a pre-wired AC distribution board designed for outdoor and harsh environments. It integrates a Noark Type 1+2 surge protective device and a Type A residual current device (RCD) with 63A rated current and 300mA sensitivity, ensuring comprehensive protection for electrical installations.

Advantages

This distribution board offers robust protection against overvoltages and earth faults, with a hermetic IP65 enclosure that withstands dust and water jets. The integrated surge arrester and RCD simplify installation and reduce the need for additional components.

Suitable for

• Outdoor electrical installations requiring high ingress protection
• Industrial and commercial buildings with 3-phase power supply
• Applications needing Type 1+2 surge protection and Type A RCD

Key specifications

• Product Type: Pre-wired AC Distribution Board
• Enclosure Protection Rating: IP65
• Enclosure Type: Hermetic / Sealed
• System Type: AC (Alternating Current)
• Phase Configuration: 3-Phase
• Main Current Capacity: 40 A
• Surge Protective Device (SPD): Integrated, Type 1 + Type 2, Noark brand
• Residual Current Device (RCD): Integrated, Type A, 63 A, 300 mA sensitivity
• Mounting Type: Surface-mounted
• Application Environment: Outdoor / Harsh Environments
• Voltage Compatibility: 230/400V AC
• Compliance: CE

Recommendations

Ensure proper installation by a qualified electrician. Verify that the system voltage and current ratings match the distribution board specifications.
