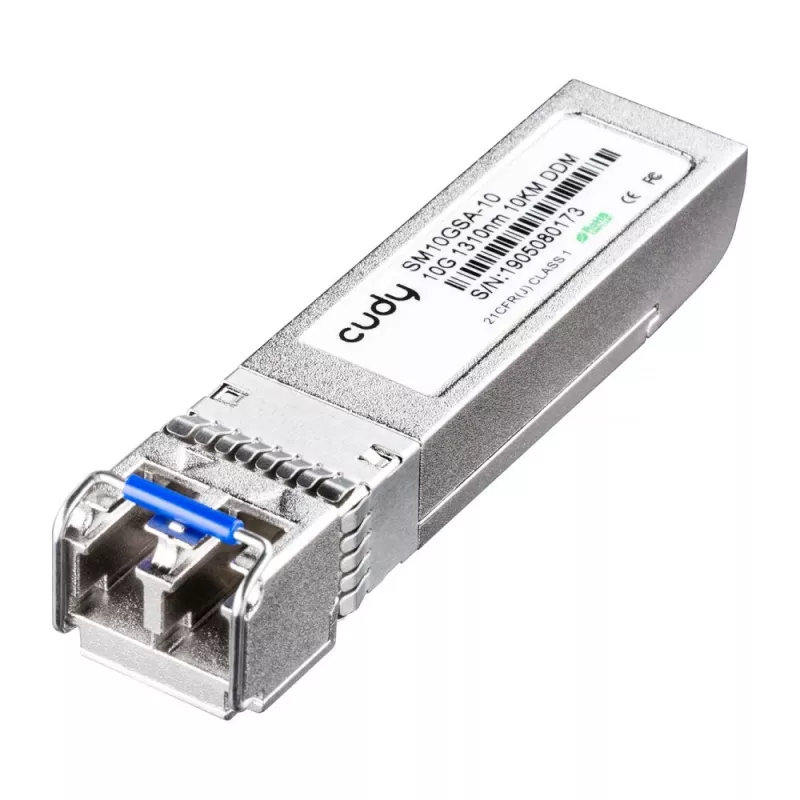

CUDY SM10GSA-10 módulo SFP+ 10Gbps LC SMF 10km 1310nm

The CUDY SM10GSA-10 is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet applications over single-mode fiber. It delivers reliable, high-speed connectivity for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This module offers a cost-effective solution for 10G network deployments, featuring low power consumption (<1.0W), hot-pluggable design, and Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Its robust zinc alloy housing ensures durability and EMI protection.

Suitable for

• 10 Gigabit Ethernet networks (10GBASE-LR)
• Data center interconnects
• Enterprise and campus backbone links
• Telecommunications and ISP infrastructure

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: Duplex LC
• Protocol: 10GBASE-LR
• DDM/DOM Support: Yes
• Laser Type: DFB (Distributed Feedback Laser)
• Transmit Power: -6.5 to -0.5 dBm
• Receive Sensitivity: <-14.4 dBm
• Power Consumption: <1.0 W
• Operating Temperature: 0 to 70°C
• Storage Temperature: -40 to 85°C
• Hot-Pluggable: Yes
• Compatibility: MSA Compliant, compatible with Cisco, Juniper, HP, Dell, etc.
• MTBF: >500,000 hours
• Housing Material: Zinc Alloy

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure proper handling to avoid damage to the optical ports. This module is ideal for extending network reach up to 10 km without signal degradation.
