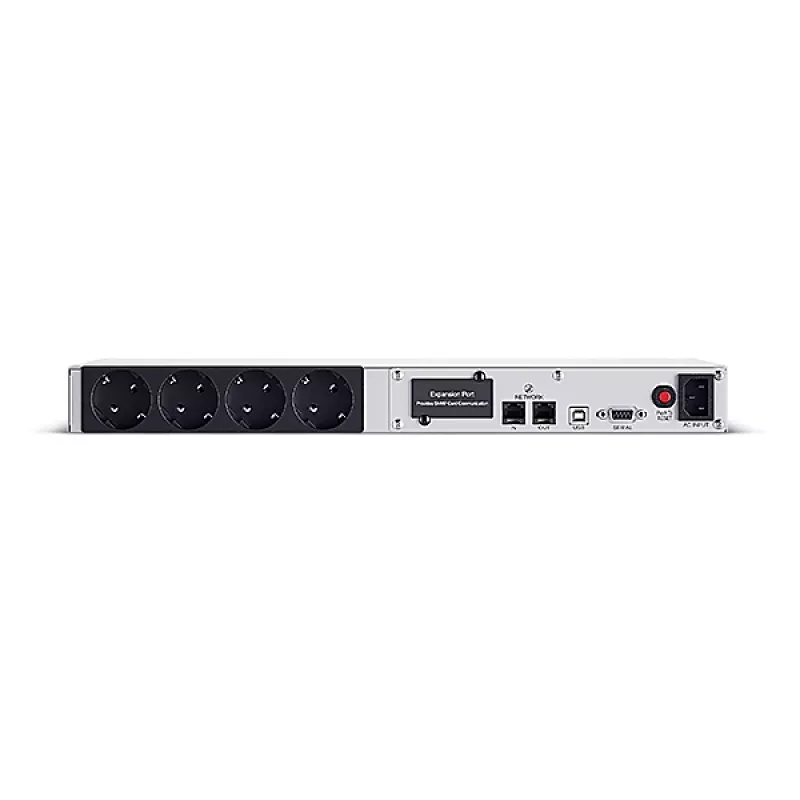

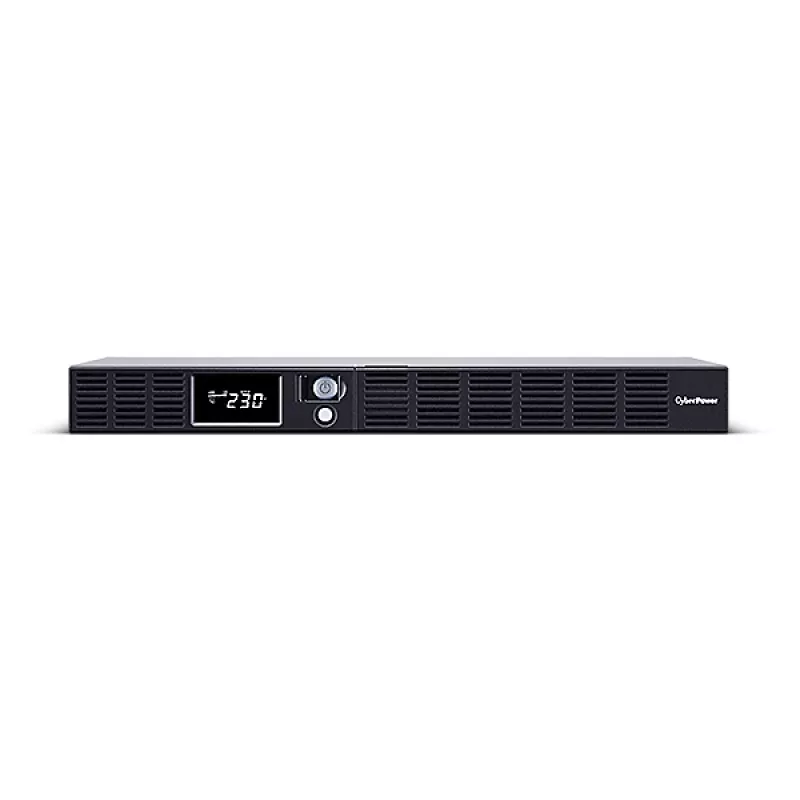

CyberPower OR650ERM1UGR SAI (sistema de alimentación ininterrumpida) Line-Interactive 0,65 kVA 360 W 4 salidas AC

The CyberPower OR650ERM1UGR is a line-interactive uninterruptible power supply (UPS) with a capacity of 0.65 kVA (360 W). Designed for rackmount or tower installation, it provides simulated sine wave output and includes a sealed lead-acid battery that offers up to approximately 13 minutes of runtime at half load. The unit is intended for office systems, workstations, networking devices and peripherals to maintain power during outages and protect equipment from surges.

Advantages

The UPS features a multifunction LCD that displays input and output voltages, load and battery levels, estimated battery runtime, overload warnings and a selectable silent mode. Convertible rackmount/tower design allows flexible installation in server rooms, back offices and data centers. Built-in network protection reduces the risk of damage to connected networking devices from lightning-induced power surges. The battery supports hot-swapping to allow maintenance without significant interruption to protected equipment.

Suitable for

• Office PCs and workstations
• Network devices such as switches and routers
• Peripherals and small server or rack equipment
• Back office, server room and small data center environments

Key specifications

• Output power: 360 W
• Capacity: 0.65 kVA
• Output waveform: Simulated sine wave
• Outlets: 4 AC outlets
• Battery type: Sealed lead-acid battery
• Typical runtime: up to ~13 minutes at 50% load
• Form factor: Rackmount / tower convertible
• Weight: 7.8 kg
• Colour: Silver
• Certifications: CE, EAC, RCM, RoHS

How to use

Install the UPS in rack or tower orientation according to the included installation guide, connect critical equipment to the protected AC outlets, and leave non-critical devices unplugged. Ensure the UPS is connected to a grounded AC mains outlet and power it on to allow the battery to charge fully before relying on backup runtime. Use the multifunction LCD to monitor input/output voltages, load percentage and battery status. When battery replacement is required, follow hot-swap procedures to replace the sealed lead-acid battery while maintaining power to connected devices where supported.

Recommendations

Place the UPS in a ventilated, temperature-controlled environment, avoid exposure to moisture and excessive dust, and periodically test the unit and battery under load. For critical systems, configure orderly shutdown software or procedures to run during extended outages to prevent data loss.
