CyberPower PDU24005 Unidad de distribución de energía (PDU) 10 salidas AC 1U Negra

CyberPower PDU24005 is a rack-mountable metered power distribution unit designed to deliver conditioned power from a UPS, generator, or utility source to multiple devices. The unit provides 10 AC outlets (mix of C13 and C19 couplers) and includes a 3.05 m power cord. With dual input capability, the ATS-enabled PDU accepts two power sources and automatically transfers load between them if one source fails or exceeds set thresholds, maintaining continuous operation for connected equipment.

Advantages

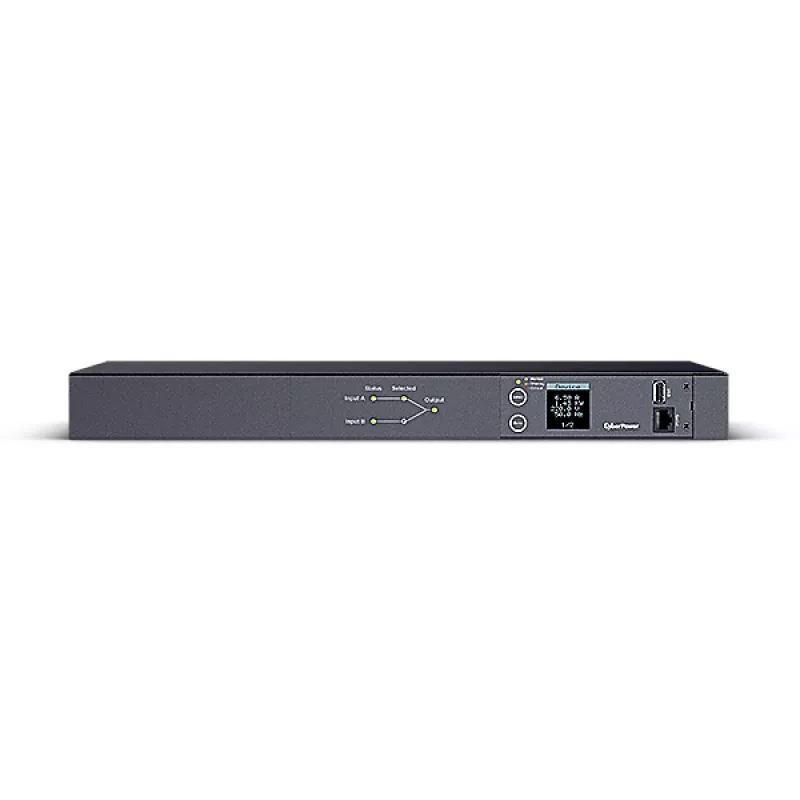

The PDU24005 features a hot-swappable multifunction digital LCD that shows real-time current, input voltage and power consumption in amps and watts, and allows color configuration for easy identification of device groups. Firmware upgrades can be performed via the USB port, and a serial port enables local control when connected to a PC. The unit is compact 1U form factor, rated for up to 12 A at a nominal 200–240 V and suitable for standard 50/60 Hz environments.

Suitable for

• Server racks and data center cabinets requiring metered power distribution
• Edge and telecom closets where source redundancy is needed
• IT equipment that must remain powered during source switching

Key specifications

• AC outlets quantity: 10 AC outlet(s) (C13 and C19)
• Maximum current: 12 A
• Nominal input voltage: 200–240 V
• Frequency: 50/60 Hz
• Cable length: 3.05 m
• Form factor: 1U, rack-mount
• Product colour: Black
• Weight: 3.2 kg
• MPN: PDU24005, EAN: 4711027799797

How to use

Install the PDU24005 in a standard 19-inch rack occupying 1U of space and secure it according to rack-mounting instructions. Connect the two input power cords to separate power sources if redundancy is required, or use a single source if not. Plug IT equipment into the C13/C19 outlets. Use the multifunction LCD to monitor real-time current, voltage and power consumption; change the display color to categorize connected devices. For local control or monitoring, connect the PDU to a PC via the serial port. Update firmware through the USB port following the manufacturer’s upgrade procedure.

Recommendations

For reliable operation, verify that the combined load of connected devices does not exceed the 12 A rating and ensure proper grounding. Regularly check the LCD readout for abnormal voltage or current readings and apply firmware updates when available to maintain compatibility and feature improvements.
