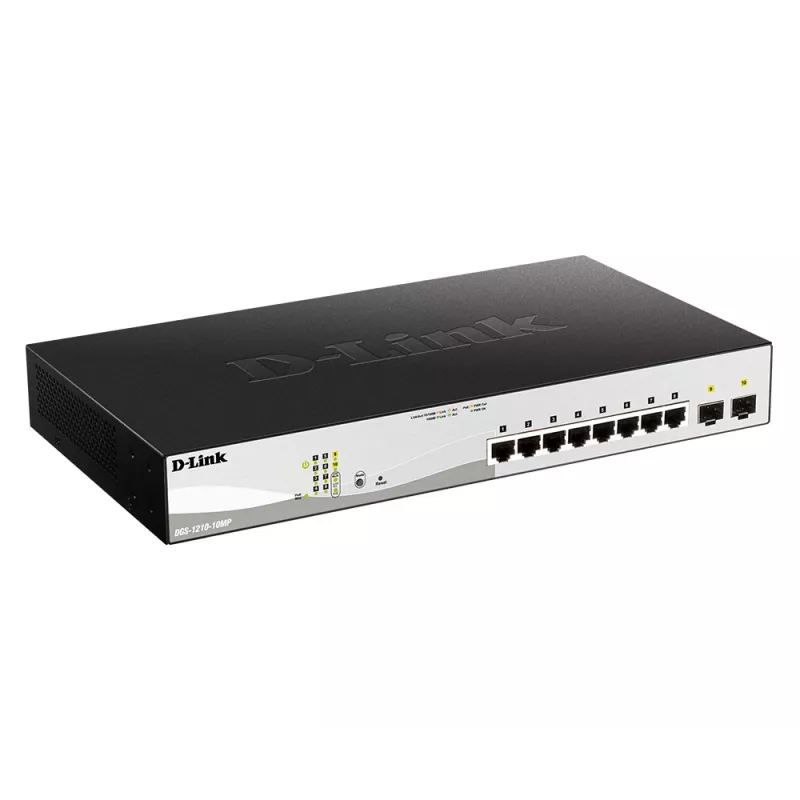

D-Link DGS-1210-10MP Gestionado L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Negro, Gris

Static Routing
Route Layer 3 traffic between switches, even if they're segmented in VLANs.

Fibre Uplink Ports
Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.

Surveillance Mode Interface
D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.

PoE Capable
Up to 370 W PoE output per switch

VLANs
Segment your network into VLANs.

Dual Image
Risk-free configuration testing.

Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

This product is compatible with Nuclias Connect
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy-Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard, to replace faulty equipment quickly.

Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increase the lengths of warranties and further minimises downtime. You can even opt for our Same Business Day Service which guarantees the delivery of the replacement product within 4 hours of confirmation of product failure.

How to use

Choose the model that matches required port count and PoE budget, install the switch in a rack or on a flat surface, and connect uplinks using copper or SFP transceivers for fiber links. Use the web-based management interface, D-Link Network Assistant, or CLI/Telnet to configure VLANs, static routes, QoS and PoE settings. Enable Auto Voice VLAN or Surveillance Mode to automatically place VoIP devices or ONVIF cameras into dedicated VLANs. Use the PoE controls to remotely reboot powered devices or schedule power on/off windows as needed. Monitor link status and run cable diagnostics or loopback detection when troubleshooting.

Recommendations

For deployments with IP cameras or VoIP phones, select a PoE-capable DGS-1210 model and verify the model’s total PoE power budget against the connected devices’ requirements. Use Surveillance Mode for simplified camera management and enable 802.1X and ACLs to restrict unauthorized access. Keep firmware updated via the management tools and consider using D-View 7.0 for centralized monitoring in larger networks.
