DeLOCK 90140 Cable coaxial 1 m Mini FAKRA Z 4 x FAKRA Z Aqua negro

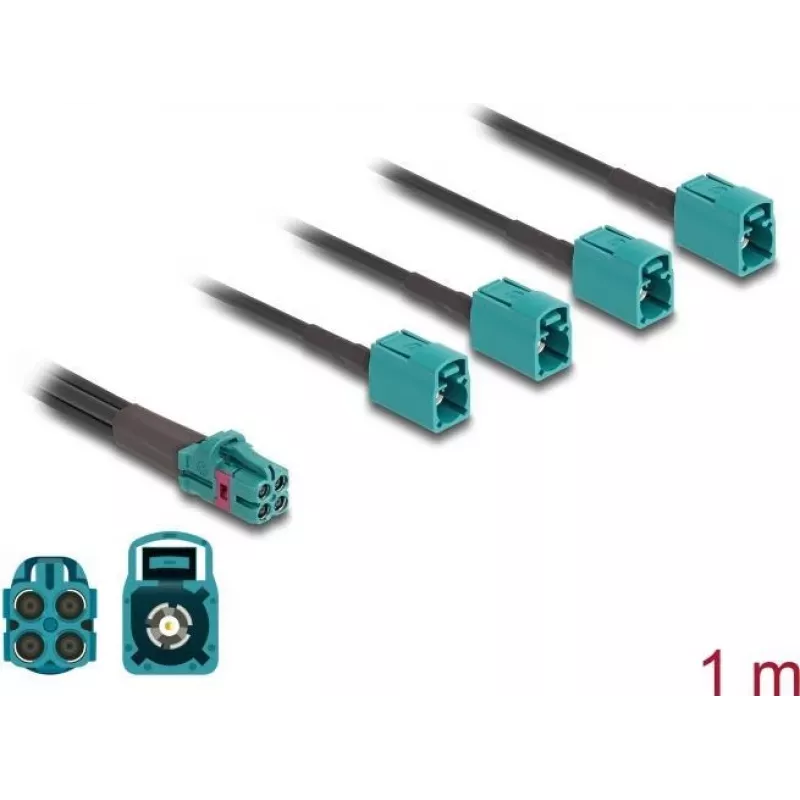

The DeLOCK 90140 coaxial cable is a 1 m cable with a Mini FAKRA Z connector on one end and four FAKRA Z connectors on the other, designed for reliable signal transmission in automotive and vehicle electronics. Its compact connector housings allow significant space savings while maintaining compatibility with standard FAKRA interfaces.

Advantages

Due to smaller housing dimensions at higher data rates, the Mini FAKRA Z and FAKRA Z connectors can reduce required installation space by up to 80% compared to standard FAKRA connectors. The cable supports tidy wiring and enables installation of multiple modules within limited spaces while preserving signal integrity for vehicle applications.

Suitable for

Key specifications

How to use

Connect the Mini FAKRA Z plug to the corresponding Mini FAKRA Z socket on the device and attach the four FAKRA Z plugs to the respective FAKRA Z sockets of the target modules. Ensure connectors are aligned before seating and press until they click to secure the connection. Route the cable to avoid sharp bends and secure it with suitable clips or ties to prevent strain on the connectors during vehicle operation.

Recommendations

Use this cable in automotive environments and follow vehicle manufacturer guidelines for connector mating and cable routing. Avoid excessive bending radii and protect the cable from heat sources and sharp edges to maintain signal quality and connector longevity.
