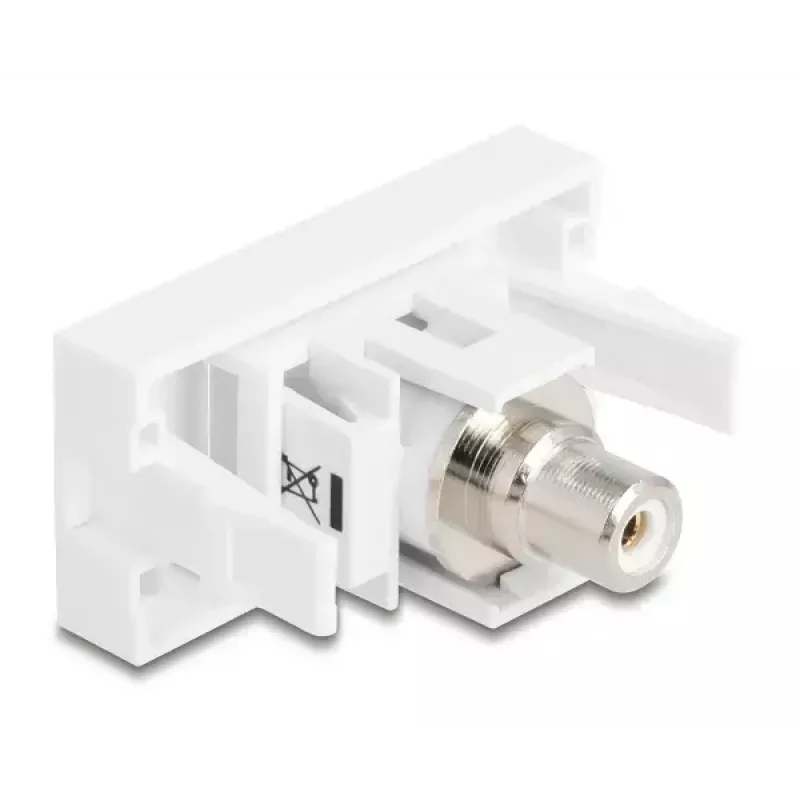

DeLOCK Módulo Keystone 90858 Plano Blanco Conector RCA 1

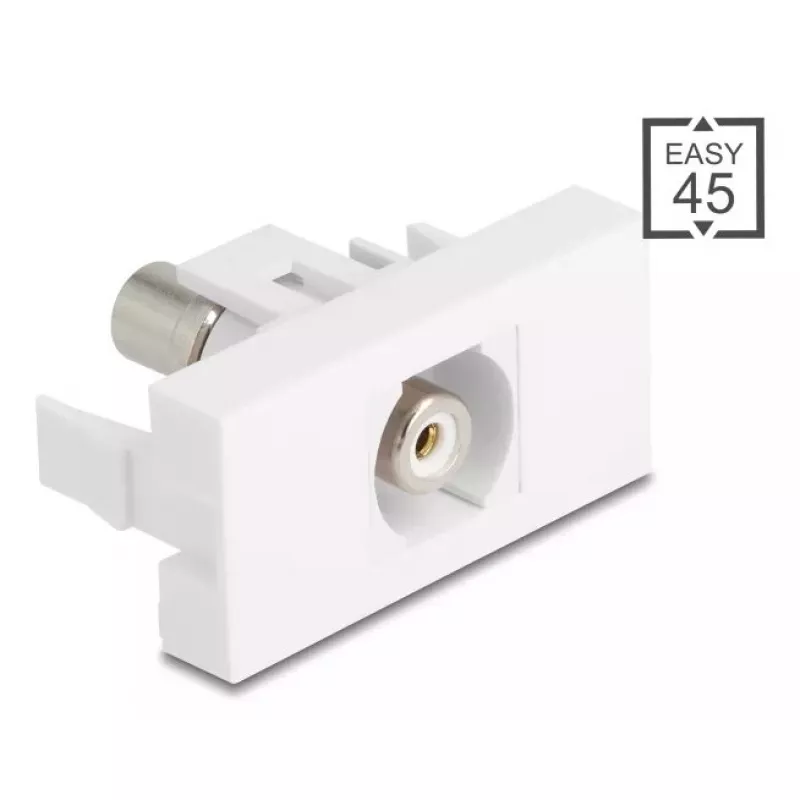

The DeLOCK keystone module 90858 is a flat white Easy 45 module that provides an RCA audio connector for integration into the Delock Easy 45 modular system. The snap-in mechanism secures the module in the Easy 45 holder and allows easy removal when required. Its compact dimensions (22.5 mm width, 45 mm depth, 33 mm height) make it suitable for installation in module holders and cable ducts used in electrical, network and AV installations.

Advantages

The module offers a standardized Easy 45 format for compatibility with a variety of holders and ducts, a flat white finish that blends with installation environments, and a single RCA connector for audio/video connections. It is supplied in a single-unit polybag and is easy to install or replace due to the simple snap-in mechanism.

Suitable for

Key specifications

How to use

Insert the keystone module into a compatible Delock Easy 45 module holder or cable duct until the snap-in mechanism locks it in place. Connect an RCA cable to the front connector for audio or video signal transmission. To remove, press the retention mechanism according to the holder instructions and pull the module out. Observe correct cable routing and secure connections to avoid strain on the connector.

Recommendations

Use this module within the Delock Easy 45 system and compatible holders. Ensure the module is fully seated in the holder before connecting cables and avoid excessive mechanical stress on the RCA connector. For clean signal transmission, use appropriately shielded RCA cables and maintain proper cable management inside the installation.
