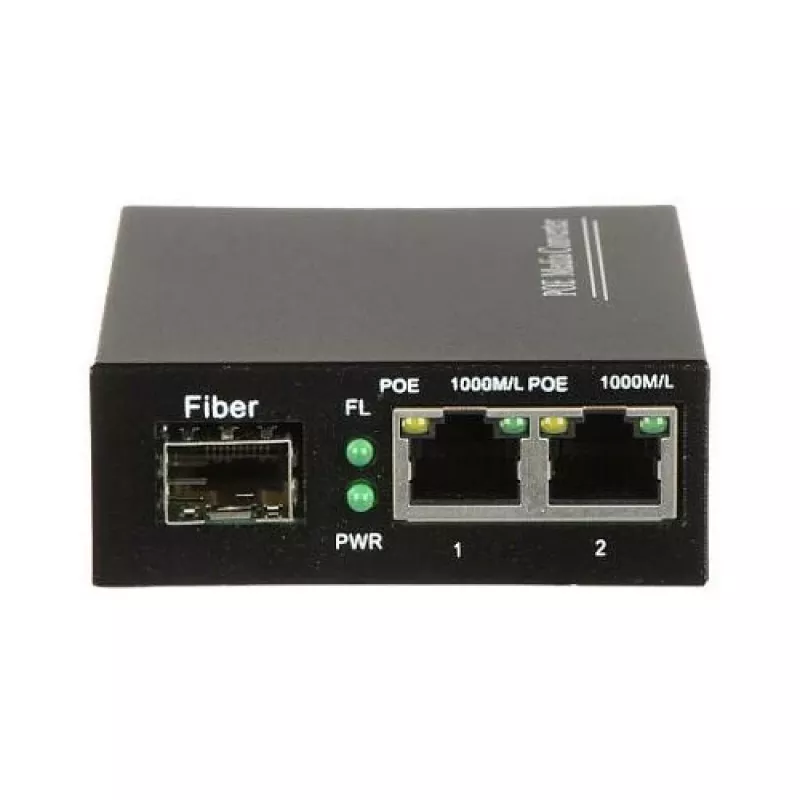

DELTA SPS-2P/1SFP Switch industrial PoE+, 2 Gigabit RJ45 + 1 SFP, presupuesto 60W, carril DIN

Where most compact switches stop at simple connectivity, the DELTA SPS-2P/1SFP pushes into true industrial PoE territory: two Gigabit RJ45 ports that deliver up to 30 W each, plus a Gigabit SFP uplink for fiber-distance reach, all in a housing built for DIN rail or wall mounting. It is an unmanaged, plug-and-play unit that turns a 48–55 V DC supply into a reliable 60 W PoE budget — no configuration needed, just power and go.

Highlights

• 2 × 10/100/1000 Mbps RJ45 ports with IEEE 802.3af/at PoE+ (30 W per port)
• 1 × 1000 Mbps SFP slot for fiber uplink or long-distance copper via SFP module
• Total PoE budget 60 W with 48 V DC input — powers cameras, access points, sensors
• Industrial design: -10 °C to +50 °C operating range, DIN rail and wall mount included
• 6 Gbps switching capacity, 4.46 Mpps forwarding rate, 2K MAC table, 9K jumbo frames
• Protection against overload, short circuit, and surge; LED indicators for power, link/activity, and PoE status

In daily use

This switch fits where space and power are tight: a control cabinet, a security enclosure, or a factory floor. Connect two PoE devices — such as IP cameras or wireless access points — and use the SFP slot to link back to the core network over fiber, eliminating distance limits. The terminal block input accepts 48–55 V DC, common in industrial power systems, and the switch automatically negotiates PoE class with each device. Because it is unmanaged, there is no software to learn; LEDs give immediate feedback on power, link, and PoE status. The rugged metal housing and wide temperature tolerance keep traffic flowing even in demanding environments.

Full specifications

• Brand: DELTA
• Model: SPS-2P/1SFP
• EAN: 5902887059476
• Ethernet ports: 2 × 10/100/1000 Mbps RJ45
• SFP ports: 1 × 1000 Mbps SFP
• PoE standard: IEEE 802.3af/at (PoE+)
• Max PoE power per port: 30 W
• Total PoE budget: 60 W (with 48 V DC input)
• Switching capacity: 6 Gbps
• Forwarding rate: 4.46 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 9K
• Management type: Unmanaged
• Power input: 48 V DC to 55 V DC (terminal block)
• Operating temperature: -10 °C to +50 °C
• Mounting: DIN rail / wall mount
• Protection: overload, short circuit, surge
• LED indicators: power, link/act, PoE status

Final note

For integrators and installers who need dependable PoE in a small footprint, the SPS-2P/1SFP delivers exactly what its name promises: two powered ports and a fiber uplink, without the overhead of managed features.
