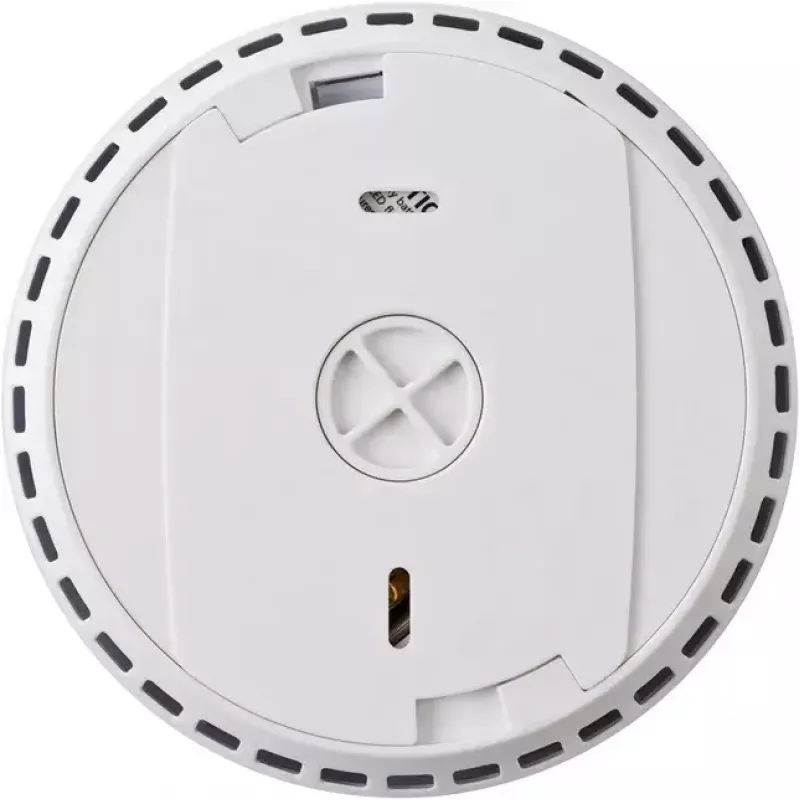

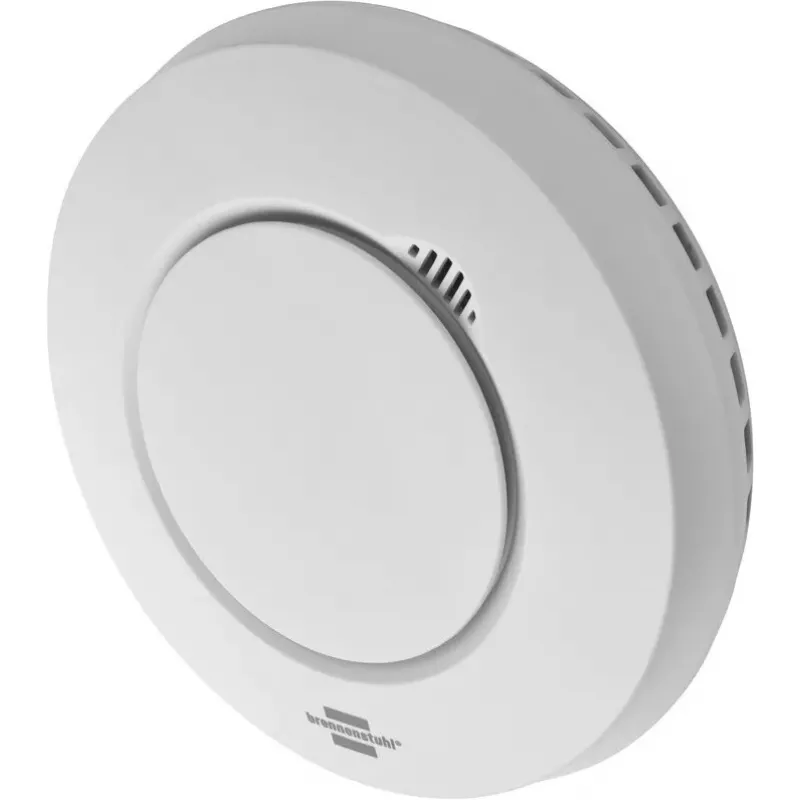

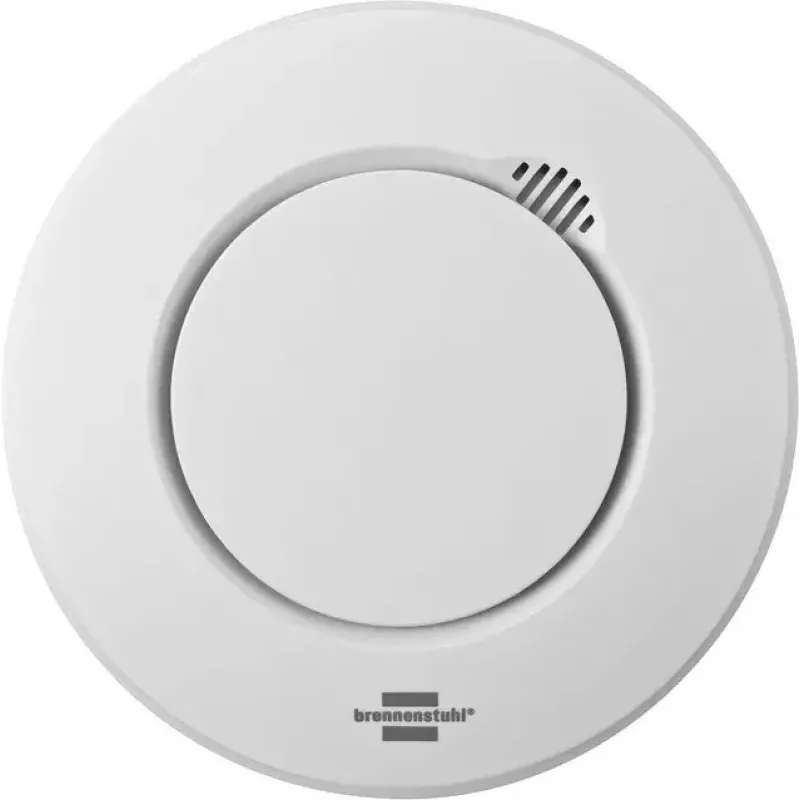

Detector de muestreo de aire Brennenstuhl 1294300

The Brennenstuhl 1294300 is a wireless air-sampling smoke detector designed for domestic and small-commercial spaces. It uses optical sensing to detect smoke particles drawn into the sensing chamber and communicates wirelessly with compatible alarm systems within a specified maximum range. The device features a compact round housing with a diameter of 12 cm and a low profile of 28 mm, and it is powered by readily available alkaline AA batteries. Lightweight and unobtrusive, the detector is intended to provide reliable early warning of smoke while being straightforward to install and maintain.

Advantages

The detector's wireless operation removes the need for hardwiring, simplifying placement and retrofit installation. Its air-sampling design enables continuous monitoring of the air near the unit for increased responsiveness to rising smoke levels. Compact dimensions and light weight make the unit easy to mount on ceilings or walls without specialized supports. Battery operation ensures function even where mains power is unavailable, and the use of standard AA alkaline cells allows for quick replacement.

Suitable for (tasks / use cases)

• Residential rooms such as bedrooms, living rooms and hallways
• Small offices and reception areas where wired installation is impractical
• Retrofit projects in rented apartments or older buildings
• Supplementary detection in kitchens and utility rooms when placed according to manufacturer guidance

Key specifications

• Detection principle: optical air-sampling smoke detection
• Wireless communication range: up to 100 m in open space (actual range depends on environment)
• Power supply: alkaline AA batteries
• Dimensions: diameter 12 cm, height 28 mm
• Weight: approximately 150 g
• Housing: compact, low-profile circular design suitable for ceiling or wall mounting

How to use

Choose a location on the ceiling or high on a wall away from drafts, vents and direct cooking sources to reduce false alarms. Install the mounting bracket according to the included instructions, insert fresh AA alkaline batteries observing polarity, and attach the detector to the bracket until it locks. If integrating with a compatible wireless alarm system, follow the system pairing procedure to register the device. Periodically test the detector using the test function specified by the manufacturer and replace batteries when the low-battery signal is indicated.

Recommendations

Place the unit in central areas of sleeping rooms and living spaces for optimal early detection; avoid locating directly above stoves, heaters or windows. Perform monthly functional tests and replace batteries at intervals recommended by the manufacturer or when the low-battery alert sounds. Keep the sensing inlet free from dust and paint; clean the exterior with a soft dry cloth and consult the manual for any specific maintenance instructions.
