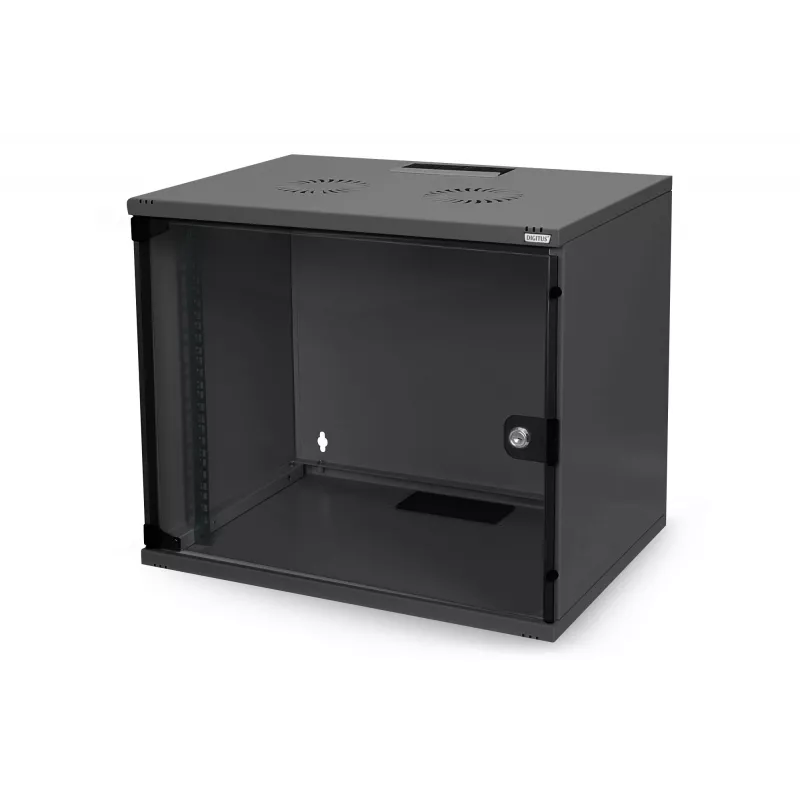

7HE Armario de montaje en pared sin montar 370X540X400 puerta de cristal negro

For installers and IT managers who need a compact, secure enclosure without the bulk of a fully assembled cabinet, the DIGITUS SOHO 7U wall mount rack arrives flat-packed to save storage space and shipping costs. This 19-inch rack is built from up to 1.5 mm steel sheet with a durable electrostatic powder coating in black (RAL 9005), and it features a full glass front door that keeps equipment visible while protecting it from dust and unauthorized access. The depth-adjustable 19" profile rails, pre-labeled with rack units, make equipment installation straightforward, while brush-lined cable entry points in the roof and base allow clean cable routing from above or below.

Highlights

• 7U height, 540 x 400 mm footprint, 370 mm external height
• Flat-packed design for efficient transport and easy on-site assembly
• Lockable full glass door with reversible hinge (left or right opening)
• Depth-adjustable galvanized 19" mounting rails with rack unit markings
• Brush strips in top and bottom for tidy cable entry
• Removable side panels for easy access during installation and maintenance
• Robust steel construction with 60 kg load capacity
• Passive ventilation via perforated top and bottom panels

In daily use

This SOHO wall cabinet is ideal for small network distribution points, branch offices, or home installations where floor space is limited. The glass door allows quick visual checks of LED status indicators without opening the cabinet, and the reversible hinge lets you adapt the door swing to the room layout. The included step-by-step assembly guide makes setup straightforward even for a single technician. Once mounted, the adjustable rails accommodate equipment depths from 220 mm to 340 mm, so you can install switches, patch panels, and small servers with confidence.

Full specifications

• Rack type: Wall mount rack
• Rack standard: 19-inch
• Rack capacity: 7U
• External dimensions (W x D x H): 540 x 400 x 370 mm
• Material: Steel sheet (up to 1.5 mm thick)
• Colour: Black (RAL 9005)
• Front door: Full glass, lockable (2 keys included)
• Side panels: Removable
• Load capacity: 60 kg
• Cable entry: Top and bottom with brush strips
• Mounting rails: Galvanized, depth adjustable, with U markings
• Mounting depth range: 220–340 mm
• Ventilation: Passive (perforated top/bottom)
• Protection class: IP20
• Assembly required: Yes (flat-packed, instructions included)
• Package contents: Rack components, mounting hardware, keys, assembly guide

Final note

The DIGITUS SOHO 7U wall rack combines cost-effective flat-pack shipping with the security and professional appearance of a glass-door cabinet, making it a smart choice for small network installations.
