Disipador de aire Akasa AK-CC6615BP01 Negro 600-3000 RPM Doble rodamiento de bolas

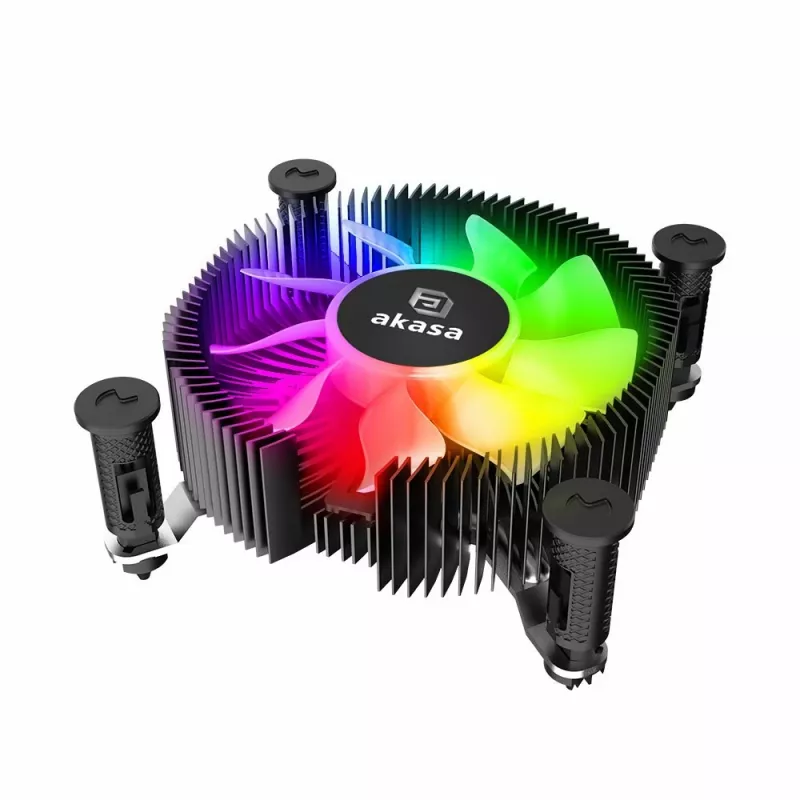

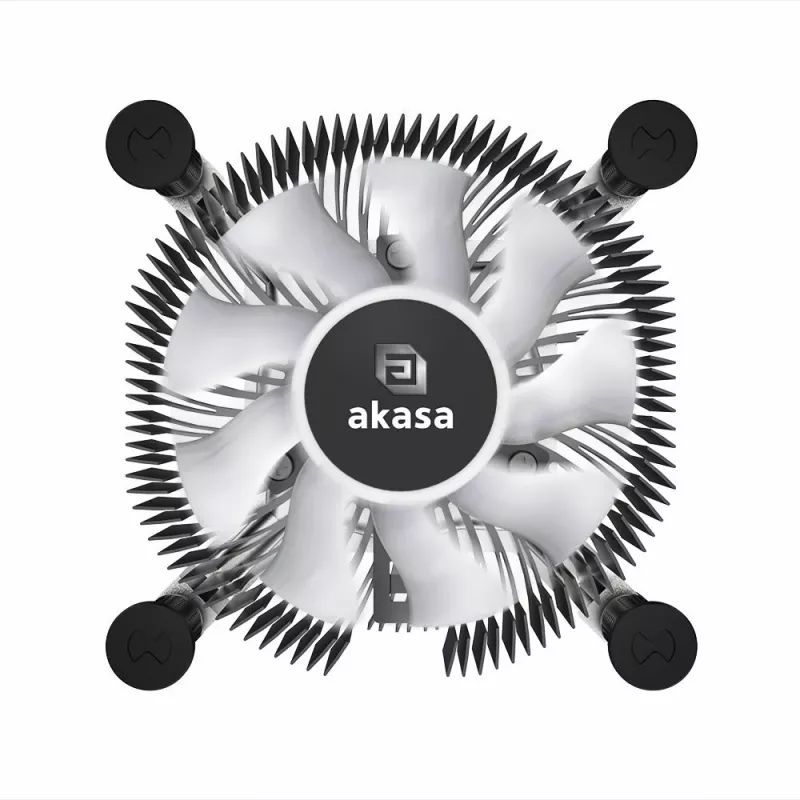

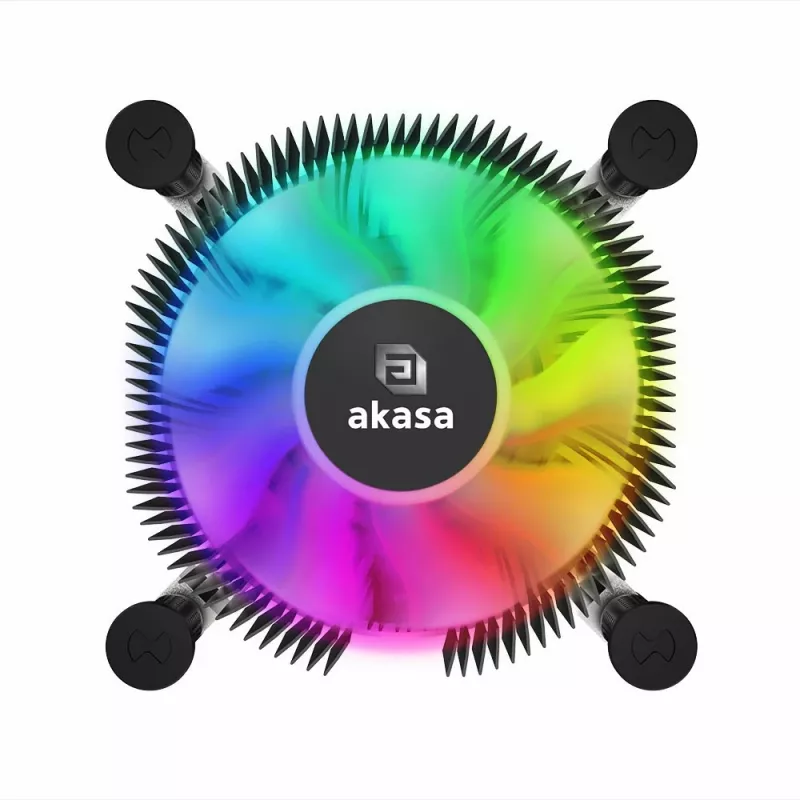

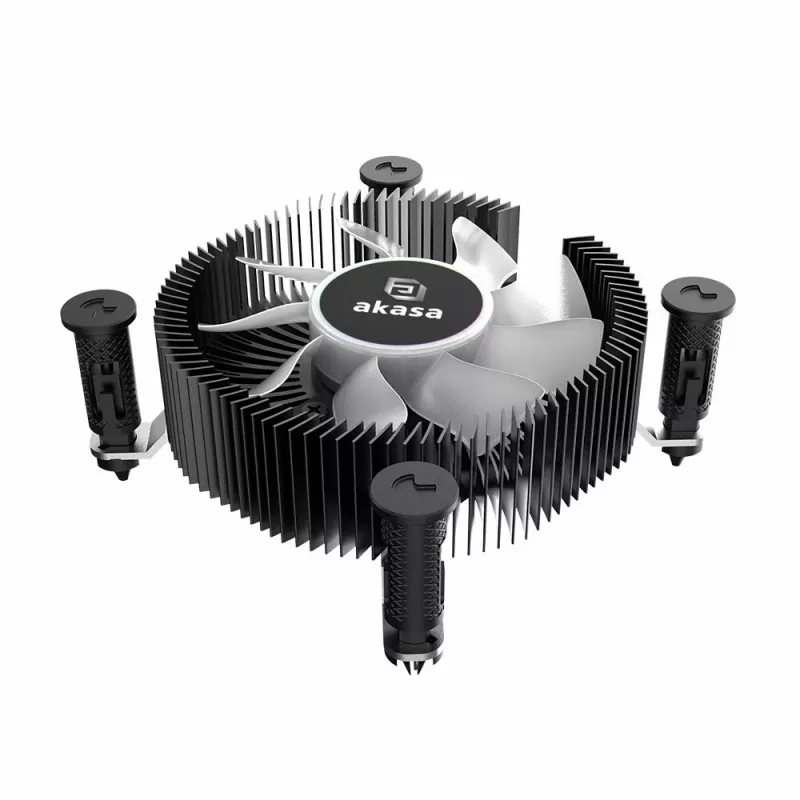

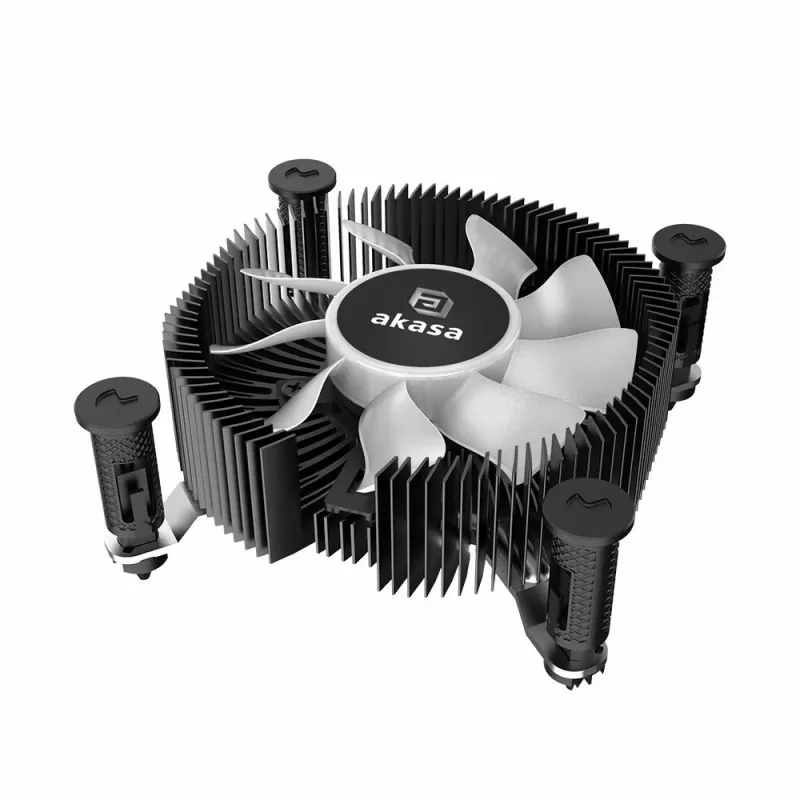

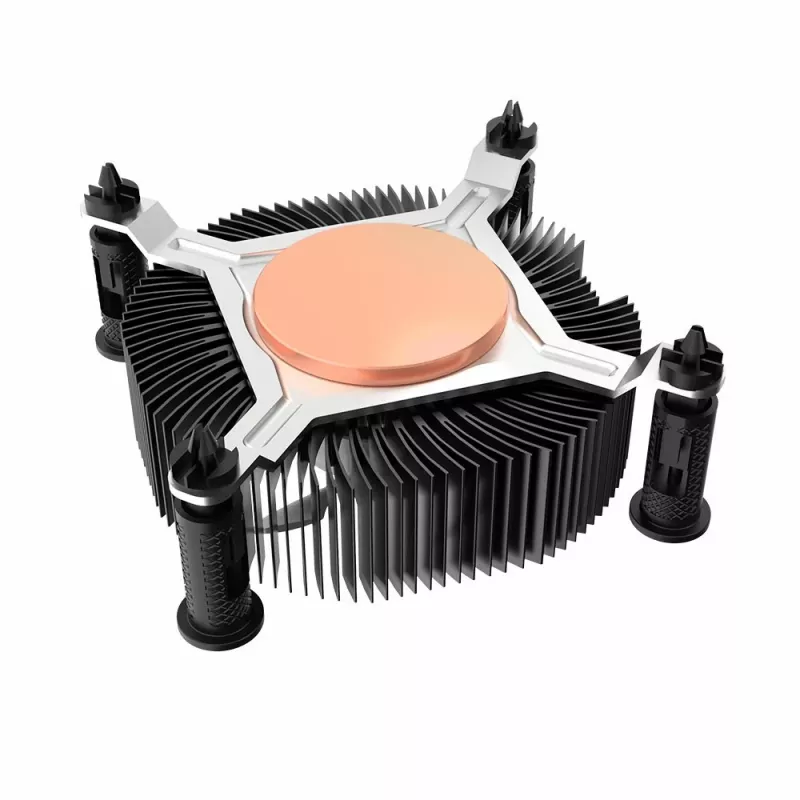

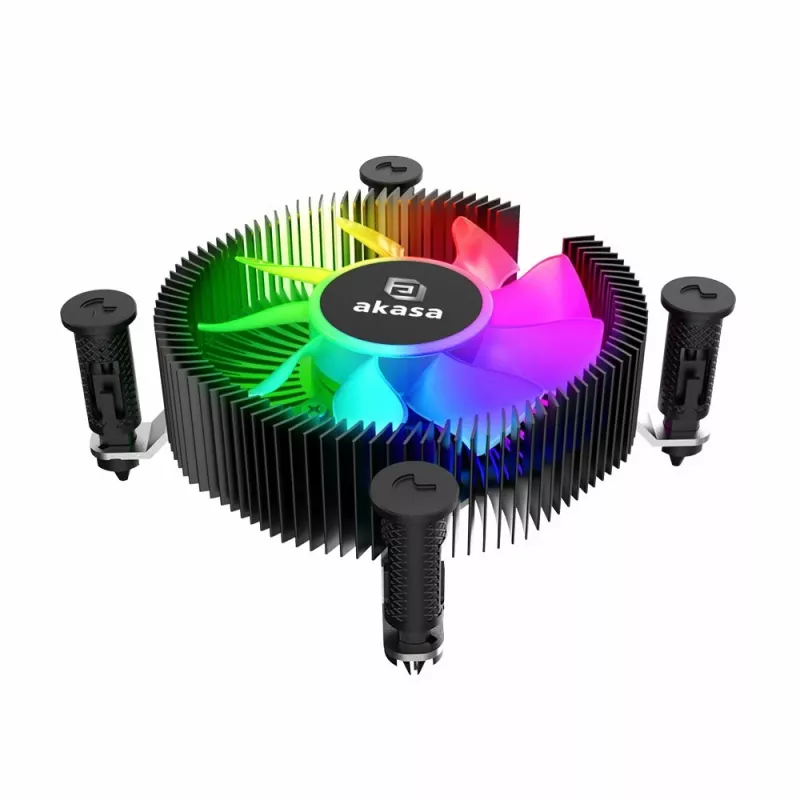

The Akasa AK-CC6615BP01 is a low-profile aRGB aluminium air cooler for Intel® LGA1700 processors. With a maximum heatsink height of 29.92 mm and support for CPUs up to 73 W TDP, it is designed for compact systems such as Mini-ITX, Micro-ATX and HTPC cases. The unit integrates a high-performance aluminium heatsink with a copper core, a pre-applied thermal interface, and an embedded aRGB fan with PWM control to balance cooling and noise.

Advantages

This cooler combines a compact low-profile design with an enlarged contact core for improved thermal transfer on LGA1700 packages, delivering up to 73 W of dissipation. The embedded PWM-controlled fan adjusts airflow to demand, while dual ball bearings and a rated fan speed range of 600–3000 RPM provide durability and flexible cooling performance. Integrated aRGB lighting with 14 LEDs and compatibility with major motherboard lighting ecosystems allows system lighting synchronisation. The pre-applied thermal interface simplifies installation.

Suitable for (tasks / use cases)

• Small Form Factor (SFF) builds: Mini-ITX and cube cases
• HTPC systems requiring low-profile cooling
• Low- to mid-power Intel LGA1700 CPUs up to 73 W TDP
• Systems where aRGB lighting synchronisation with motherboard software is desired

Key specifications

• Type: Air cooler
• Socket support: Intel® LGA1700
• Maximum TDP: 73 W
• Heatsink height: 29.92 mm
• Fan speed: 600–3000 RPM
• Bearings: Dual ball bearing
• Max air pressure: 1.81 mmH2O
• Colour: Black
• Integrated lighting: 14 aRGB LEDs, compatible with Gigabyte, Asus, Razer, MSI and ASRock

How to use

Install the cooler onto a compatible Intel® LGA1700 motherboard using the tool-free push-pin mounting system. Ensure the pre-applied thermal interface is clean and aligned with the CPU package before seating the cooler to maximise contact. Connect the fan PWM cable to the CPU_FAN header and the aRGB cable to a compatible motherboard RGB header or controller to enable lighting. Adjust fan curves in BIOS or motherboard software to balance cooling and noise according to system load.

Recommendations

For best results, use this cooler in small form factor cases with adequate airflow and pair it with CPUs that do not exceed 73 W TDP. Regularly check and clean the fan and heatsink from dust to maintain performance and longevity.
