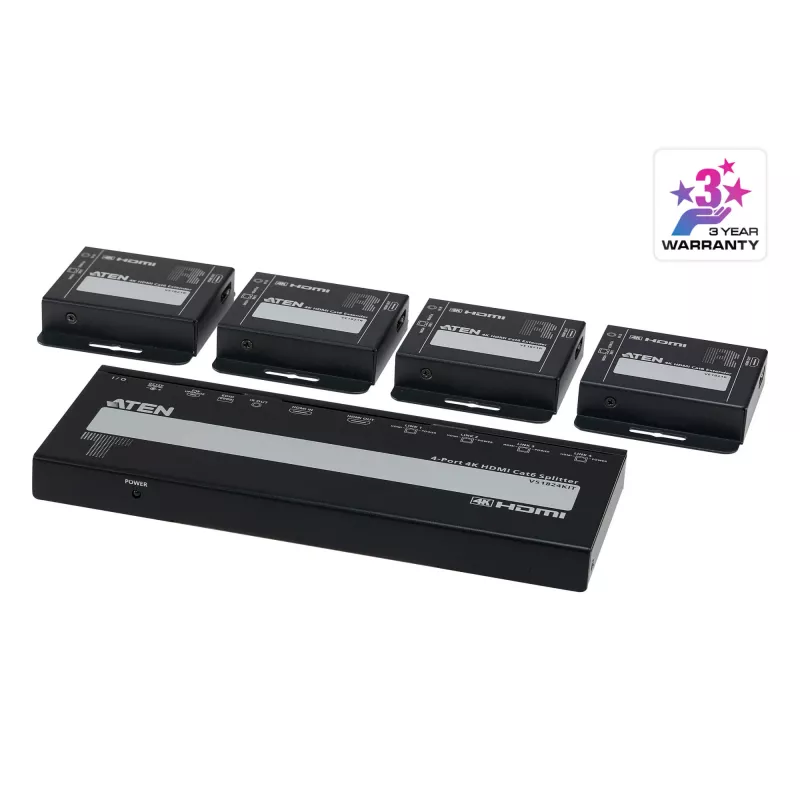

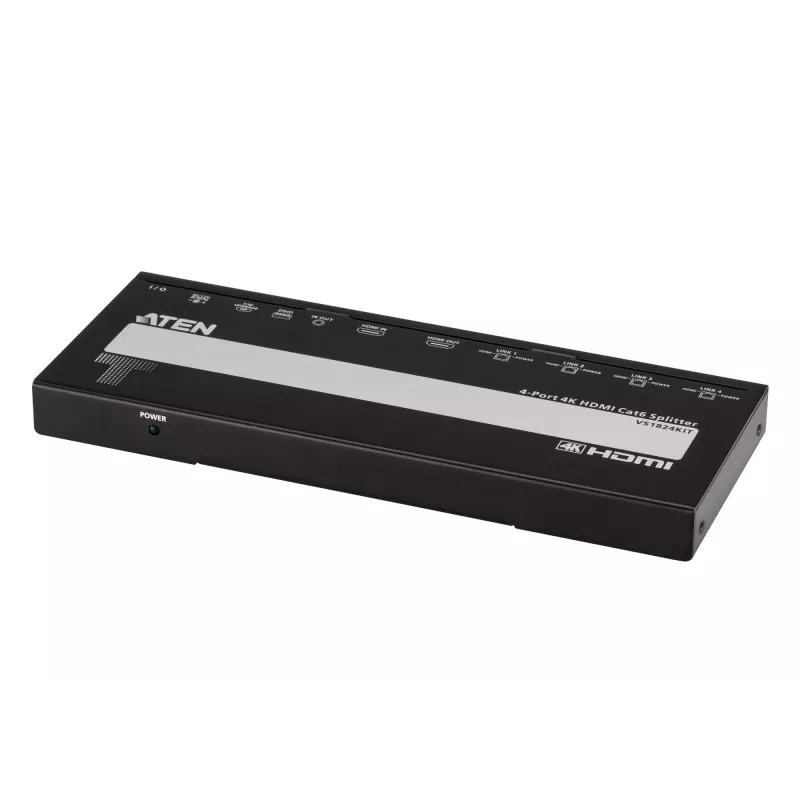

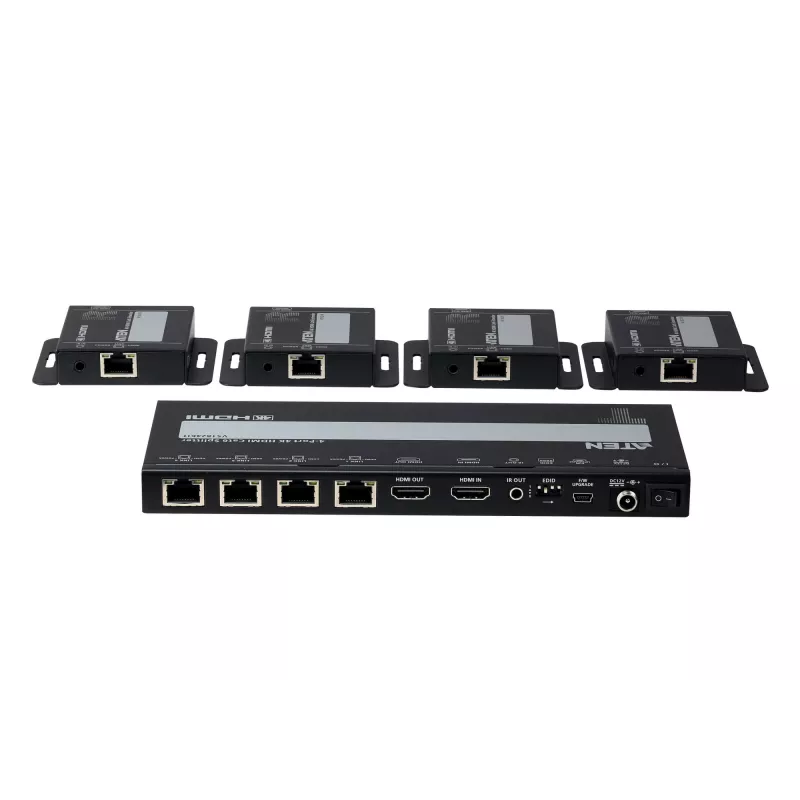

ATEN VS1824KIT Kit de splitter HDMI 4K Cat 6 de 4 puertos con 4 receptores

The ATEN VS1824KIT is a kit that includes one splitter and four receivers, distributing an HDMI source at up to 4K @ 30 Hz (4:4:4) to four displays up to 40m away via a single Cat 6 cable. It supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The splitter features Power over Cable (PoC) functionality, an HDMI local output port, and a user-adjustable EDID switch.

Key features

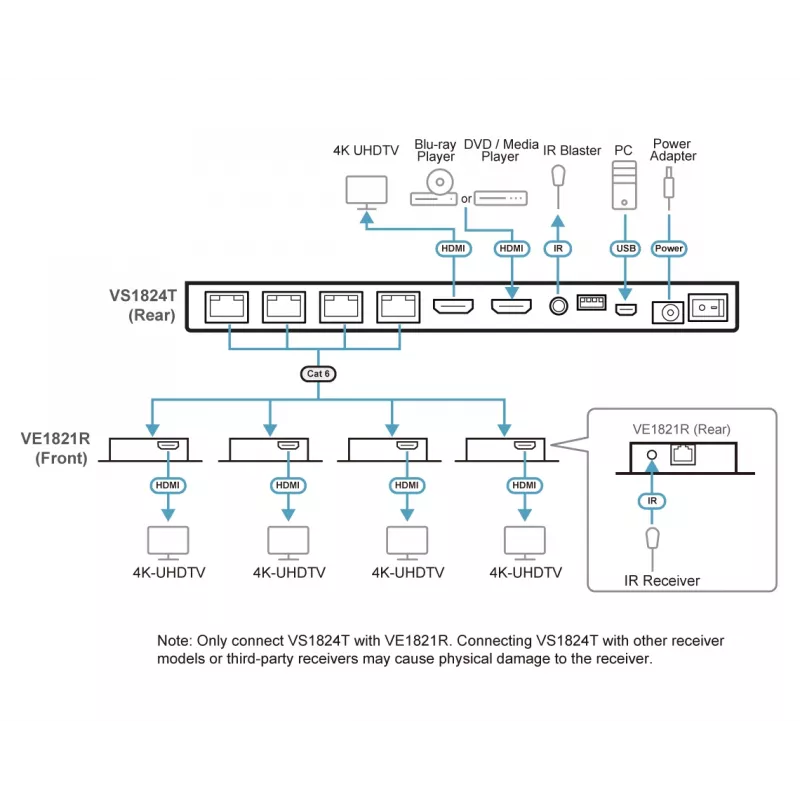

• Distributes 1 HDMI source to 4 displays up to 40m away via a single Cat 6 cable
• Supports up to 4K @ 30 Hz (4:4:4)
• Supports lossless digital audio formats: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio
• HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
• Power over Cable (PoC) functionality from splitter to receivers
• HDMI local output port on splitter for content monitoring or cascading
• User-adjustable EDID switch on splitter

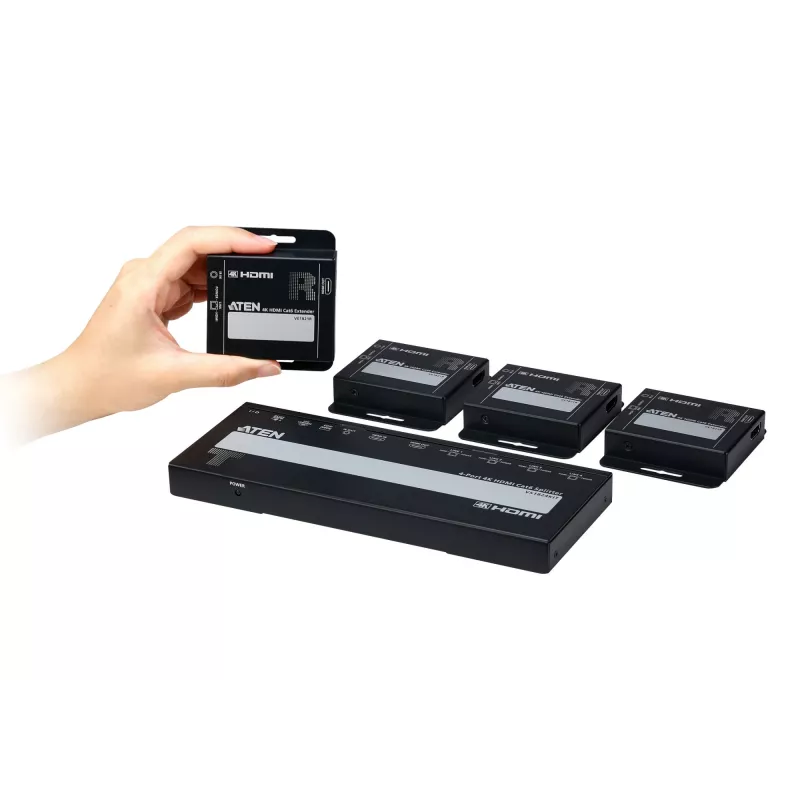

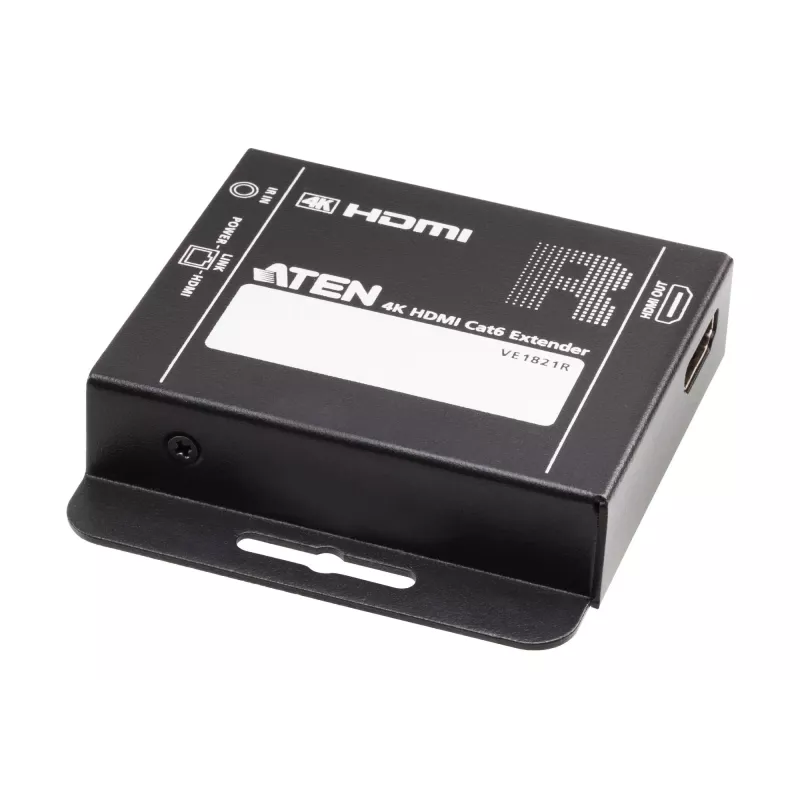

• VE1821R's ultra lightweight, palm-sized case enables flexible installation
• One-way IR channel for remote control of the source device from the receiver side
• Built-in 4KV/8KV ESD protection
• Plug-and-play – no additional software needed

Specifications

• Brand: ATEN
• MPN: VS1824KIT

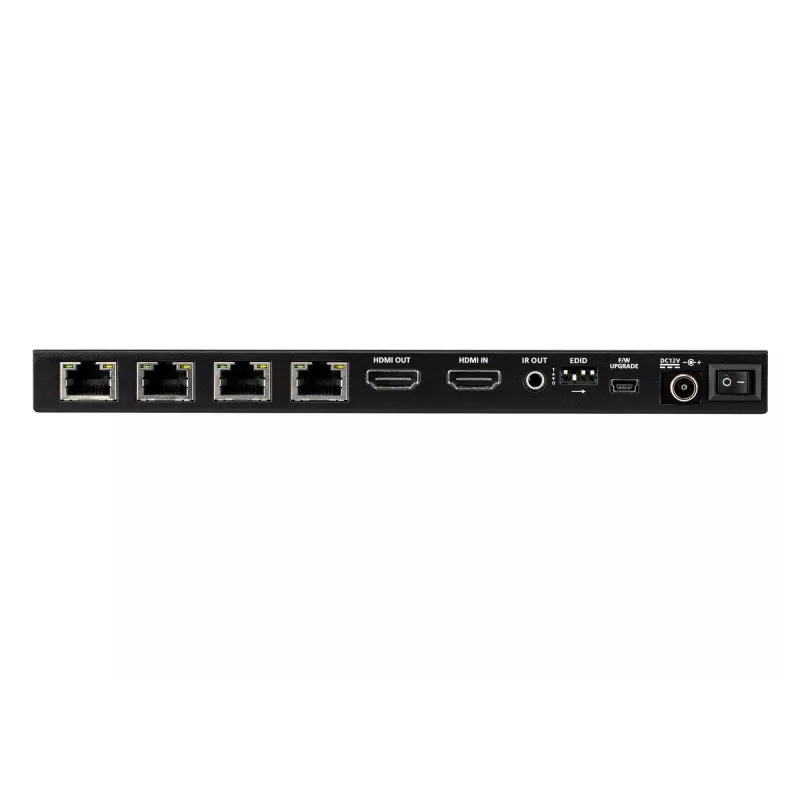

• Video input: 1 x HDMI Type A Female (Black)
• Video output: 1 x HDMI Type A Female (Black)
• Max. data rate: 10.2Gbps (3.4Gbps per lane)
• Max. pixel clock: 340 MHz
• Max. resolutions / distance: Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)
• 4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
• Audio input: 1 x HDMI Type A Female (Black)
• Audio output: 1 x HDMI Type A Female (Black)
• IR channel: 1 x Mini Stereo Jack Female (Black)
• Unit to unit: 4 x RJ-45 Female
• Power: 1 x DC Jack (Black) with locking
• Maintenance: Micro USB for F/W upgrade
• Switches: Mode Switch, EDID Mode Selection

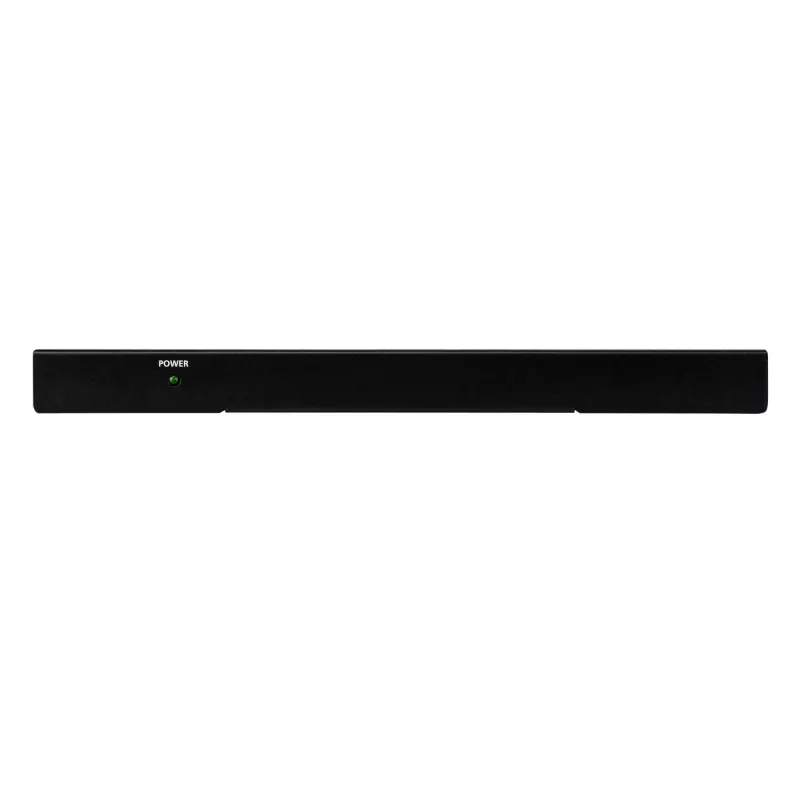

• Power: Power ON/OFF
• Power consumption: 11W
• Package contents: 1 x VS1824T 4-Port 4K HDMI Cat 6 Splitter, 4 x VE1821R 4K HDMI Cat 6 Receivers, 1 x IR blaster cable, 4 x IR receiver cables, 1 x mounting kit, 1 x power cord and power adapter, 1 x user instructions
