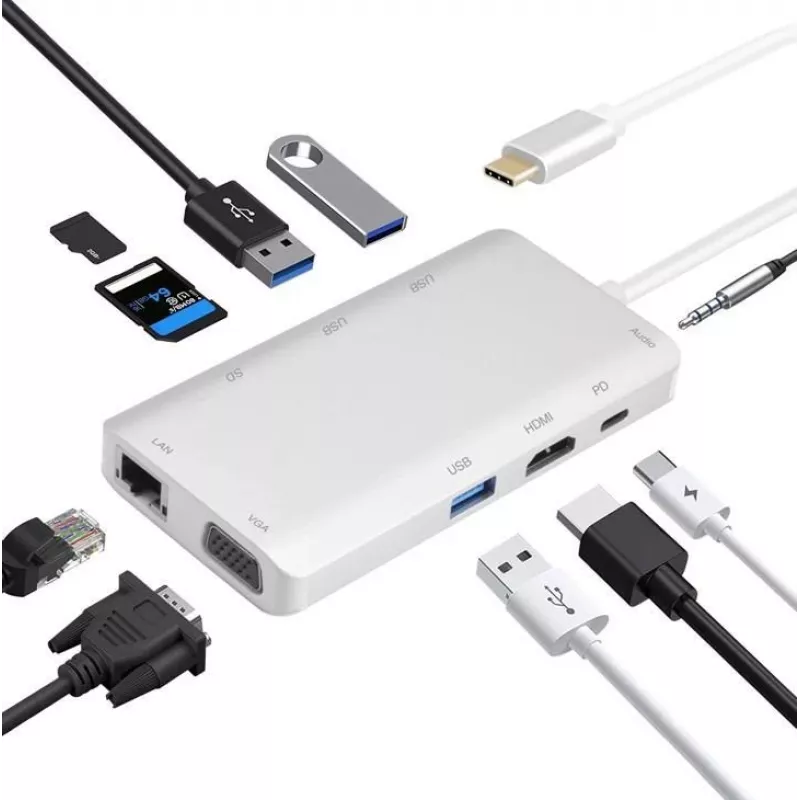

Docking station helos 304265 USB 3.1 Type-C con HDMI, VGA, USB y LAN

The helos 304265 is a USB 3.1 Type-C docking station that expands connectivity for laptops and other compatible devices. It offers HDMI and VGA video outputs, multiple SuperSpeed USB 3.0 ports, an RJ-45 Gigabit Ethernet port and audio line-out, all in a silver enclosure. The dock supports HDMI output up to 3840 x 2160 at 30 Hz and VGA output up to 1920 x 1080 at 60 Hz. A USB-C port with power delivery (up to 60 W) connects to the host and a USB-C 3.1 cable is included.

Advantages

The helos docking station provides a compact way to add wired LAN, external displays and peripheral connectivity to modern USB-C laptops. With both HDMI and VGA outputs it supports a wide range of monitors and projectors. Built-in Gigabit Ethernet improves network stability compared with wireless connections, while multiple SuperSpeed USB 3.0 ports allow fast data transfer for external drives and accessories. The unit’s silver finish and single-cable connection help maintain a tidy workstation.

Suitable for

• Extending a laptop to one or two external displays for presentations or office work
• Connecting USB peripherals such as external drives, keyboards and mice
• Providing reliable wired network access via Gigabit Ethernet
• Using older VGA projectors or monitors alongside newer HDMI displays

Key specifications

• Product type: Docking station
• Docking interface: USB-C 3.1 (host connection)
• Video outputs: 1 x HDMI (19-pin Type A) — up to 3840 x 2160 @ 30 Hz; 1 x VGA — up to 1920 x 1080 @ 60 Hz
• USB ports: 3 x SuperSpeed USB 3.0 Type-A (9-pin)
• Network: 1 x RJ-45 1000Base-T (Gigabit Ethernet)
• Audio: 1 x line-out 3.5 mm stereo
• Power delivery: USB-C with power delivery up to 60 W to host
• Card slots: 1 x SD, 1 x microSD
• Color: Silver
• Included cable: 1 x USB-C 3.1 cable

How to use

Connect the included USB-C 3.1 cable from the dock’s USB-C host port to a compatible USB-C port on your laptop. Connect external displays to the HDMI and/or VGA ports as required and plug peripherals into the SuperSpeed USB 3.0 Type-A ports. For wired network access, connect an Ethernet cable to the RJ-45 port. Use the line-out jack for external speakers or headphones. If your laptop supports USB-C power delivery, the dock can pass up to 60 W to charge the host device while connected.

Recommendations

For best video performance, use the HDMI port for high-resolution displays (up to 4K @ 30 Hz) and the VGA port for legacy monitors or projectors. Ensure your laptop’s USB-C port supports video output (DisplayPort Alt Mode) and power delivery if you intend to charge the laptop through the dock.
