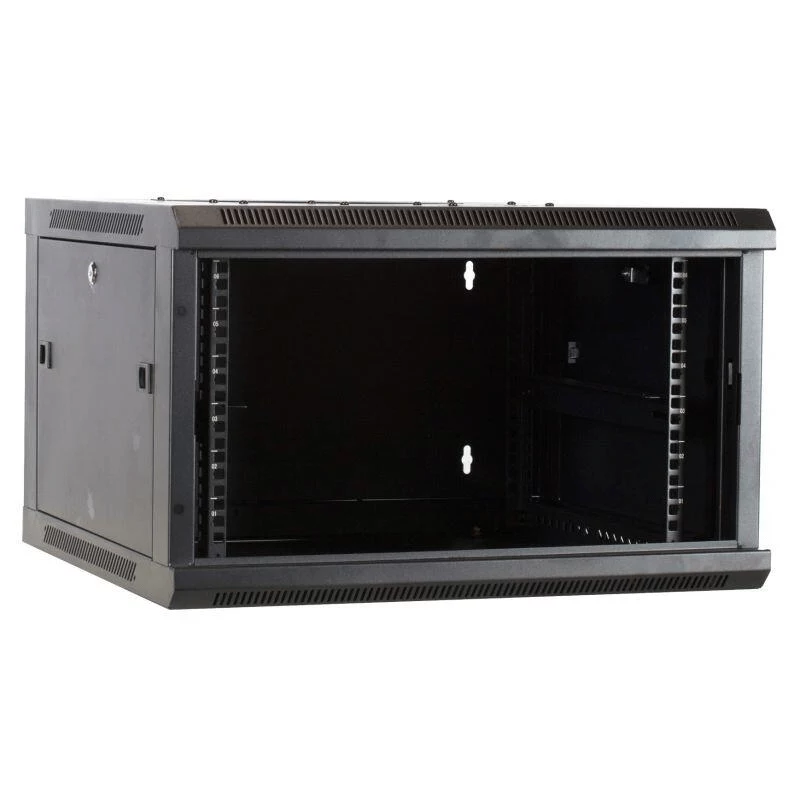

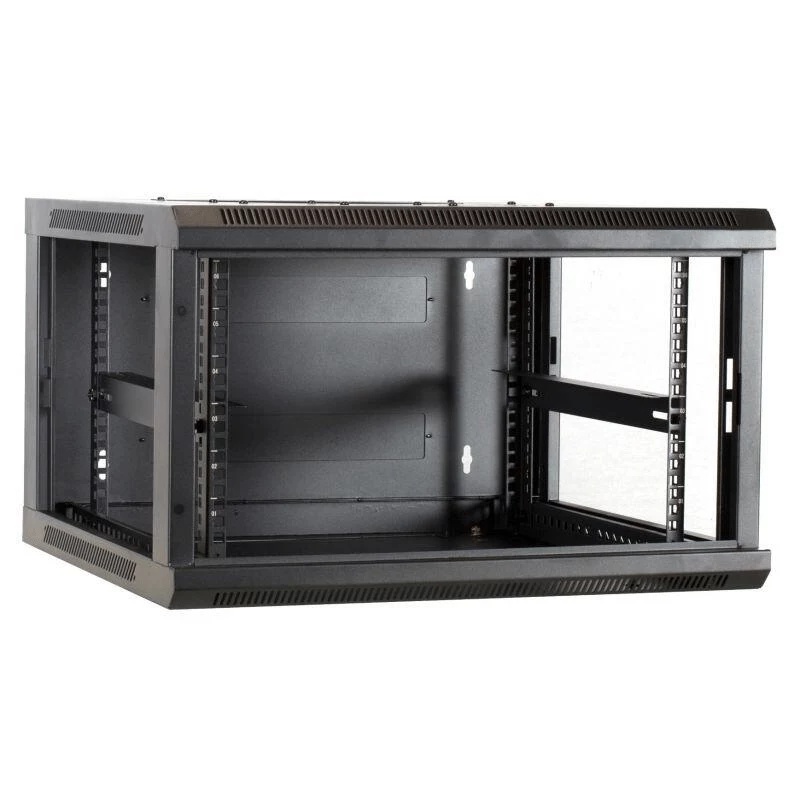

DSIT Armario de servidores de pared 6U con puerta metálica 600x600x367 mm

For installations where floor space is at a premium, the DSIT DS6606M delivers a secure, wall-mounted 6U enclosure that keeps 19-inch equipment protected and easily accessible. Its solid metal door and lockable design set it apart from open-frame racks, while the compact 367 mm depth suits shallow networking devices, patch panels, and small servers.

Highlights

• 6U wall-mount cabinet with solid, lockable metal front door
• 600 mm width and 600 mm depth accommodate standard 19-inch gear
• SPCC cold-rolled steel with durable black powder coating
• Supports up to 60 kg of equipment load
• Top and bottom cable entry knockouts for clean routing

In daily use

Mount the DS6606M on a wall in a workshop, office, or utility room to consolidate active components and patch panels. The 180-degree opening front door provides unobstructed access during installation and maintenance, and the included 19-inch rails, cage nuts, and screws allow immediate equipment mounting. Passive ventilation slots help maintain airflow, while the fixed side panels keep dust and unauthorized access at bay.

Full specifications

• Rack capacity: 6U
• External dimensions (W x D x H): 600 x 600 x 367 mm
• Rack standard: 19-inch
• Material: SPCC cold-rolled steel
• Surface finish: Powder coated, black (RAL 9005)
• Maximum weight capacity: 60 kg

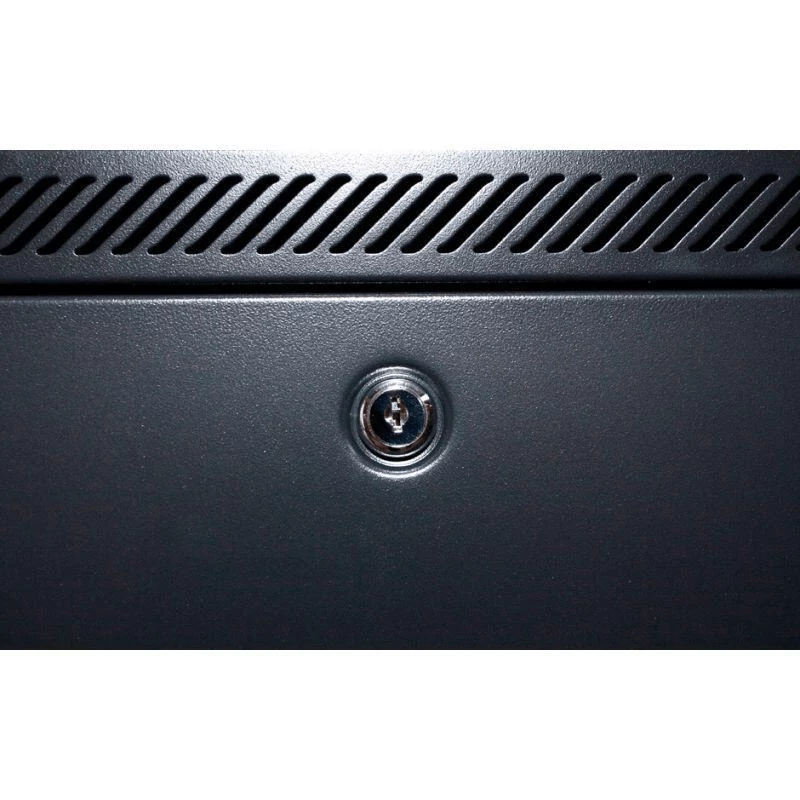

• Door type: Solid metal, lockable, 180° opening
• Side panels: Fixed
• Cable entry: Top and bottom with knockouts
• Ventilation: Passive slots
• Protection rating: IP20
• Included accessories: 19" mounting rails, cage nuts & screws, keys
• Compliance: RoHS, CE

Final note

The DSIT DS6606M is a practical choice for small-scale IT deployments, combining security, durability, and easy installation in a space-saving wall-mount format.
