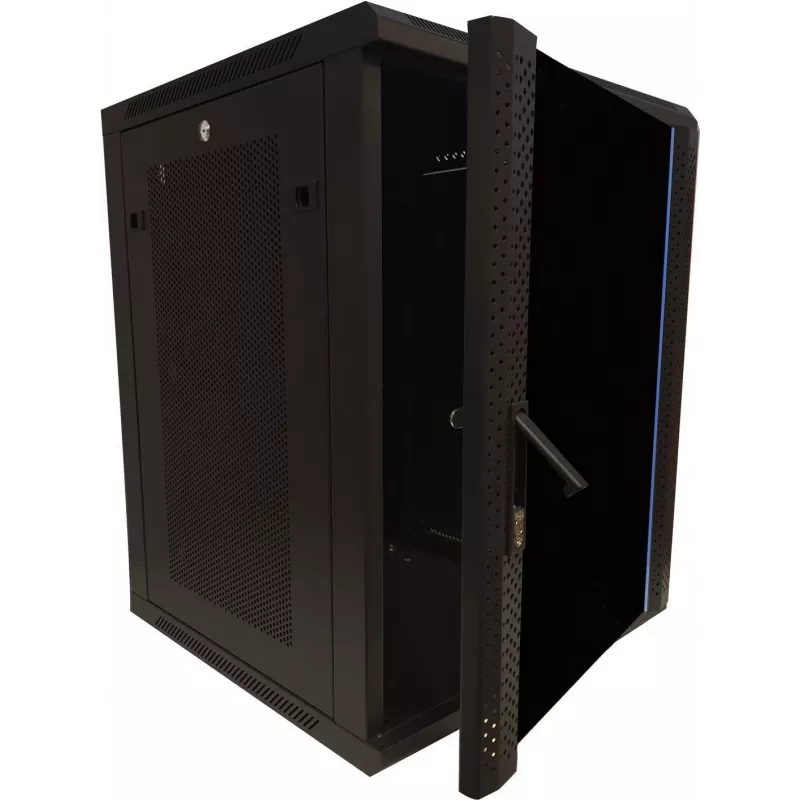

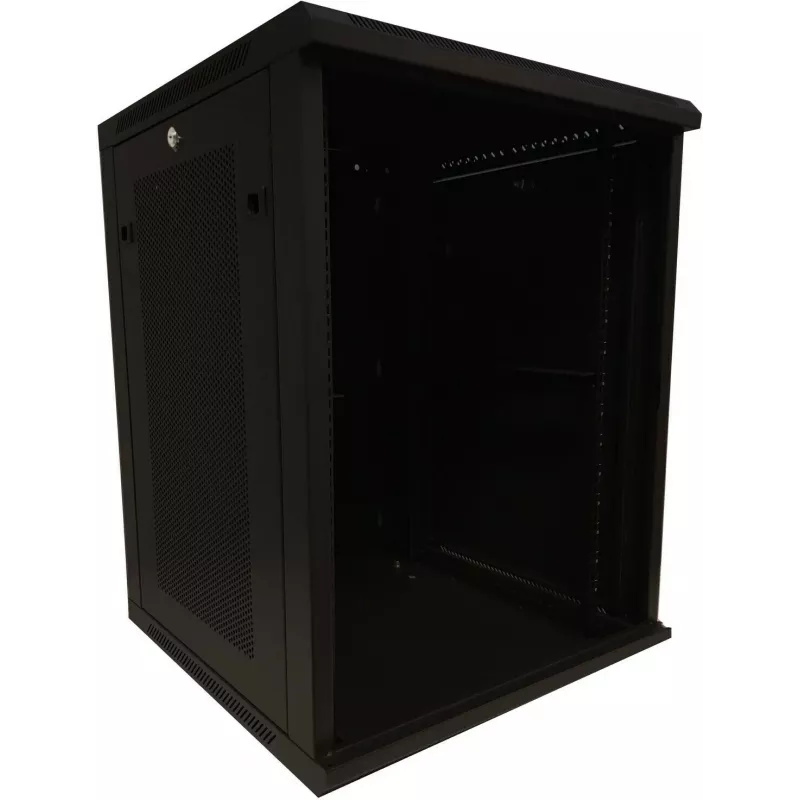

DSIT armario rack servidor de pared 15U 19" con puerta de cristal y laterales perforados 600x600x770 mm

Managing IT equipment in constrained spaces often means compromising on security or accessibility. The DSIT 15U wall-mount rack cabinet solves this by providing a secure, ventilated enclosure that mounts directly to the wall, keeping your 19" servers, switches, and patch panels organized and protected without consuming valuable floor space.

Who is it for

This cabinet is ideal for small offices, retail back rooms, classrooms, or any environment where floor space is limited but reliable equipment housing is essential. It suits IT administrators, network installers, and facility managers who need a durable, lockable solution for edge computing or structured cabling.

Main features

• 15U height accommodates a range of 19" rack-mount equipment, from patch panels to small servers.
• Tempered glass front door provides clear visibility of equipment status LEDs while protecting against unauthorized access.
• Perforated, removable side panels promote passive airflow, helping to keep equipment cool without additional fans.
• Adjustable front and rear mounting rails allow precise positioning of equipment with varying depths.
• Lockable front door and side panels (keys included) secure your hardware against tampering.
• Sturdy SPCC cold-rolled steel construction with black powder coating (RAL 9005) ensures durability and a professional appearance.
• Top and bottom cable entry points with knockouts simplify cable routing and management.
• Wall-mounting hardware included for straightforward installation on solid walls.

Specifications

• Rack capacity: 15U
• Rack standard: 19"
• External dimensions (W x D x H): 600 x 600 x 770 mm
• Material: SPCC cold-rolled steel
• Surface finish: Powder coated, black (RAL 9005)
• Front door: Tempered glass, lockable
• Side panels: Perforated, removable, lockable
• Mounting rails: Adjustable, front and rear
• Cable entry: Top and bottom
• Ventilation: Passive (perforated sides)
• IP protection class: IP20
• Included accessories: Keys, wall mounting hardware

Tips

Before mounting, verify that the wall can support the combined weight of the cabinet and installed equipment. Use a level to ensure proper alignment, and leave sufficient clearance around the cabinet for cable access and airflow. For optimal thermal performance, avoid blocking the perforated side panels.
