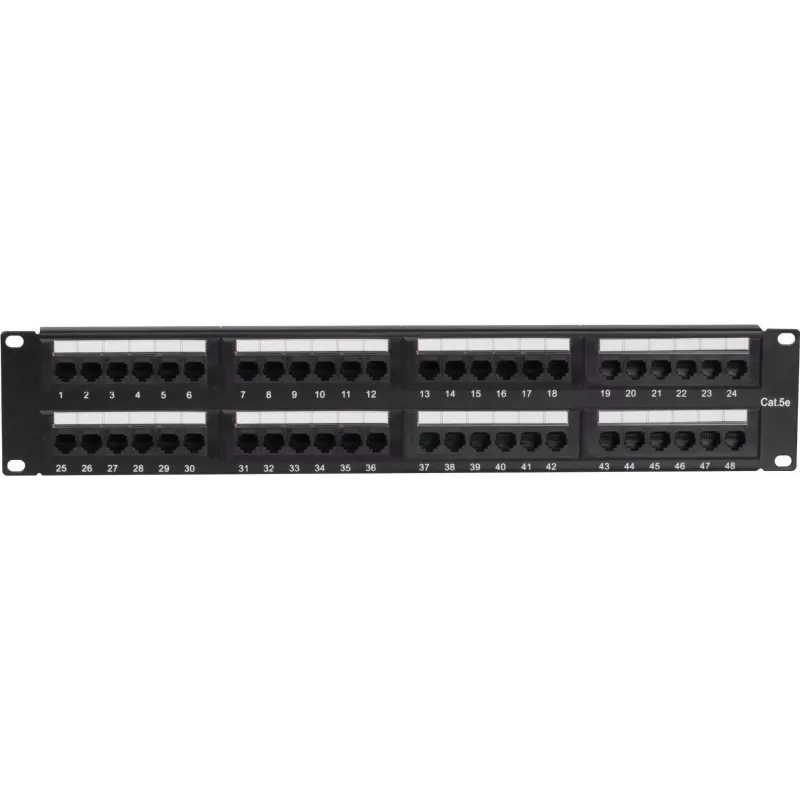

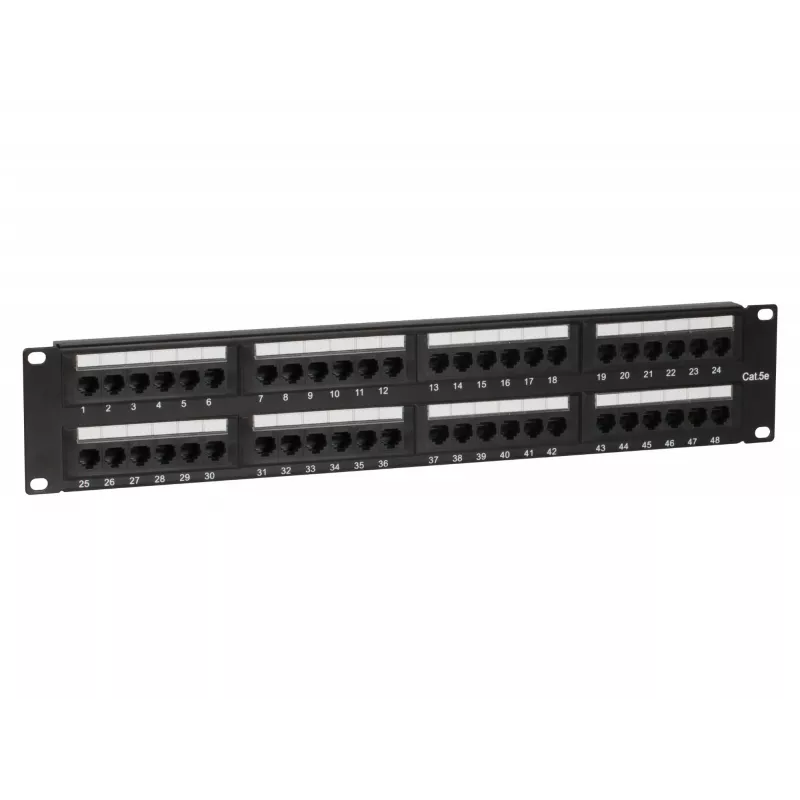

DS-IT panel de parcheo de red CAT 5e UTP, 19" , 48 puertos (DS-Patch5-48UTP)

For network administrators and IT installers managing high-density cabling in server rooms or data centres, the DSIT DS-IT CAT 5e UTP Patch Panel offers a reliable 48-port termination point in a standard 19-inch rack. This 2U panel streamlines cable organisation and simplifies moves, adds, and changes.

Key specifications

• Category 5e performance, supporting Gigabit Ethernet (1000BASE-T) with 100 MHz bandwidth

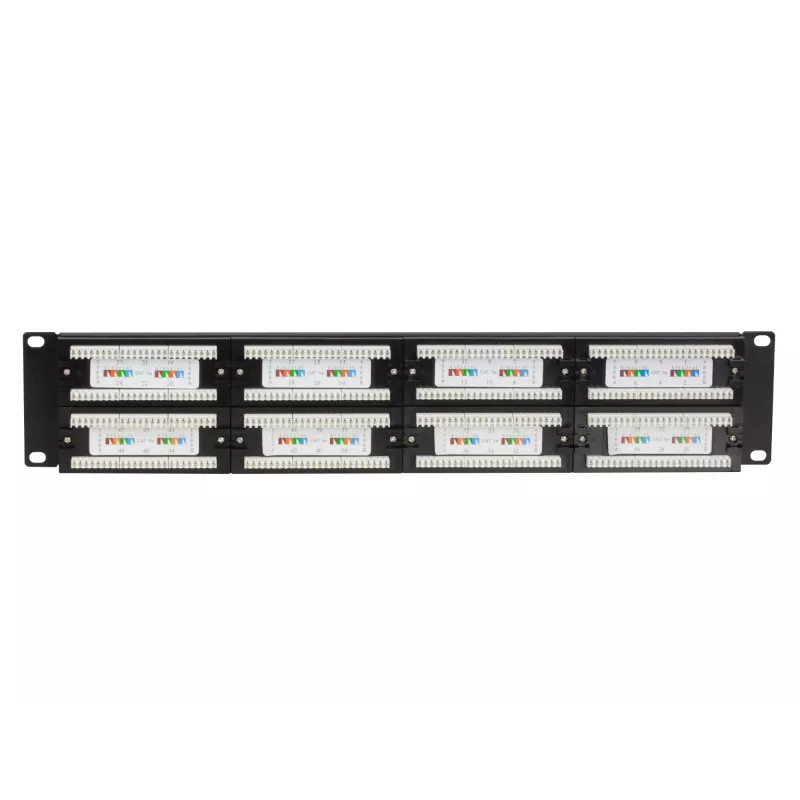

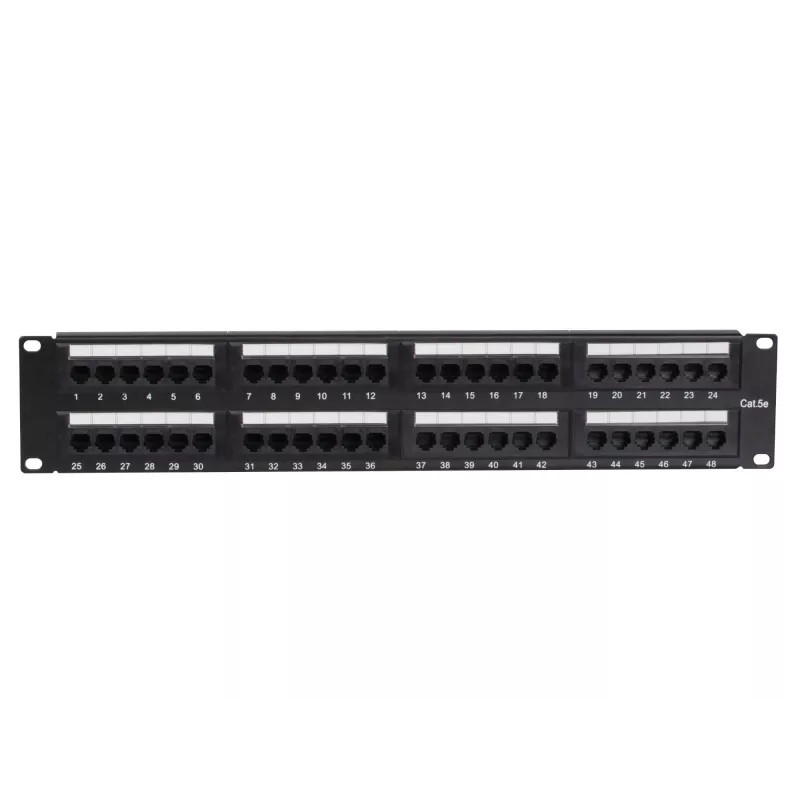

• 48 RJ45 ports on the front, with colour-coded IDC termination blocks on the rear for TIA/EIA 568A/B wiring
• Unshielded twisted pair (UTP) design, ideal for environments with low electromagnetic interference
• 19-inch rack-mountable, 2U height, with sturdy steel housing in black
• Compatible with 22–26 AWG solid or stranded copper cables
• Compliance: RoHS, CE; operating temperature range -10°C to 60°C

Why choose it

This patch panel delivers dependable Cat 5e connectivity in a compact, high-density form factor. The steel construction ensures durability, while the clear labelling areas and colour-coded IDCs speed up installation and reduce wiring errors. It is a cost-effective solution for structured cabling systems that do not require shielded components.

Ideal use cases

• Enterprise LANs and SMB networks needing a central patching point for 48 drops
• Data centres and server rooms where rack space is at a premium
• Educational and government facilities upgrading legacy cabling to Cat 5e
• IP surveillance or VoIP deployments using unshielded cabling

Good to know

The panel includes cable management features and is designed for quick installation with standard 19-inch racks. It does not include RJ45 jacks or cables; those are sold separately. The UTP design is not recommended for environments with high EMI or where grounding is required.
