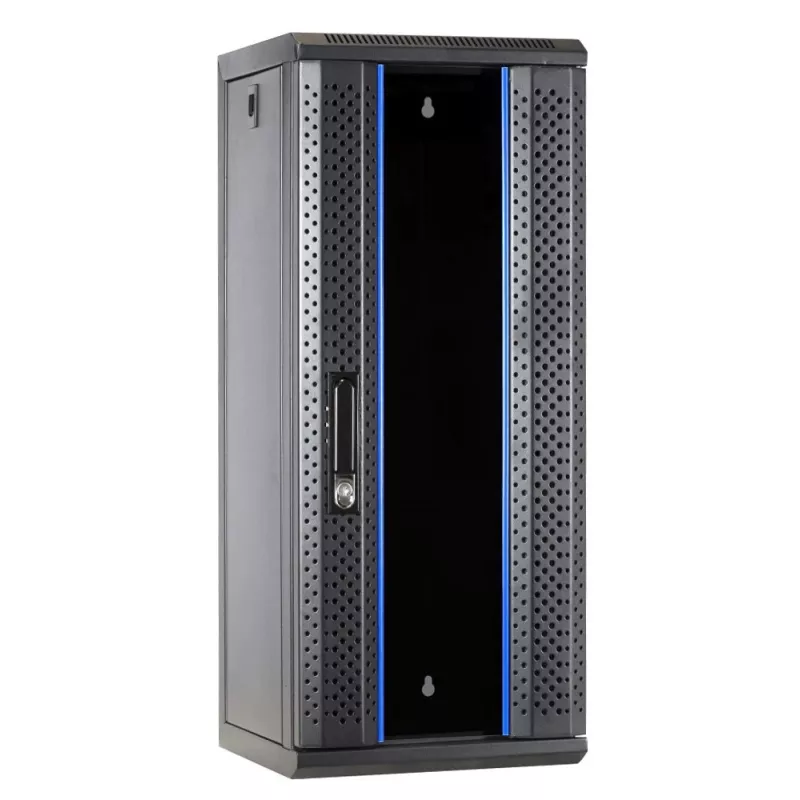

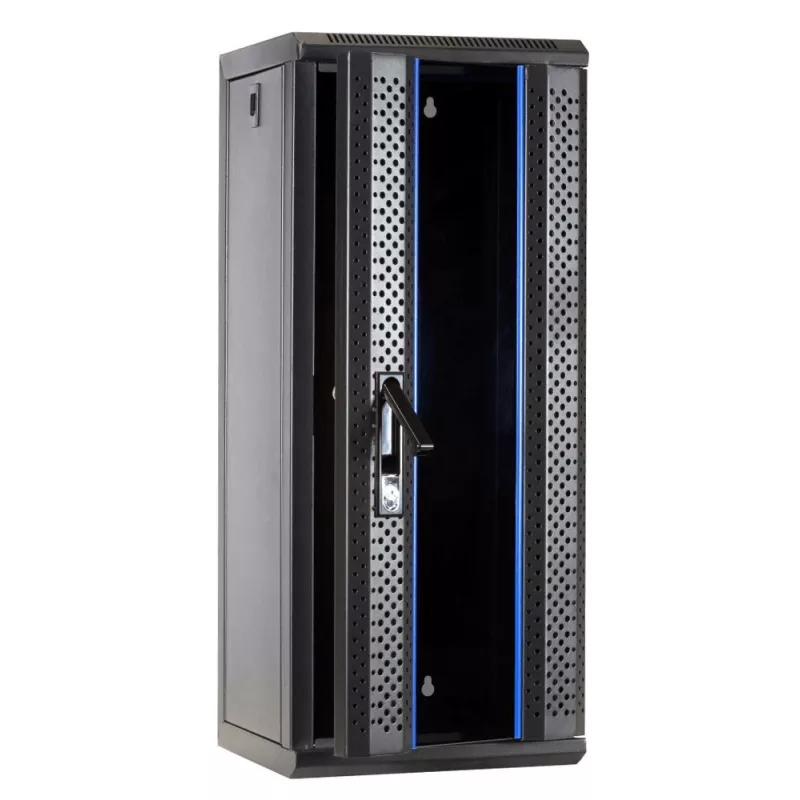

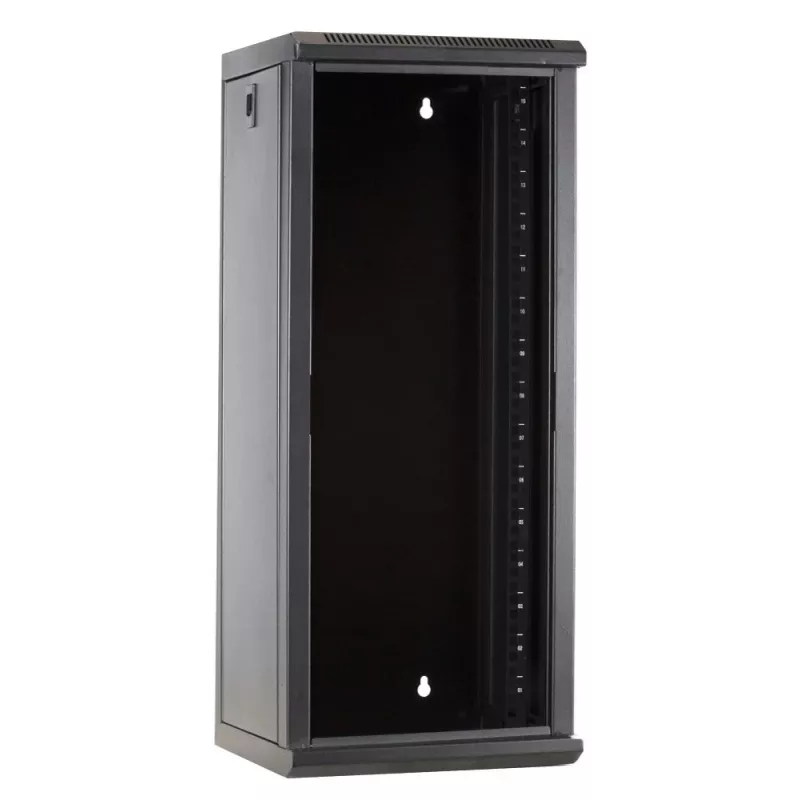

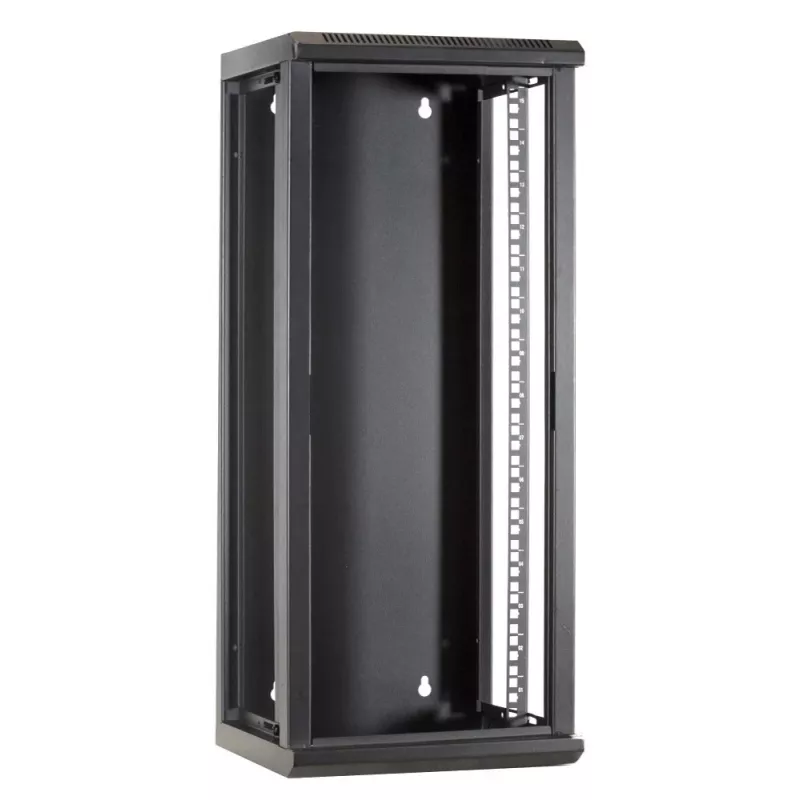

DSIT DS10-3315 armario rack de pared 15U 10 inch con puerta de cristal, 312x310x752 mm, negro

Network administrators and IT technicians working in compact offices or branch locations often need a secure, space-efficient enclosure for 10-inch networking equipment. The DSIT DS10-3315 answers that need with a 15U wall-mount cabinet that combines a tempered glass front door, lockable access, and a sturdy steel frame in a footprint of just 312 x 310 mm. Mount it on a wall to keep switches, patch panels, and small servers organized, protected, and out of the way.

Key specifications

• Rack capacity: 15U, 10-inch standard
• External dimensions (W x D x H): 312 x 310 x 752 mm
• Front door: tempered glass, lockable
• Material: SPCC cold rolled steel, powder coated
• Colour: black (RAL 9005)
• Mounting: wall mount
• Cable entry: top and bottom
• Side panels: fixed
• Ventilation: passive slots

Why choose it

This cabinet is built for reliability and ease of use. The welded steel frame provides excellent rigidity, while the powder-coated finish resists scratches and corrosion. The tempered glass door allows quick visual monitoring of equipment status without opening the cabinet, and the key lock prevents unauthorized access. With top and bottom cable entry points, you can route cabling neatly and keep your installation looking professional.

Ideal use cases

• Small office network closets
• Retail back rooms with limited floor space
• Industrial control panels requiring secure enclosures
• Home labs with 10-inch networking gear

Good to know

The cabinet includes adjustable mounting rails for flexible equipment placement. Passive ventilation slots ensure adequate airflow for most low-power devices. Note that the maximum weight capacity is not specified by the manufacturer; please verify load requirements before installation. Assembly is straightforward, and the cabinet can be mounted on any solid wall surface using appropriate anchors (not included).
