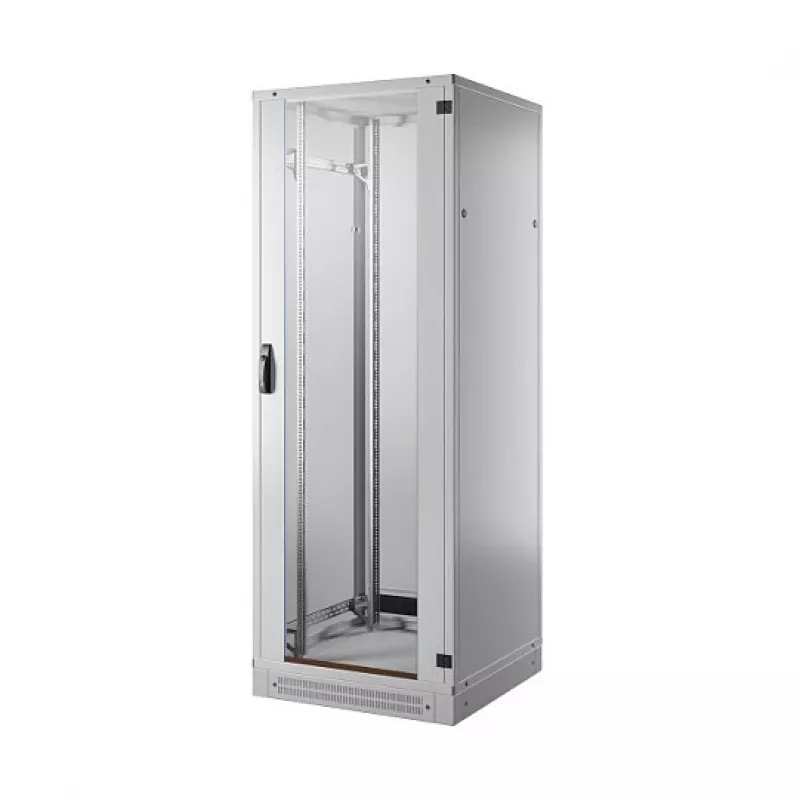

EFB armario de red de 19 pulgadas Set PRO 42U, 800x1000 mm, RAL7035, unidad de techo con 4 ventiladores, alimentación + zócalo

Data center technicians and network administrators often face the challenge of housing high-density server and networking equipment in a secure, organized, and scalable enclosure. The EFB PRO 42U Network Cabinet Set addresses this with a robust 19-inch rack that combines a spacious 800x1000 mm footprint with a 42U mounting height, accommodating a wide range of switches, patch panels, and servers. Whether you are setting up a new server room or upgrading an existing one, this cabinet provides the structural integrity and flexibility needed for professional installations.

Key specifications

• Rack type: 19-inch freestanding network cabinet
• Rack units: 42U
• External dimensions: 800 mm width x 1000 mm depth x 2053 mm height (with plinth)
• Colour: Light grey (RAL 7035)
• Material: Steel sheet
• Protection class: IP20
• Static load capacity: 800 kg
• Front door: Safety glass door with steel frame, lockable
• Rear door: Steel door, lockable, with 4-point locking
• Side panels: Removable and lockable

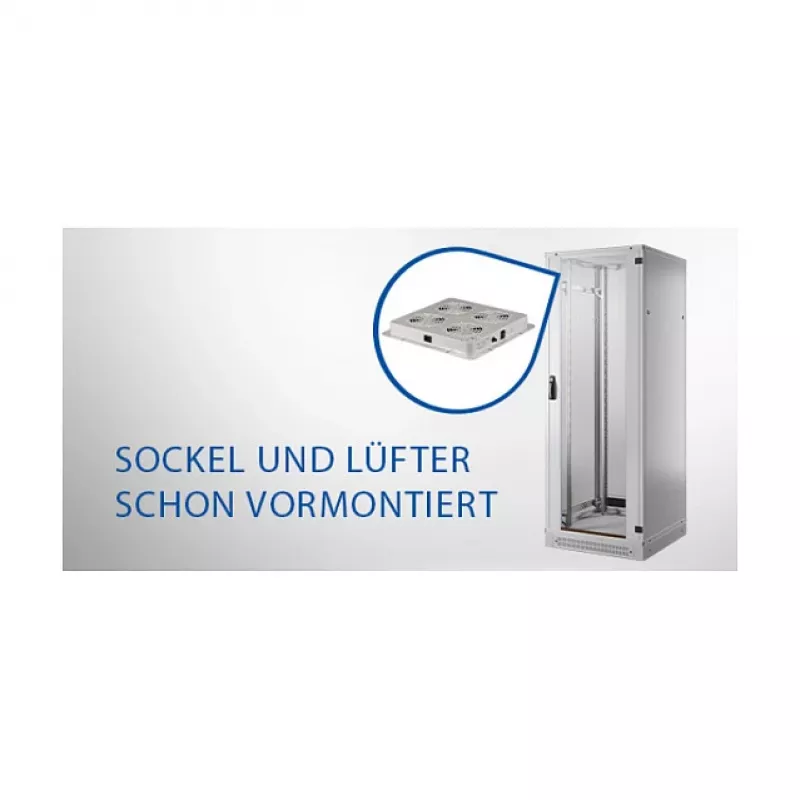

• Ventilation: 4-fan roof unit for active air circulation
• Power distribution: 8-way Schuko PDU with aluminum profile
• Included plinth height: 100 mm
• Cable entry: Top and bottom
• Mounting profiles: Front and rear, adjustable depth
• Leveling feet and castors included
• Delivery: Disassembled (flat pack)

Why choose it

This cabinet set stands out for its comprehensive feature set. The combination of a lockable glass front door and a solid steel rear door with multi-point locking ensures both visibility and security. The integrated 4-fan roof unit actively dissipates heat, protecting sensitive equipment. The included 8-way PDU simplifies power distribution, while the adjustable mounting profiles allow for flexible equipment installation. With a static load capacity of 800 kg, it can handle heavy server loads. The package also includes a plinth and leveling feet/castors, offering immediate setup convenience.

Ideal use cases

• Server rooms and data centers requiring high-density rack mounting
• Network infrastructure for enterprise, education, or government facilities
• Telecommunications and IT installations needing organized cable management
• Secure housing for critical network devices with controlled access

Good to know

The cabinet is delivered disassembled for compact shipping and requires assembly. It is designed for freestanding use and includes both leveling feet and castors for mobility or stability. The RAL 7035 light grey finish offers a neutral, professional appearance. The IP20 protection rating indicates protection against solid objects larger than 12 mm, but it is not waterproof. Ensure proper ventilation in the installation environment to complement the roof fans.
